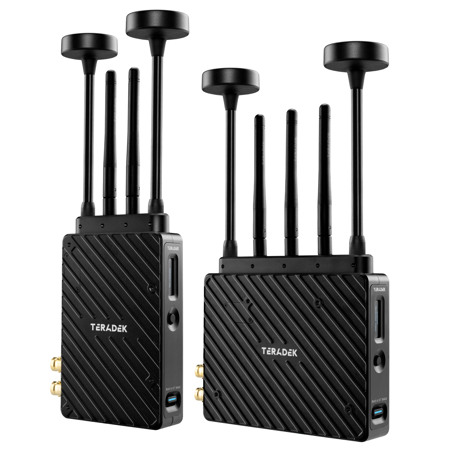

Teradek Bolt 6 XT MAX 5000 12G-SDI/HDMI Wireless Transmitter and Receiver Deluxe Kit, Gold Mount, 5000' Range

SKU: TE102320G MFR: 10-2320-G
Earn VIP Reward Points

Key Features

  • Experience stable signal wireless video with Bolt 6 XT MAX, up to 5000' range.
  • Achieve high resolution video transmission with 12G-SDI and HDMI I/O.
  • Enjoy low latency (<0.001 sec) for real-time monitoring on set.
  • Set up quickly with this wireless transmitter and receiver deluxe kit.
  • Transmit reliably with AES-256 encryption for secure video feeds.
  • Affordable price for professional-grade wireless video broadcast equipment.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Teradek Bolt 6 XT Specifications

Includes

Includes

Jump to...
  • Additional Included Items

    2x Ultra Thin HDMI Male Type-A (Full) to HDMI Male Type-A (Full) Cable
    5x RP-SMA Female to RP-SMA Female Cable
    2x 18" 12G-SDI BNC to BNC Cable
    6' PSU 2-Pin Connector to 30W AC Adapter (Int) Cable
    5x Standard Antenna
    4x Mushroom Antenna
    Wooden Camera Universal Ultra Arm Monitor Mount (Combo 1/4-20 & 3/8-16/5")
    3.28' USB 2.0 Type-A Male to USB Type-C Male Cable
    4x Bolt 6 XT Battery Cover (Front/Rear)
    Large Case

  • Video Inputs

    Transmitter:
    12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)
    1x HDMI 2.0 Type-A receptacle

  • Video Outputs

    Transmitter:
    12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)

    Receiver:
    12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)
    1x HDMI 2.0 Type-A receptacle

  • SDI Ancillary Data Support

    Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit
    HDMI: RGB 4:4:4, 8-bit

  • Delay Tx to Rx

    <0.001sec

  • Input Cross Conversion

    Transmitter: Yes, HDMI to SDI

  • Output Video Scaling

    Receiver: Yes, Framerate and Resolution Scaling

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30/50/59.94/60
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Color Correction

    Transmitter: None
    Receiver: 17 x 17 x 17 3D LUT (supports 10-bit color)

Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

  • Audio Input

    Transmitter: Embedded SDI/HDMI Audio Input (2 Channel)

Outputs

Jump to...
  • Audio Output

    Receiver: Embedded SDI/HDMI Audio Output (2 Channel)

Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • USB Interface Functionality

    Upgrade via USB-C
    5-Pin Locking Connector CCU

  • Bluetooth

    2.4 GHz

Network

Jump to...
  • Antennas

    Transmitter:
    2x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)
    2x Mushroom Antenna

    Receiver:
    3x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)
    2x Mushroom Antenna

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230 GHz, 5.755 - 5.795 GHz, 5.945 - 6.425 GHz
    DFS Frequencies: 5.270 - 5.670 GHz

  • RF Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • RF Power

    Transmitter: 23 dbm EIRP
    Receiver: 21 dbm EIRP

  • Range

    Up to 5000' (1524m), line of sight

  • Unicast Multicast

    Can connect one Transmitter to up to 6 Receivers

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Power Consumption

    Transmitter: 20 Watts
    Receiver: 18 Watts

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

Physical

Jump to...
  • Material

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Transmitter: Multiple mounting options with 1/4"-20 and M3 holes
    Receiver: Multiple mounting options with 1/4"-20 and 3/8"-16 holes

  • Dimensions

    Transmitter: 5.20 x 3.58 x 1.06" (132 x 91 x 27mm)
    Receiver: 4.41 x 5.47 x 1.06" (112 x 139 x 27mm)

  • Weight

    Transmitter: 12.1 oz (344g)
    Receiver: 15.2 oz (430g)

  • UPC Code

    818264027288

About Teradek Bolt 6 XT

Let the Bolt 6 XT MAX 5000 12G-SDI/HDMI Wireless Transmitter and Receiver Deluxe Kit revolutionize your video and audio transmission experience. This advanced system supports 4K video transmission in real-time, leveraging Teradek's patented Zero-Delay technology. Now, with the innovative use of the less congested 6GHz wireless frequency, you can expect reduced interference and superior image quality.

The Bolt 6 XT MAX 5000 is not just a transmitter and receiver; it's a comprehensive solution designed to meet diverse production needs. It boasts a remarkable range of 5000 feet, ensuring reliable connectivity even in expansive settings. The system is equipped with fast reconnection times and an intuitive setup process facilitated by the Bolt Manager App, available for both iOS and Android.

This innovative wireless video transmission system is designed to seamlessly integrate into your setup. It features a compact, lightweight build that operates 50% quieter and cooler than its predecessor, the Bolt 4K. An integrated 5-pin USB port enables effortless wireless camera-control setup when paired with SmallHD Smart Monitors, enhancing your workflow with improved long-range wireless video mode.

The Bolt 6 XT MAX 5000 is a versatile tool, capable of passing metadata, timecode, and start/stop flags from most camera manufacturers. It offers 12 new channels for frequency adjustments, particularly beneficial in high-traffic areas. The system also provides high-end users with enhanced visibility over their connections and signals, adding confidence to the workflow regardless of the environment's challenges.

The included transmitter and receiver are cross-compatible with the entire Bolt 4K Series, offering you the flexibility to expand your workflow requirements. You can link up to 6 receivers to one transmitter, or even unlimited receivers in Broadcast Mode.

In a world where 5GHz frequency is crowded with Wifi routers, cell phones, IoT devices, and competitor wireless video systems, the Bolt 6 XT MAX 5000 stands out. It utilizes the newly opened 6GHz wireless frequency, offering faster connections, less interference, and a superior wireless experience. Although it can be set up in 5GHz Mode for backwards compatibility, the 6GHz Mode provides Bolt 6 users with a dramatically quieter wireless environment. Experience the future of wireless video and audio transmission with the Bolt 6 XT MAX 5000 12G-SDI/HDMI Wireless Transmitter and Receiver Deluxe Kit.

Teradek Bolt 6 XT Features

  • Zero-Delay wireless video (<0.001sec)
  • 6GHz Wireless Frequency
  • Bolt 4K Cross-Compatibility
  • Lightweight and Quiet
  • Built in 5-pin USB for camera control
  • Inputs: 12G-SDI, HDMI 2.0 (Transmitter Only)
  • Outputs: 12G-SDI, HDMI 2.0

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience stable signal wireless video with Bolt 6 XT MAX, up to 5000' range.
  • Achieve high resolution video transmission with 12G-SDI and HDMI I/O.
  • Enjoy low latency (<0.001 sec) for real-time monitoring on set.
  • Set up quickly with this wireless transmitter and receiver deluxe kit.
  • Transmit reliably with AES-256 encryption for secure video feeds.
  • Affordable price for professional-grade wireless video broadcast equipment.

What's in the box:

  • Bolt 6 XT MAX Transmitter (Gold Mount)
  • Bolt 6 XT MAX Receiver (Gold Mount)
  • Antenna Array
  • Bolt 4K Tx Mounting Bracket
  • 3/8" Lightstand Adapter
  • Hot Shoe Adapter
  • 4x Phillips Flat Head Screw
  • 2x Screw Socket Cap (M3x16mm)
  • 2.5mm Hex L-Key
  • 2x 18" 2-Pin Connector to PowerTap Cable
  • 18" 2-Pin Connector to 2-Pin Connector (Alexa) Cable
  • (See Specification Section for Additional Included Items)
  • Teradek 1 Year Limited Warranty
