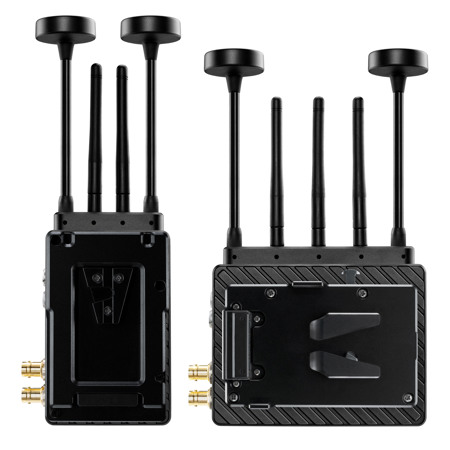

Teradek Bolt 6 XT MAX 5000 12G-SDI/HDMI Wireless Transmitter and Receiver Deluxe Kit, V-Mount, 5000' Range

SKU: TE102320V MFR: 10-2320-V
Earn VIP Reward Points

Key Features

  • Experience stable signal transmission with Bolt 6 XT MAX, up to 5000' range.
  • Enjoy low latency wireless video, perfect for live events & broadcast setups.
  • Transmit high resolution video signals with 12G-SDI & HDMI I/O included.
  • Simplify your workflow with easy setup; get your wireless video up quickly.
  • Durable build quality ensures reliable performance in demanding environments.
  • Streamline on-set monitoring with Bolt 6; supports multiple receivers.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Teradek 10-2320 Specifications

Includes

Includes

Jump to...
  • Additional Included Items

    2x Ultra Thin HDMI Male Type-A (Full) to HDMI Male Type-A (Full) Cable
    5x RP-SMA Female to RP-SMA Female Cable
    2x 18" 12G-SDI BNC to BNC Cable
    6' PSU 2-Pin Connector to 30W AC Adapter (Int) Cable
    5x Standard Antenna
    4x Mushroom Antenna
    Wooden Camera Universal Ultra Arm Monitor Mount (Combo 1/4-20 & 3/8-16/5")
    3.28' USB 2.0 Type-A Male to USB Type-C Male Cable
    4x Bolt 6 XT Battery Cover (Front/Rear)
    Large Case

  • Video Inputs

    Transmitter:
    12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)
    1x HDMI 2.0 Type-A receptacle

  • Video Outputs

    Transmitter:
    12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)

    Receiver:
    12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)
    1x HDMI 2.0 Type-A receptacle

  • SDI Ancillary Data Support

    Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit
    HDMI: RGB 4:4:4, 8-bit

  • Delay Tx to Rx

    <0.001sec

  • Input Cross Conversion

    Transmitter: Yes, HDMI to SDI

  • Output Video Scaling

    Receiver: Yes, Framerate and Resolution Scaling

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30/50/59.94/60
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Color Correction

    Transmitter: None
    Receiver: 17 x 17 x 17 3D LUT (supports 10-bit color)

Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

  • Audio Input

    Transmitter: Embedded SDI/HDMI Audio Input (2 Channel)

Outputs

Jump to...
  • Audio Output

    Receiver: Embedded SDI/HDMI Audio Output (2 Channel)

Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • USB Interface Functionality

    Upgrade via USB-C
    5-Pin Locking Connector CCU

  • Bluetooth

    2.4 GHz

Network

Jump to...
  • Antennas

    Transmitter:
    2x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)
    2x Mushroom Antenna

    Receiver:
    3x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)
    2x Mushroom Antenna

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230 GHz, 5.755 - 5.795 GHz, 5.945 - 6.425 GHz
    DFS Frequencies: 5.270 - 5.670 GHz

  • RF Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • RF Power

    Transmitter: 23 dbm EIRP
    Receiver: 21 dbm EIRP

  • Range

    Up to 5000' (1524m), line of sight

  • Unicast Multicast

    Can connect one Transmitter to up to 6 Receivers

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Power Consumption

    Transmitter: 20 Watts
    Receiver: 18 Watts

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

Physical

Jump to...
  • Material

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Transmitter: Multiple mounting options with 1/4"-20 and M3 holes
    Receiver: Multiple mounting options with 1/4"-20 and 3/8"-16 holes

  • Dimensions

    Transmitter: 5.20 x 3.58 x 1.06" (132 x 91 x 27mm)
    Receiver: 4.41 x 5.47 x 1.06" (112 x 139 x 27mm)

  • Weight

    Transmitter: 12.1 oz (344g)
    Receiver: 15.2 oz (430g)

  • UPC Code

    818264027295

About Teradek 10-2320

Take your video production to the next level with the Bolt 6 XT MAX 5000 12G-SDI/HDMI Wireless Transmitter and Receiver Deluxe Kit. This state-of-the-art wireless video transmission system is engineered to support 4K video and harnesses Teradek's patented Zero-Delay technology to deliver real-time, color-accurate, True-HDR video with an imperceptible latency of under 0.001 seconds.

Crafted for durability and reliability, the Bolt 6 XT MAX 5000 is designed to meet the rigorous demands of film and television production, live events, and any professional setting requiring high-quality, wireless video transmission over long distances. With a remarkable 5000-foot range, this system offers unparalleled flexibility in the placement of your transmitter and receiver, ensuring consistent, stable connectivity even in the most challenging environments.

The Bolt 6 XT MAX 5000 stands out with its innovative use of the newly opened 6GHz wireless frequency, significantly reducing interference and providing users with a cleaner signal. This advanced frequency band offers 12 additional channels for frequency adjustments, making it ideal for use in high-traffic areas where the 5GHz band is congested.

The deluxe kit includes a redesigned transmitter and receiver that are not only cross-compatible with the entire Bolt 4K Series but also boast a smaller, lighter build that runs cooler and operates 50% quieter than previous models. The integrated 5-pin USB port simplifies wireless camera-control setup when paired with SmallHD Smart Monitors, and the improved long-range wireless video mode enhances performance.

For professionals seeking greater control over their wireless connections, the Bolt 6 XT MAX 5000 provides new tools for monitoring connections and signals, adding an extra layer of confidence to your workflow. The system allows for linking up to 6 receivers to one transmitter, or an unlimited number when used in Broadcast Mode, offering exceptional versatility.

Experience faster connections and minimal interference with the Bolt 6 XT MAX 5000's use of the 6GHz wireless frequency. This innovative system is a game-changer for professionals who demand the best in wireless video transmission, providing a seamless, high-end user experience that stands out from the competition.

Teradek 10-2320 Features

  • Zero-Delay wireless video (<0.001sec)
  • 6GHz Wireless Frequency
  • Bolt 4K Cross-Compatibility
  • Lightweight and Quiet
  • Built in 5-pin USB for camera control
  • Inputs: 12G-SDI, HDMI 2.0 (Transmitter Only)
  • Outputs: 12G-SDI, HDMI 2.0

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience stable signal transmission with Bolt 6 XT MAX, up to 5000' range.
  • Enjoy low latency wireless video, perfect for live events & broadcast setups.
  • Transmit high resolution video signals with 12G-SDI & HDMI I/O included.
  • Simplify your workflow with easy setup; get your wireless video up quickly.
  • Durable build quality ensures reliable performance in demanding environments.
  • Streamline on-set monitoring with Bolt 6; supports multiple receivers.

What's in the box:

  • Bolt 6 XT MAX Transmitter (V-Mount)
  • Bolt 6 XT MAX Receiver (V-Mount)
  • Antenna Array
  • Bolt 4K Tx Mounting Bracket
  • 3/8" Lightstand Adapter
  • Hot Shoe Adapter
  • 4x Phillips Flat Head Screw
  • 2x Screw Socket Cap (M3x16mm)
  • 2.5mm Hex L-Key
  • 2x 18" 2-Pin Connector to PowerTap Cable
  • 18" 2-Pin Connector to 2-Pin Connector (Alexa) Cable
  • (See Specification Section for Additional Included Items)
  • Teradek 1 Year Limited Warranty
