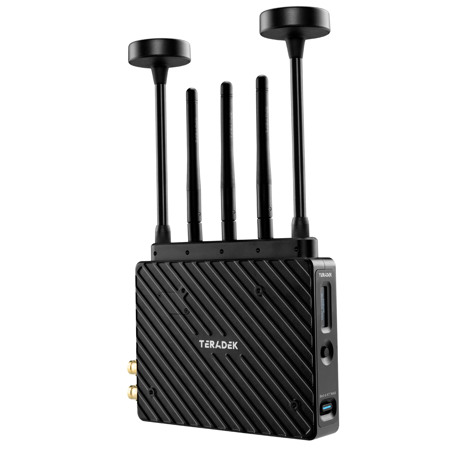

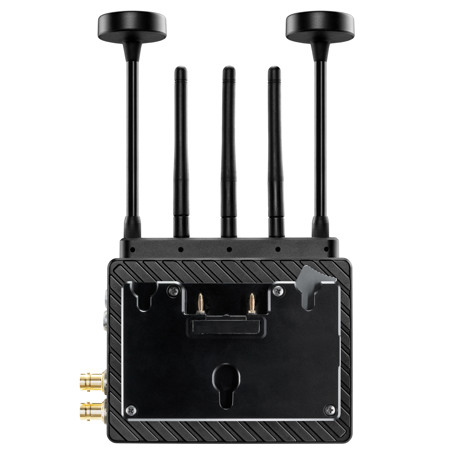

Teradek Bolt 6 XT MAX 5000 12G-SDI/HDMI Wireless Receiver, Gold Mount, 5000' Range

SKU: TE102322G MFR: 10-2322-G
Earn VIP Reward Points

Key Features

  • Experience reliable signal with this Teradek receiver, ensuring seamless broadcast feeds.
  • Achieve long range wireless video transmission up to 5000' with robust, low latency.
  • Enjoy stunning image quality with 12G-SDI and HDMI outputs for professional monitoring.
  • This receiver's strong build and milled aluminum chassis provide durability for field use.
  • Simplify your workflow with easy to use configuration via OSD and intuitive joystick.
  • Connect multiple cameras; this receiver supports up to six transmitters simultaneously.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Teradek 10-2322 Specifications

Video
  • Video Outputs

    12G-SDI SMPTE 2082-1 standard / 75 Ohm (1x BNC)
    1x HDMI 2.0 Type-A receptacle

  • SDI Ancillary Data Support

    Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit
    HDMI: RGB 4:4:4, 8-bit

  • Delay Tx to Rx

    <0.001sec

  • Output Video Scaling

    Yes, Framerate and Resolution Scaling

Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30/50/59.94/60
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Color Correction

    17 x 17 x 17 3D LUT (supports 10-bit color)

Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

Outputs

Jump to...
  • Audio Output

    Embedded SDI/HDMI Audio Output (2 Channel)

Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • USB Interface Functionality

    Upgrade via USB-C
    5-Pin Locking Connector CCU

  • Bluetooth

    2.4 GHz

Network

Jump to...
  • Antennas

    3x External 2dBi Rigid V 4.9-7.3GHz RP-SMA antennas (included)
    2x Mushroom Antenna

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230 GHz, 5.755 - 5.795 GHz, 5.945 - 6.425 GHz
    DFS Frequencies: 5.270 - 5.670 GHz

  • RF Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • RF Power

    21 dbm EIRP

  • Range

    Up to 5000' (1524m), line of sight

  • Unicast Multicast

    Can connect one Transmitter to up to 6 Receivers

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Power Consumption

    18 Watts

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Material

    Milled Aluminum (Chassis) and regulation-compliant PCB

  • Mountability

    Multiple mounting options with 1/4"-20 and 3/8"-16 holes

  • Dimensions

    4.41 x 5.47 x 1.06" (112 x 139 x 27mm)

  • Weight

    15.2 oz (430g)

  • UPC Code

    818264027325

About Teradek 10-2322

Where high-quality, reliable, and advanced wireless video transmission is a necessity, the Bolt 6 XT MAX 5000 12G-SDI/HDMI Wireless Receiver stands out. This innovative receiver is designed to support 4K video with Teradek's patented Zero-Delay technology, delivering color-accurate, True HDR videos in under 0.001 seconds.

The Bolt 6 XT MAX 5000 is not just a wireless receiver; it's a durable solution for a variety of production needs, offering a remarkable range of up to 5000 feet. It ensures fast reconnection times and provides an intuitive, easy setup via the Bolt Manager App, available for both iOS and Android.

This receiver is designed to utilize the less crowded 6GHz wireless frequency band, ensuring better image quality and reduced interference. In high-traffic areas, the 6GHz wireless frequency provides more options for frequency adjustments with 12 new channels.

The Bolt 6 XT MAX 5000 is more than just a receiver; it's a versatile tool that can pass metadata, timecode, and start/stop flags from most camera manufacturers. It's been redesigned to seamlessly fit into your setup with a smaller, lighter-weight build that runs cooler and 50% quieter than the Bolt 4K.

An integrated 5-pin USB port allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors, and an improved long-range wireless video mode. It also offers new tools for high-end users to have better visibility over their connections and signals, adding confidence to the workflow no matter how challenging the environment.

The receiver is cross-compatible with the entire Bolt 4K Series, including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules, providing the flexibility to expand your workflow requirements. You can link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode.

Unlike other devices that use the crowded 5GHz frequency, the Bolt 6 XT MAX 5000 uses the newly opened 6GHz wireless frequency for a dramatically quieter wireless environment. However, it can still be set up in 5GHz Mode for backwards compatibility. In 6GHz Mode, users will experience faster connections and less interference for a superior wireless experience.

Teradek 10-2322 Features

  • Zero-Delay wireless video (<0.001sec)
  • 6GHz Wireless Frequency
  • Bolt 4K Cross-Compatibility
  • Lightweight and Quiet
  • Built in 5-pin USB for camera control
  • Outputs: 12G-SDI, HDMI 2.0

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience reliable signal with this Teradek receiver, ensuring seamless broadcast feeds.
  • Achieve long range wireless video transmission up to 5000' with robust, low latency.
  • Enjoy stunning image quality with 12G-SDI and HDMI outputs for professional monitoring.
  • This receiver's strong build and milled aluminum chassis provide durability for field use.
  • Simplify your workflow with easy to use configuration via OSD and intuitive joystick.
  • Connect multiple cameras; this receiver supports up to six transmitters simultaneously.

What's in the box:

  • Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless Receiver (Gold Mount)
  • 18" 2-Pin Connector to PowerTap Cable (Bit 118)
  • 18" Ultra Thin HDMI Male Type-A (Full) to HDMI Male Type-A (Full) Cable
  • 18" 12G-SDI BNC to BNC Cable
  • 6' PSU 2-Pin Connector to 30W AC Adapter (Int) Cable
  • 3.28' USB 2.0 Type-A Male to USB Type-C Male Cable
  • 2x Phillips Flat Head Screw
  • 3x Standard Antenna
  • 2x Mushroom Antenna
  • 2x Bolt 6 XT Battery Cover (Rear/Front)
  • Teradek 1 Year Limited Warranty
