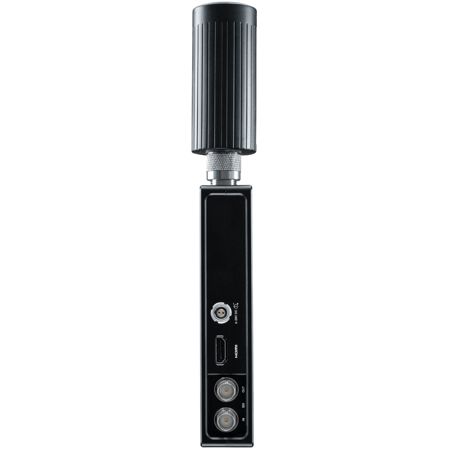

Teradek Ranger HD 3G-SDI/HDMI Wireless Transmitter & Receiver Set, V-Mount
See all Teradek items

Teradek Ranger HD 3G-SDI/HDMI Wireless Transmitter & Receiver Set, V-Mount

SKU: TE102510V
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Teradek Bolt 6 LT w/Int Antenna: Picture 1 regular
Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit, V-Mount
$3,690.00$2,390.00
Teradek 10-2270: Picture 1 regular
Teradek Bolt 6 LT 3G-SDI/HDMI Wireless Tx & Rx Deluxe Kit, V-Mount, 1500' Range
$8,690.00$7,290.00
Teradek 10-2280: Picture 1 regular
Teradek Bolt 6 LT MAX 3G-SDI/HDMI Wireless Tx & Rx Deluxe Kit, V-Mount, 5000'
$14,990.00
Teradek 10-2300: Picture 1 regular
Teradek Bolt 6 XT 12G-SDI/HDMI Wireless Tx & Rx Deluxe Kit, V-Mount, 750' Range
$7,790.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the video quality supported by the Ranger HD 3G-SDI/HDMI Wireless Transmitter & Receiver Set?

The Ranger HD supports uncompressed 1080p HDR video with a 10-bit, 4:2:2 color depth, ensuring high-definition video quality.

What frequency range does the Ranger HD operate on?

The Ranger HD operates on flexible frequencies ranging from 4.9 to 6.0 GHz, with fine-tuning intervals of 5 MHz.

What does it mean that the Ranger HD is UNII-5 ready?

Being UNII-5 ready means that the Ranger HD is prepared for future technological advancements related to wireless communication and broadcasting.

How many receivers can the Ranger HD transmit to simultaneously?

The Ranger HD is multicast capable, allowing it to transmit to up to 6 receivers simultaneously.

What kind of encryption does the Ranger HD use for secure transmission?

The Ranger HD uses AES-256 encryption for secure video transmission, ensuring the safety of your content.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Teradek Ranger HD Specifications

Additional Included Items

Additional Included Items

Jump to...

  • Additional Included Items

    2x 18" SDI 12G BNC to BNC Cable
    Teradek Case Large for Ranger HD TX/RX
    6' PSU 2pin Conn. to 30W AC Adapter (Int) Cable
    3x Antenna 2dBi Wi-Fi 2.4/5.8GHz (Small Antenna)
    2x Antenna H Mushroom
    Antenna H N-type Barrel
    Antenna V N-type Barrel
    Quickstart Guide

Tx: Video

Jump to...

  • Video Inputs

    3G-SDI SMPTE 424M standard / 75 Ohm (BNC x 1)
    1x HDMI 2.0 Type-A receptacle

  • Video Outputs

    3G-SDI SMPTE 424M standard / 75 Ohm (BNC x 1)

  • Delay Tx To Rx

    <0.001sec

  • Input Cross Conversion

    Yes, HDMI to SDI

Tx: Supported Resolutions

Jump to...

  • Supported Resolutions

    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Tx: Video Processing

Jump to...

  • Video Compression

    Uncompressed

  • Video Format Conversion Support

    None

Tx: Audio Processing

Jump to...

  • Audio Format

    48kHz 24-bit PCM

Tx: Inputs

Jump to...

  • Audio Input

    Embedded SDI/HDMI Audio Input (2 Channel)

Tx: Interfaces

Jump to...

  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • Mobile App

    iOS and Android app configuration via Bluetooth

  • Desktop App

    Launchpad application for OSX & Windows

  • Usb Interface Functionality

    Upgrade via Micro-USB

  • Bluetooth

    Bluetooth 5 LE

Tx: Network

Jump to...

  • Antennas

    1x Horizontal N-Type antenna
    1x Vertical N-Type antenna

  • Wireless

    Licensed Frequencies:
    4.850 - 5.150 GHz
    5.350 - 5.470 GHz
    5.850 - 5.925 GHz

    Unlicensed Frequencies:
    5.150 - 5.250 GHz (Non-DFS)
    5.250 - 5.350 GHz (DFS)
    5.470 - 5.725 GHz (DFS)
    5.725 - 5.850 GHz (Non-DFS)

  • Rf Channel Selection

    Auto, Manual
    Manual available for non-DFS Channels

  • Encryption

    AES-256, RSA-1024 key exchange

  • Rf Power

    19 dbm (2 external 2dBi antennas) (<80mW transmit power)

  • Range

    Up to 1500 ft, line of sight

  • Unicast Multicast

    No

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

Tx: Power

Jump to...

  • Power Input

    2-Pin Circular locking connector 7-28 VDC

  • Battery

    V mount battery plate

  • Battery Runtime

    19 Watts

  • Nominal Power Consumption

    32-104 Degree F (0-40 Degree C)

Tx: Physical

Jump to...

  • Construction

    Milled Aluminum(Chassis) and regulation-compliant PCB

  • Mountability

    Integrated Gold or V Battery Mount, Multiple mounting options with M3, 3/8" and 1/4-20" holes

  • Dimensions

    5.9 x 3.6 x 1.2" (149 x 91 x 30mm)

  • Weight

    19.1oz (544g)

Rx: Video

Jump to...

  • Video Outputs

    3G-SDI SMPTE 424M standard / 75 Ohm (BNC x 2)
    1x HDMI 2.0 Type-A receptacle

  • Delay Tx To Rx

    <0.001sec

Rx: Supported Resolutions

Jump to...

  • Supported Resolutions

    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Rx: Video Processing

Jump to...

  • Video Compression

    Uncompressed

  • Video Format Conversion Support

    Yes, Framerate and Resolution Scaling

Rx: Audio Processing

Jump to...

  • Audio Format

    48kHz 24-bit PCM

Rx: Output

Jump to...

  • Audio Output

    Embedded SDI/HDMI Audio Output (2 Channel)

Rx: Interfaces

Jump to...

  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • Recording Storage

    Upgrade via Micro-USB

  • Mobile App

    iOS and Android app configuration via Bluetooth

  • Desktop App

    Launchpad application for OSX & Windows

  • Usb Interface Functionality

    Bluetooth 5 LE

Rx: Network

Jump to...

  • Antennas

    5 External 2 dBi antennas (included)

  • Wireless

    Licensed Frequencies:
    4.850 - 5.150 GHz
    5.350 - 5.470 GHz
    5.850 - 5.925 GHz

    Unlicensed Frequencies:
    5.150 - 5.250 GHz (Non-DFS)
    5.250 - 5.350 GHz (DFS)
    5.470 - 5.725 GHz (DFS)
    5.725 - 5.850 GHz (Non-DFS)

  • Rf Channel Selection

    Auto, Manual
    Manual available for non-DFS Channels

  • Encryption

    AES-256, RSA-1024 key exchange

  • Rf Power

    17 dbm EIRP (one external 2dBi antenna) (<51mW transmit power)

  • Range

    Up to 1500 ft, line of sight

  • Unicast Multicast

    No

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

Rx: Power

Jump to...

  • Power Input

    2-Pin circular locking connector 6-28V DC

  • Battery

    V mount battery plate

  • Battery Runtime

    15 Watts

  • Nominal Power Consumption

    32-104 Degree F (0-40 Degree C)

Rx: Physical

Jump to...

  • Construction

    Milled Aluminum(Chassis) and regulation-compliant PCB

  • Mountability

    Integrated Gold or V Battery Mount, Multiple mounting options with M3, 3/8" and 1/4-20" holes

  • Dimensions

    5.3 x 5.5 x 1.2" (133.74 x 139.2 x 30.10mm)

  • Weight

    23 oz (656g)

Other

Jump to...

  • UPC Code

    818264026328

About Teradek Ranger HD

Ranger HD is a zero-delay (< 1 ms) wireless video system that transmits uncompressed 1080p HDR video up to 1,500 ft. line of sight. With best-in-class performance in challenging RF conditions and a wide operating range from 4.9 GHz to 6.0 GHz, Ranger offers live productions the ultimate combination of industry-leading video quality and wireless integrity.

Uncompressed 1080p HDR Video
10-bit, 4:2:2, Patented JSSC Technology

Flexible Operating Frequencies
4.9 to 6.0 GHz with 5 MHz Fine Tuning Intervals

UNII-5 Ready

Secure Video Transmission
AES-256 Encryption

Multicast Capable
Up to 6 Receivers Simultaneously

Teradek Ranger HD Features

  • Wireless 1080p60 HDR video
  • Zero-delay (< 1 ms)
  • Uncompressed, 10-bit, 4:2:2 image quality
  • Supports a directional antenna for superb wireless performance (sold separately)
  • Up to 1,500 ft. of range line of sight
  • 4.9 GHz to 6.0 GHz operation
  • UNII-5 ready
  • 40 MHz / 20 MHz channel bandwidth
  • AES-256 encryption using RSA 1024 key exchange protocol
  • Manual and automatic frequency selection
  • Multicast-capable up to 6 receivers

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Wireless 1080p60 HDR video
  • Zero-delay (< 1 ms)
  • Uncompressed, 10-bit, 4:2:2 image quality
  • Supports a directional antenna for superb wireless performance (sold separately)
  • Up to 1,500 ft. of range line of sight
  • 4.9 GHz to 6.0 GHz operation

What's in the box:

  • Ranger HD 3G-SDI/HDMI Wireless TX (V-Mount)
  • Ranger HD 3G-SDI/HDMI Wireless RX (V-Mount)
  • 4x Battery Slot Cover
  • 1/4-20" Lightstand Adapter
  • 4x Phillips Flat Head Screw (Black SS M2 x 4mm)
  • 18" (Bit 118) 2-Pin Conn. to PowerTap Cable
  • 3' USB Male Type-A (Full) to USB Male Type-B (Micro) Cable
  • 2x 18" Ultra Thin HDMI Male Type-A (Full) to HDMI Male Type-A (Full) Cable
  • (See Specification Section for Additional Included Items)
  • Teradek 1 Year Limited Warranty
