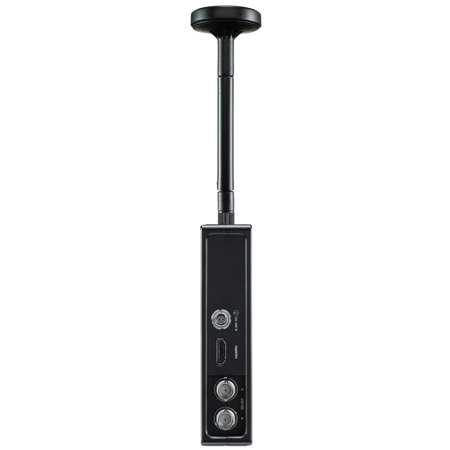

Teradek Ranger HD 3G-SDI/HDMI Wireless Receiver, Gold-Mount
See all Teradek items

Teradek Ranger HD 3G-SDI/HDMI Wireless Receiver, Gold-Mount

SKU: TE102512G
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Teradek Bolt 4K RX Monitor Module: Picture 1 regular
Teradek Bolt 4K RX Monitor Module for Cine 7 and 702 Touch, Gold Mount
$2,890.00
Teradek Bolt 6 Monitor Module: Picture 1 regular
Teradek Bolt 6 750 Receiver Monitor Module for SmallHD Smart 7, Gold Mount, 750'
$1,890.00
Teradek Bolt 6 Rx Monitor Module: Picture 1 regular
Teradek Bolt 6 RX 750 Monitor Module with Internal Antennas (Gold Mount)
$1,890.00$1,390.00
Teradek 10-2262: Picture 1 regular
Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Receiver, Gold Mount, 750' Range
$2,090.00$1,390.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What does zero-delay mean in the context of the Ranger HD 3G-SDI/HDMI Wireless Receiver?

Zero-delay means that the Ranger HD 3G-SDI/HDMI Wireless Receiver transmits video in real-time, without any noticeable lag. This is crucial for professional video production where every frame counts.

What is the benefit of the Ranger HD Receiver supporting 10-bit, 4:2:2 color depth?

10-bit, 4:2:2 color depth means that the Ranger HD Receiver can reproduce a broad spectrum of colors with high accuracy. This results in superior image quality with more detailed and realistic colors, enhancing the overall viewing experience.

What does it mean that the Ranger HD Receiver is UNII-5 ready?

Being UNII-5 ready means that the Ranger HD Receiver is prepared to operate in the UNII-5 band once it's available for public use. This makes the device future-proof and adaptable to evolving technology standards.

What is the purpose of the AES-256 encryption in the Ranger HD Receiver?

AES-256 is a high-level encryption standard used to secure data. In the context of the Ranger HD Receiver, it ensures that the video transmission is secure and protected from unauthorized access, keeping your content confidential.

What is the advantage of the Ranger HD Receiver being multicast capable?

Being multicast capable means that the Ranger HD Receiver can transmit video to up to 6 receivers simultaneously. This is particularly useful for multi-camera setups and large-scale video productions, where multiple devices need to receive the same video feed at the same time.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Teradek Ranger HD Specifications

Additional Included Items

Additional Included Items

Jump to...

  • Additional Included Items

    6' PSU 2pin Conn. to 30W AC Adapter (Int) Cable
    3x Antenna 2dBi Wi-Fi 2.4/5.8GHz (Small Antenna)
    2x Antenna H Mushroom
    Quickstart Guide

Video

Jump to...

  • Video Outputs

    3G-SDI SMPTE 424M standard / 75 Ohm (BNC x 2)
    1x HDMI 2.0 Type-A receptacle

  • Delay Tx To Rx

    <0.001sec

Supported Resolutions

Jump to...

  • Supported Resolutions

    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...

  • Video Compression

    Uncompressed

  • Video Format Conversion Support

    Yes, Framerate and Resolution Scaling

Audio Processing

Jump to...

  • Audio Format

    48kHz 24-bit PCM

Output

Jump to...

  • Audio Output

    Embedded SDI/HDMI Audio Output (2 Channel)

Interfaces

Jump to...

  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • Recording Storage

    Upgrade via Micro-USB

  • Mobile App

    iOS and Android app configuration via Bluetooth

  • Desktop App

    Launchpad application for OSX & Windows

  • Usb Interface Functionality

    Bluetooth 5 LE

Network

Jump to...

  • Antennas

    5 External 2 dBi antennas (included)

  • Wireless

    Licensed Frequencies:
    4.850 - 5.150 GHz
    5.350 - 5.470 GHz
    5.850 - 5.925 GHz

    Unlicensed Frequencies:
    5.150 - 5.250 GHz (Non-DFS)
    5.250 - 5.350 GHz (DFS)
    5.470 - 5.725 GHz (DFS)
    5.725 - 5.850 GHz (Non-DFS)

  • Rf Channel Selection

    Auto, Manual
    Manual available for non-DFS Channels

  • Encryption

    AES-256, RSA-1024 key exchange

  • Rf Power

    17 dbm EIRP (one external 2dBi antenna) (<51mW transmit power)

  • Range

    Up to 1500 ft, line of sight

  • Unicast Multicast

    No

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

Power

Jump to...

  • Power Input

    2-Pin circular locking connector 6-28V DC

  • Battery

    Gold mount battery plate

  • Battery Runtime

    15 Watts

  • Nominal Power Consumption

    32-104 Degree F (0-40 Degree C)

Physical

Jump to...

  • Construction

    Milled Aluminum(Chassis) and regulation-compliant PCB

  • Mountability

    Integrated Gold or V Battery Mount, Multiple mounting options with M3, 3/8" and 1/4-20" holes

  • Dimensions

    5.3 x 5.5 x 1.2" (133.74 x 139.2 x 30.10mm)

  • Weight

    23 oz (656g)

About Teradek Ranger HD

Ranger HD is a zero-delay (< 1 ms) wireless video system that transmits uncompressed 1080p HDR video up to 1,500 ft. line of sight. With best-in-class performance in challenging RF conditions and a wide operating range from 4.9 GHz to 6.0 GHz, Ranger offers live productions the ultimate combination of industry-leading video quality and wireless integrity.

Uncompressed 1080p HDR Video
10-bit, 4:2:2, Patented JSSC Technology

Flexible Operating Frequencies
4.9 to 6.0 GHz with 5 MHz Fine Tuning Intervals

UNII-5 Ready

Secure Video Transmission
AES-256 Encryption

Multicast Capable
Up to 6 Receivers Simultaneously

Teradek Ranger HD Features

  • Wireless 1080p60 HDR video
  • Zero-delay (< 1 ms)
  • Uncompressed, 10-bit, 4:2:2 image quality
  • Supports a directional antenna for superb wireless performance (sold separately)
  • Up to 1,500 ft. of range line of sight
  • 4.9 GHz to 6.0 GHz operation
  • UNII-5 ready
  • 40 MHz / 20 MHz channel bandwidth
  • AES-256 encryption using RSA 1024 key exchange protocol
  • Manual and automatic frequency selection
  • Multicast-capable up to 6 receivers

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Wireless 1080p60 HDR video
  • Zero-delay (< 1 ms)
  • Uncompressed, 10-bit, 4:2:2 image quality
  • Supports a directional antenna for superb wireless performance (sold separately)
  • Up to 1,500 ft. of range line of sight
  • 4.9 GHz to 6.0 GHz operation

What's in the box:

  • Ranger HD 3G-SDI/HDMI Wireless Receiver Gold-Mount
  • 2x Battery Slot Cover
  • 1/4-20" Lightstand Adapter
  • 2x Phillips Flat Head Screw (Black SS M2 x 4mm)
  • 3' USB Male Type-A (Full) to USB Male Type-B (Micro) Cable
  • 18" Ultra Thin HDMI Male Type-A (Full) to HDMI Male Type-A (Full) Cable
  • 18" SDI 12G BNC to BNC Cable
  • Orbit PTZ / Ranger Rx Foam
  • Sticker
  • (See Specification Section for Additional Included Items)
  • Teradek 1 Year Limited Warranty
