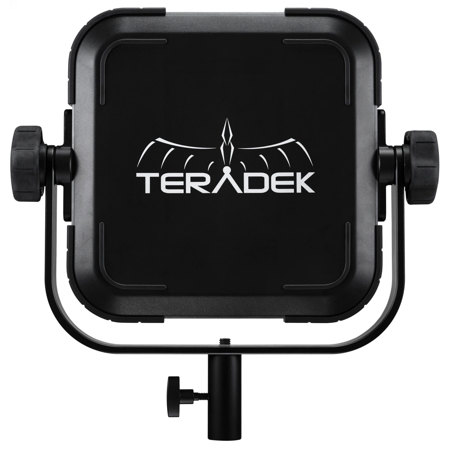

Teradek Ranger 4K 12G-SDI/HDMI Wireless Transmitter & Receiver Set, Gold-Mount
See all Teradek items

Teradek Ranger 4K 12G-SDI/HDMI Wireless Transmitter & Receiver Set, Gold-Mount

SKU: TE102520G
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Teradek 10-2210: Picture 1 regular
Teradek Bolt 4K LT 1500 3G-SDI/HDMI Wireless Tx, Rx Deluxe Kit, 1500',Gold Mount
$8,290.00
Teradek 10-2260: Picture 1 regular
Teradek Bolt 6 LT 3G-SDI/HDMI Wireless Tx & Rx Deluxe Kit, Gold Mount,750' Range
$3,690.00
Teradek Bolt 6 LT w/Int Antenna: Picture 1 regular
Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit, Gold Mount
$3,690.00
Teradek 10-2270: Picture 1 regular
Teradek Bolt 6 LT 3G-SDI/HDMI Wireless Tx & Rx Deluxe Kit,Gold Mount,1500' Range
$8,690.00$7,290.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What does the 10-bit, 4:2:2 color depth mean for the Ranger 4K 12G-SDI/HDMI Wireless Transmitter & Receiver Set?

The 10-bit, 4:2:2 color depth means that the Ranger 4K can reproduce a wide range of colors with greater accuracy. This results in more vibrant, lifelike images with smoother gradients and reduced color banding.

What is the purpose of the 5 MHz fine-tuning intervals in the Ranger 4K?

The 5 MHz fine-tuning intervals allow for precise control over the operating frequency. This can help to avoid interference and optimize the quality of the video transmission.

What does it mean that the Ranger 4K is UNII-5 ready?

Being UNII-5 ready means that the Ranger 4K is prepared to operate in the UNII-5 band once it becomes available for use. This makes the device future-proof and ready to meet the demands of next-generation wireless communication.

How does the AES-256 encryption protect my video transmission?

AES-256 is a powerful encryption standard that protects your video transmission from unauthorized access. It ensures that your content can only be viewed by the intended receivers.

Can the Ranger 4K transmit to multiple receivers at the same time?

Yes, the Ranger 4K is capable of transmitting to an unlimited number of receivers simultaneously. This makes it an ideal solution for live events, multi-camera shoots, and large-scale productions.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Teradek Ranger 4K Specifications

Additional Included Items

Additional Included Items

Jump to...

  • Additional Included Items

    2x 18" Ultra Thin HDMI Male Type-A (Full) to HDMI Male Type-A (Full) Cable
    5x 4" RP-SMA Male to RP-SMA Male Cable
    2x 18" SDI 12G BNC to BNC Cable
    Case XL for Ranger 4K TX/RX and Antenna Array
    6' PSU 2-Pin Conn. to 30W AC Adapter (Int) Cable
    3x Antenna 2dBi Wi-Fi 2.4/5.8GHz (Small Antenna)
    2x Antenna H Mushroom

  • Additional Included Item (Contd.)

    Antenna H N-type Barrel
    Antenna V N-type Barrel
    Quickstart Guide

Tx: Video

Jump to...

  • Video Inputs

    12G-SDI SMPTE 2082-1 standard / 75 Ohm (BNC x 1)
    1x HDMI 2.0 Type-A receptacle

  • Video Outputs

    12G-SDI SMPTE 2082-1 standard / 75 Ohm (BNC x 1)

  • Delay Tx To Rx

    <0.001sec

  • Input Cross Conversion

    Yes, HDMI to SDI

Tx: Bonding

Jump to...

  • Bonding

    No

Tx: Supported Resolutions

Jump to...

  • Supported Resolutions

    4Kp23.98/24/25/29.97/30/50/59.94/60
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Tx: Video Processing

Jump to...

  • Video Compression

    Uncompressed

Tx: Audio Processing

Jump to...

  • Audio Format

    48kHz 24-bit PCM

Tx: Input

Jump to...

  • Audio Input

    Embedded SDI/HDMI Audio Input (2 Channel)

Tx: Interfaces

Jump to...

  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • Recording Storage

    Upgrade via Micro-USB

  • Mobile App

    iOS and Android app configuration via Bluetooth

  • Desktop App

    Launchpad application for OSX & Windows

  • Usb Interface Functionality

    Bluetooth 5 LE

Tx: Network

Jump to...

  • Wireless

    Licensed Frequencies:
    4.850 - 5.150 GHz
    5.350 - 5.470 GHz
    5.850 - 5.925 GHz

    Unlicensed Frequencies:
    5.150 - 5.250 GHz (Non-DFS)
    5.250 - 5.350 GHz (DFS)
    5.470 - 5.725 GHz (DFS)
    5.725 - 5.850 GHz (Non-DFS)

  • Rf Channel Selection

    Auto, Manual
    Manual available for DFS and non-DFS Channels

  • Encryption

    AES-256, RSA-1024 key exchange

  • Rf Power

    19 dbm EIRP (2 external 2dBi antennas) (<80mW transmit power)

  • Rf Sensitivity

    1x Horizontal N-Type 2dBi antenna
    1x Vertical N-Type 2dBi antenna

  • Range

    Up to 5000 ft line of sight (using Panel Antenna on RX)

  • Unicast Multicast

    Can connect one transmitter to up to 6 receivers

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

Tx: Power

Jump to...

  • Power Input

    2-Pin Circular locking connector 7-28 VDC

  • Battery

    Gold mount battery plate

  • Nominal Power Consumption

    19 Watts

Tx: Environmental

Jump to...

  • Operating Temperature

    32-104 Degree F (0-40 Degree C)

Tx: Physical

Jump to...

  • Construction

    Milled Aluminum(Chassis) and regulation-compliant PCB

  • Mountability

    Multiple mounting options with 1/4"x20 and M3 holes

  • Dimensions

    5.9 x 3.6 x 1.2" (149 x 91 x 30mm)

  • Weight

    19.1oz (544g)

Rx: Video

Jump to...

  • Video Outputs

    12G-SDI SMPTE 2082-1 standard / 75 Ohm (BNC x 2)
    1x HDMI 2.0 Type-A receptacle

  • Delay Tx To Rx

    <0.001sec

Rx: Supported Resolutions

Jump to...

  • Supported Resolutions

    4Kp23.98/24/25/29.97/30/50/59.94/60
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Rx: Video Processing

Jump to...

  • Video Compression

    Uncompressed

  • Video Format Conversion Support

    Yes, Framerate and Resolution Scaling

Rx: Audio Processing

Jump to...

  • Audio Format

    48kHz 24-bit PCM

Rx: Output

Jump to...

  • Audio Output

    Embedded SDI/HDMI Audio Output (2 Channel)

Rx: Network

Jump to...

  • Antennas

    5 External 2 dBi antennas (included)

  • Wireless

    Licensed Frequencies:
    4.850 - 5.150 GHz
    5.350 - 5.470 GHz
    5.850 - 5.925 GHz

    Unlicensed Frequencies:
    5.150 - 5.250 GHz (Non-DFS)
    5.250 - 5.350 GHz (DFS)
    5.470 - 5.725 GHz (DFS)
    5.725 - 5.850 GHz (Non-DFS)

  • Rf Channel Selection

    Auto, Manual
    Manual available for DFS and non-DFS Channels

  • Encryption

    AES-256, RSA-1024 key exchange

  • Rf Power

    17 dbm EIRP (one external 2dBi antenna) (<51mW transmit power)

  • Range

    Up to 5000 ft line of sight (using Panel Antenna on RX)

  • Unicast Multicast

    Can connect one transmitter to up to 6 receivers

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

Rx: Power

Jump to...

  • Power Input

    2-Pin circular locking connector 6-28V DC

  • Battery

    Gold mount battery plate

  • Nominal Power Consumption

    15 Watts

Rx: Environmental

Jump to...

  • Operating Temperature

    32-104 Degree F (0-40 Degree C)

Rx: Physical

Jump to...

  • Construction

    Milled Aluminum(Chassis) and regulation-compliant PCB

  • Mountability

    Multiple mounting options with 1/4"x20 and 3/8"x16 holes

  • Dimensions

    5.3 x 5.5 x 1.2" (133.74 x 139.2 x 30.10mm)

  • Weight

    23 oz (656g)

About Teradek Ranger 4K

Ranger 4K is a zero-delay (< 1 ms) wireless video system that transmits uncompressed 4K HDR video up to 5,000 ft. line of sight. With best-in-class performance in challenging RF conditions and a wide operating range from 4.9 GHz to 6.0 GHz, Ranger offers live productions the ultimate combination of industry-leading video quality and wireless integrity.

Uncompressed 4K HDR Video
10-bit, 4:2:2, Patented JSSC Technology

Flexible Operating Frequencies
4.9 to 6.0 GHz with 5 MHz Fine Tuning Intervals
UNII-5 Ready

Secure Video Transmission
AES-256 Encryption

Broadcast Capable
Transmit to Unlimited Receivers Simultaneously

Teradek Ranger 4K Features

  • Wireless 4K (2160p60) HDR video
  • Zero-delay (< 1 ms)
  • Uncompressed, 10-bit, 4:2:2 image quality
  • Directional antenna for superb wireless performance
  • Up to 3,000 ft. of wireless range or 5,000 ft. with panel antenna (included)
  • 4.9 GHz to 6.0 GHz operation
  • UNII-5 ready
  • 40 MHz / 20 MHz channel bandwidths
  • AES-256 encryption using RSA 1024 key exchange protocol
  • Manual and automatic frequency selection
  • Broadcast-capable
  • Multicast-capable up to 6 receivers

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Wireless 4K (2160p60) HDR video
  • Zero-delay (< 1 ms)
  • Uncompressed, 10-bit, 4:2:2 image quality
  • Directional antenna for superb wireless performance
  • Up to 3,000 ft. of wireless range or 5,000 ft. with panel antenna (included)
  • 4.9 GHz to 6.0 GHz operation

What's in the box:

  • Antenna Array Plate 3rd Gen (Gold-Mount)
  • Ranger 4K 12G-SDI/HDMI Wireless TX (Gold-Mount)
  • Ranger 4K 12G-SDI/HDMI Wireless RX (Gold-Mount)
  • 4x Battery Slot Cover
  • Lightstand Adapter 1/4-20in
  • 4x Phillips Flat Head Screw (Black SS M2 x 4mm)
  • 18" (Bit 118) 2pin Conn. to PowerTap Cable
  • 3' USB Male Type-A (Full) to Male Type-B (Micro) Cable
  • (See Specification Section for Additional Included Items)
  • Teradek 1 Year Limited Warranty
