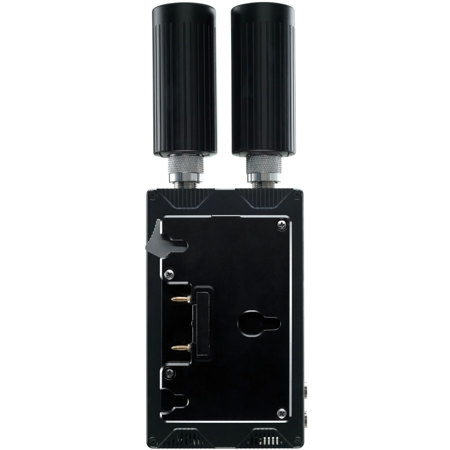

Teradek Ranger 4K 12G-SDI/HDMI Wireless Transmitter, Gold-Mount
See all Teradek items

Teradek Ranger 4K 12G-SDI/HDMI Wireless Transmitter, Gold-Mount

SKU: TE102521G
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What does zero-delay technology mean in the Ranger 4K 12G-SDI/HDMI Wireless Transmitter?

Zero-delay technology in the Ranger 4K transmitter ensures real-time, uncompressed 4K HDR video transmission with no lag. It ensures the highest quality video transmission preserving the integrity of your content.

What is the benefit of the gold-mount receiver in the Ranger 4K transmitter?

The gold-mount receiver in the Ranger 4K transmitter is known for its durability and stability. It provides a secure and stable connection between the transmitter and your equipment, ensuring uninterrupted transmission of audio and video signals.

What does it mean that the Ranger 4K transmitter is UNII-5 ready?

Being UNII-5 ready means the Ranger 4K transmitter is compatible with the latest wireless communication standards. This ensures a smooth and efficient transmission of your content.

What types of inputs is the Ranger 4K transmitter compatible with?

The Ranger 4K transmitter is compatible with both SDI and HDMI inputs. This makes it versatile and suitable for a wide range of video and audio equipment.

What is the purpose of AES-256 encryption in the Ranger 4K transmitter?

AES-256 encryption in the Ranger 4K transmitter provides a high level of security for your video transmission. It ensures the safety of your content, making it an ideal choice for professional broadcasting.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Teradek Ranger 4K Specifications

Video

Video

Jump to...

  • Video Inputs

    12G-SDI SMPTE 2082-1 standard / 75 Ohm (BNC x 1)
    1x HDMI 2.0 Type-A receptacle

  • Video Outputs

    12G-SDI SMPTE 2082-1 standard / 75 Ohm (BNC x 1)

  • Delay Tx To Rx

    <0.001sec

  • Input Cross Conversion

    Yes, HDMI to SDI

Bonding

Jump to...

  • Bonding

    No

Supported Resolutions

Jump to...

  • Supported Resolutions

    4Kp23.98/24/25/29.97/30/50/59.94/60
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Video Processing

Jump to...

  • Video Compression

    Uncompressed

Audio Processing

Jump to...

  • Audio Format

    48kHz 24-bit PCM

Input

Jump to...

  • Audio Input

    Embedded SDI/HDMI Audio Input (2 Channel)

Interfaces

Jump to...

  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • Recording Storage

    Upgrade via Micro-USB

  • Mobile App

    iOS and Android app configuration via Bluetooth

  • Desktop App

    Launchpad application for OSX & Windows

  • Usb Interface Functionality

    Bluetooth 5 LE

Network

Jump to...

  • Wireless

    Licensed Frequencies:
    4.850 - 5.150 GHz
    5.350 - 5.470 GHz
    5.850 - 5.925 GHz

    Unlicensed Frequencies:
    5.150 - 5.250 GHz (Non-DFS)
    5.250 - 5.350 GHz (DFS)
    5.470 - 5.725 GHz (DFS)
    5.725 - 5.850 GHz (Non-DFS)

  • Rf Channel Selection

    Auto, Manual
    Manual available for DFS and non-DFS Channels

  • Encryption

    AES-256, RSA-1024 key exchange

  • Rf Power

    19 dbm EIRP (2 external 2dBi antennas) (<80mW transmit power)

  • Rf Sensitivity

    1x Horizontal N-Type 2dBi antenna
    1x Vertical N-Type 2dBi antenna

  • Range

    Up to 5000 ft line of sight (using Panel Antenna on RX)

  • Unicast Multicast

    Can connect one transmitter to up to 6 receivers

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

Power

Jump to...

  • Power Input

    2-Pin Circular locking connector 7-28 VDC

  • Battery

    Gold mount battery plate

  • Nominal Power Consumption

    19 Watts

Environmental

Jump to...

  • Operating Temperature

    32-104 Degree F (0-40 Degree C)

Physical

Jump to...

  • Construction

    Milled Aluminum(Chassis) and regulation-compliant PCB

  • Mountability

    Multiple mounting options with 1/4"x20 and M3 holes

  • Dimensions

    5.9 x 3.6 x 1.2" (149 x 91 x 30mm)

  • Weight

    19.1oz (544g)

About Teradek Ranger 4K

Ranger 4K is a zero-delay (< 1 ms) wireless video system that transmits uncompressed 4K HDR video up to 5,000 ft. line of sight. With best-in-class performance in challenging RF conditions and a wide operating range from 4.9 GHz to 6.0 GHz, Ranger offers live productions the ultimate combination of industry-leading video quality and wireless integrity.

Uncompressed 4K HDR Video
10-bit, 4:2:2, Patented JSSC Technology

Flexible Operating Frequencies
4.9 to 6.0 GHz with 5 MHz Fine Tuning Intervals

UNII-5 Ready

Secure Video Transmission
AES-256 Encryption

Broadcast Capable
Transmit to Unlimited Receivers Simultaneously

Teradek Ranger 4K Features

  • Wireless 4K (2160p60) HDR video
  • Zero-delay (< 1 ms)
  • Uncompressed, 10-bit, 4:2:2 image quality
  • Directional antenna for superb wireless performance
  • Up to 3,000 ft. of wireless range or 5,000 ft. with panel antenna (included)
  • 4.9 GHz to 6.0 GHz operation
  • UNII-5 ready
  • 40 MHz / 20 MHz channel bandwidths
  • AES-256 encryption using RSA 1024 key exchange protocol
  • Manual and automatic frequency selection
  • Broadcast-capable
  • Multicast-capable up to 6 receivers

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Wireless 4K (2160p60) HDR video
  • Zero-delay (< 1 ms)
  • Uncompressed, 10-bit, 4:2:2 image quality
  • Directional antenna for superb wireless performance
  • Up to 3,000 ft. of wireless range or 5,000 ft. with panel antenna (included)
  • 4.9 GHz to 6.0 GHz operation

What's in the box:

  • Ranger 4K 12G-SDI/HDMI Wireless Transmitter (Gold-Mount)
  • 2x Battery Slot Cover
  • 2x Phillips Flat Head Screw (Black SS M2 x 4mm)
  • 3' USB Male Type-A (Full) to Male Type-B (Micro) Cable
  • 18" Ultra Thin HDMI Male Type-A (Full) to HDMI Male Type-A (Full) Cable
  • 18" SDI 12G BNC to BNC Cable
  • Ranger TX Foam
  • 6' PSU 2-Pin Conn. to 30W AC Adapter (Int) Cable
  • Antenna H N-type Barrel
  • Antenna V N-type Barrel
  • Quickstart Guide
  • Teradek 1 Year Limited Warranty
