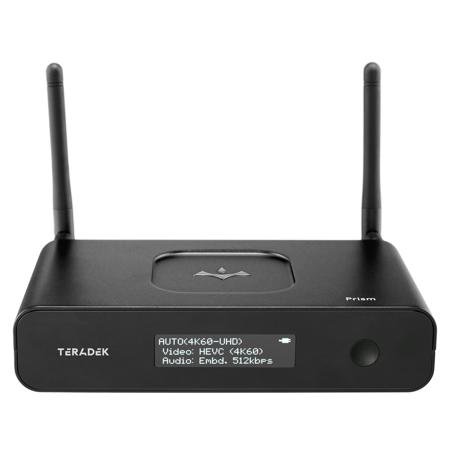

Teradek Prism Flex 855 Portable 4K HEVC/H.264 Encoder

SKU: TE102855

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Quintin E : 4:2:2 encoding, h.265, recording and bonding

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Teradek Prism Flex Specifications

Video
  • Video Inputs

    1x SD/HD/3G/6G/12G-SDI (75 Ohm BNC)
    1x HDMI 2.0 Type-A receptacle

  • HDR Support

    Up to one 4KDCI p60 4:2:2 10bit

  • Video Outputs

    1x SD/HD/3G/6G/12G-SDI (75 Ohm BNC loop out)

Bonding

Jump to...
  • Bonding

    Prism App

Supported Resolutions

Jump to...
  • Supported Resolutions

    4K DCI p23.98/24/25/29.97/30/50/59.94/60
    4K UHD p23.98/24/25/29.97/30/50/59.94/60
    1080p 23.98/24/25/29.97/30/50/59.94/60
    1080i 50/59.94/60
    1080PsF 23/24/25/29/30
    720p 50/59.94/60
    576i 480i

Video Processing

Jump to...
  • Video Compression

    ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
    AVC: Baseline, Main, High
    ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
    HEVC: Main

  • Supported Video Bitrate

    250 kbps to 85 Mbps

  • Video Format Conversion Support

    Built in video scaler and deinterlacer

  • Color Correction

    CDL/1024 1D LUT (supports 10-bit color)
    33x33x33 3D LUT (supports 10-bit color)

Protocol Support

Jump to...
  • Network Protocols

    TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP

  • Supported Video Transport Protocols

    RTMP/RTMPS, MPEG-TS (UDP, TCP, TCP Server, Multicast), CDNs (YouTube, Facebook, Vimeo)
    Secure Reliable Transport (SRT)

  • Remote Control

    Teradek Core

Audio Processing

Jump to...
  • Audio Support

    Stero, 5.1 Surround Sound

  • Audio Compression

    AAC-LC

  • Supported Audio Bitrate Details

    32kbps to 512 kbps

  • Audio Input

    3.5mm Stereo Line Level Analog or Microphone in, adjustable gain

Interfaces

Jump to...
  • Configuration Interfaces

    Feature-rich Web UI for configuration and control
    OLED Status Display w/ Nav control buttons

  • Recording Storage

    SD Card - Full size

  • Usb Interface Functionality

    2x Powered USB-C host ports with USB 3G/4G Modem support

Network

Jump to...
  • Ethernet

    2x 10/100/1000 BASE-T Gigabit Ethernet (RJ45)

  • Wireless

    WiFi: 2.4/5GHz 802.11 a/b/g/n/ac/ax MiMo

  • Power Input

    2 Pin Circular Locking Connector

  • Nominal Power Consumption

    18W

  • Auxilary Power Input

    6-28V DC

Physical

Jump to...
  • Material

    Milled Aluminum

  • Mountability

    Can be mounted horizontally or vertically with 1/4" 20 mounting holes

  • Dimensions (W x D x H)

    6.25 x 3.6 x 1.4" (162 x 92 x 35mm)

  • Weight

    11.6 oz (328.9g)

  • UPC Code

    818264020517

About Teradek Prism Flex

Users were first introduced to Teradek's multi-tool for IP video with the best selling Prism Rack Unit. Now, we've introduced the Prism features you love into a more compact design. Prism Flex is our portable H.264/H.265 encoder that allows you to stream to any destination in up to 4KHD. Its compact, multi-I/O, low-power design can fit into compact spaces - making it easy to integrate into any live production workspace and workflow. Simply place it on a table, camera, or wedged between your video switcher and audio mixer.

Prism Flex is designed to perform in mission-critical scenarios where reliable, color-accurate, and low latency point-to-point streaming is needed. This includes live production companies, broadcasters, filmmakers, megachurches, and large corporations.

With its feature-dense design, it's easy to see why Prism is trusted by top brands like Netflix, NASA, NBC Universal, Technicolor, BBC, and USA Today for mission-critical video delivery.

• Prism Flex's extensive feature set gives you the highest quality on a single device
• 4K Encoding/Decoding. Live stream with cutting-edge image quality. 10-bit, 4:2:2 offers a color-accurate picture for virtual viewers
• HEVC + AVC. Get better visual quality at half the bitrate
• SRT, RTMP(S), MPEG-TS. Send streams to every platform, including Facebook Live, Youtube, Twitch, and more

With a subscription to Teradek's Core Cloud platform you can get even more out of your Prism Flex.
• Multi-streaming. Send streams to multiple destinations simultaneously
• Network Bonding. Avoid mid-stream drops and bond several internet connections together
• Archiving. Save on storage and keep your content in the cloud
• Transcoding. Transcode your video to AVC before sending it out to CDNs
• Remote Management. Manage your codec from anywhere
• Store and Forward. Save and send files in chunks for faster delivery

Teradek Prism Flex Features

  • HEVC + AVC Encoding
  • 4K HDR, 10-bit, 4:2:2 Video
  • HDMI and SDI I/O
  • Tabletop Design
  • Store and Forward
  • Core Cloud Compatible

Key Features

  • HEVC + AVC Encoding
  • 4K HDR, 10-bit, 4:2:2 Video
  • HDMI and SDI I/O
  • Tabletop Design
  • Store and Forward
  • Core Cloud Compatible

What's in the box:

  • Teradek Prism Flex 855 Portable 4K HEVC/H.264 Encoder
  • 18" 12G-SDI Cable
  • 18" Full Size HDMI Cable
  • 6' PSU 2pin Power to 30W AC Adapter Cable
  • 2x Antenna 2dBi Wi-Fi 2.4/5.8GHz
  • Base Mount
  • Teradek 1 Year Limited Warranty
