Teradek Bolt 4K LT 3G-SDI Transmitter and 12G-SDI Receiver Deluxe Kit, 750' Range, Gold Mount
SKU: TE1215G
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
About Teradek Bolt 4K LT
FEATURED REVIEWS
Just what we needed
This was our church's first venture into wireless video. The Teradek Bolt was the perfect fit for us. Our cam op can run around the entire sanctuary and have zero video loss or latency. You really can't beat this without spending significantly more money.
Industry?s Standard
As you?d expect from Teradek, excellent connectivity and reliability. 0 latency is really there. It?s just the industry?s standard.

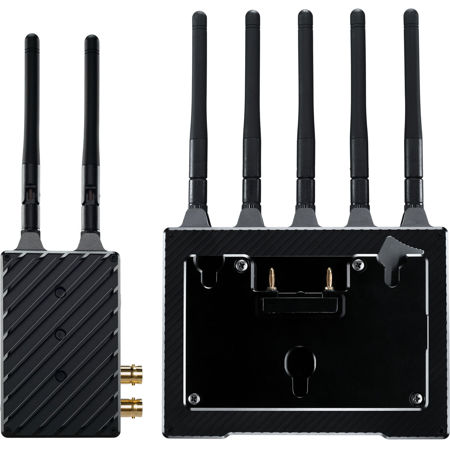

The Bolt 4K LT 3G-SDI 750 TX and Bolt 4K 12G-SDI 750 RX Kit is a zero-delay wireless video transmission system that supports up to 4Kp30 via HDMI and up to 1080p60 via SDI with a line-of-sight range of up to 750 feet (228m). Key features include fast reconnection times, stable connectivity, and intuitive setup with a Bluetooth App for iOS or Android. Both devices are compatible across the entire Bolt 4K product family. via HDMI at a line-of-sight distance of up to 750ft (228m) with no image delay. Key features include increased range, faster reconnection times, easier setup with Bluetooth App for iOS or Android, and more stable connectivity. These devices are cross-compatible with the entire Bolt 4K Family. This set includes both the Bolt 4K LT TX 750 and Bolt 4K LT RX 750.
Zero-Delay 4K Wireless Video
Transmit and receive images at a line-of-sight distance of up to 750ft (228m) with no image delay (>0.001sec).
Transmitter:
• Input: 1x HDMI 2.0 (up to 4Kp30), 1x 3G-SDI (up to 1080p60)
• Output: 1x 3G-SDI (up to 1080p60)
• Lightweight Body with Versatile Mounting: M3 / 1/4"-20
Receiver:
• Output: 1x HDMI 2.0 (up to 4Kp60), 2x 12G-SDI (up to 4K60)
• Mounting: 1/4"-20
• Battery Plates: Gold-Mount battery plate with pass-through power
True HDR
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut. Sends and receives Log-enabled camera signals with wide dynamic range to monitor and achieve balanced highlight and lowlight regions with accurate color reproduction.
Exceptional Wireless Performance
Reliable signal transmission and reception over 13x 40MHz frequencies. Upgraded hardware and less image break-up than previous Bolt generations. Fast reconnection times, automatic signal-quality switching, and a more robust frequency-hopping algorithm. An additional 5GHz radio-frequency link is available for high-traffic locations with excessive interference from other wireless devices.
Send Signal up to 6 Receivers
Link up to 6 RX receivers to any 1 TX transmitter to enable multiple points of viewing.
Universal Cross-Compatibility between all Bolt 4K Devices
Send and receive signals between any Bolt 4K series of devices for expanding workflow requirements.
Camera Metadata
Transmit metadata, timecode, and start/stop flags from most camera manufacturers.
Bolt App for Android and Apple iOS
Remotely pair any TX/RX devices, manually designate specific 5GHz channels, and monitor interference with the 5GHz Spectrum Analyzer and Wireless Health analysis tools.
Teradek Bolt 4K LT Features
- Up to 4Kp30 (HDMI) / 1080p60 (SDI) Video
- 750' (228.6m) Range
- HDMI 2.0, 3G-SDI Inputs
- 3G-SDI, 12G-SDI, HDMI 2.0 Outputs
- Up to 6 RX Multicast
- All Bolt 4K Series TX/RX Compatible Devices
Key Features
- Up to 4Kp30 (HDMI) / 1080p60 (SDI) Video
- 750' (228.6m) Range
- HDMI 2.0, 3G-SDI Inputs
- 3G-SDI, 12G-SDI, HDMI 2.0 Outputs
- Up to 6 RX Multicast
- All Bolt 4K Series TX/RX Compatible Devices
What's in the box:
- Bolt 4K LT 3G-SDI Wireless Transmitter
- Bolt 4K 12G-SDI Wireless Receiver (Gold Mount)
- 3/8" Lightstand Adapter
- Hot Shoe Adapter
- 18" (Bit 118) 2-Pin Connector to PowerTap Cable
- 3' USB Male Type A (Full) to USB Male Type B (Micro) Cable
- Ultra Thin HDMI Male Type A (Full) to HDMI Male Type A (Full) Cable
- SDI 12G BNC to BNC Cable
- Teradek Case Large (Bolt 4k LT TX/2RX)
- (See Specification Section for Additional Included Items)
- Teradek 1 Year Limited Warranty
