Teradek Bolt 4K LT MAX 3G-SDI Transmitter and 12G-SDI Receiver Kit, 3000' Range, Gold Mount
SKU: TE12169G
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
About Teradek Bolt 4K LT MAX

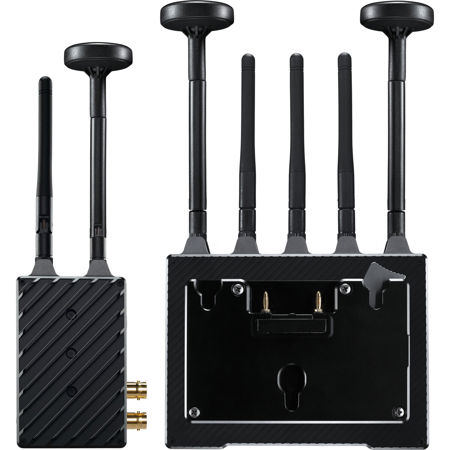

The Bolt 4K LT 3G-SDI MAX TX and Bolt 4K 12G-SDI MAX RX (Gold Mount) Kit is a zero-delay wireless video transmission system that supports up to 4Kp30 via HDMI and up to 1080p60 via SDI with a line-of-sight range over 5000 feet (1524m) in broadcast mode and more with the optional Array 4K Panel Antenna. Key features include fast reconnection times, stable connectivity, and intuitive setup with a Bluetooth App for iOS or Android. Both devices are compatible across the entire Bolt 4K product family.
Zero-Delay 4K Wireless Video
Transmit and receive images at a line-of-sight distance of up to 3000ft (914m) with no image delay (>0.001sec).
Transmitter:
• Input: 1x HDMI 2.0 (up to 4Kp30), 1x 3G-SDI (up to 1080p60)
• Output: 1x 3G-SDI (up to 1080p60)
• Lightweight Body with Versatile Mounting: M3 / 1/4"-20
Receiver:
• Output: 1x HDMI 2.0 (up to 4Kp60), 2x 12G-SDI (up to 4K60)
• Mounting: 1/4"-20
• Battery Plates: Gold-Mount battery plate with pass-through power
True HDR
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut. Sends and receives Log-enabled camera signals with wide dynamic range to monitor and achieve balanced highlight and lowlight regions with accurate color reproduction.
Exceptional Wireless Performance
Reliable signal transmission and reception over 13x 40MHz frequencies. Upgraded hardware and less image break-up than previous Bolt generations. Fast reconnection times, automatic signal-quality switching, and a more robust frequency-hopping algorithm. An additional 5GHz radio-frequency link is available for high-traffic locations with excessive interference from other wireless devices.
Broadcast Mode
Use Standard Mode to link up to 6 RX receivers to any 1 TX transmitter. Switch to Broadcast Mode to transmit to unlimited receivers. Broadcast mode can also increase wireless range up to 5000 feet (1524m).
Universal Cross-Compatibility between all Bolt 4K Devices
Send and receive signals between any Bolt 4K series of devices for expanding workflow requirements.
Camera Metadata
Transmit metadata, timecode, and start/stop flags from most camera manufacturers.
Bolt App for Android and Apple iOS
Remotely pair any TX/RX devices, manually designate specific 5GHz channels, and monitor interference with the 5GHz Spectrum Analyzer and Wireless Health analysis tools.
Teradek Bolt 4K LT MAX Features
- Up to 4Kp30 (HDMI) / 1080p60 (SDI) Video
- 3000' (914.4m) Range. (Over 5000' (1524m) in Broadcast Mode and with the optional Bolt 4K Array Antenna)
- HDMI 2.0, 3G-SDI Inputs
- 3G-SDI, 12G-SDI, HDMI 2.0 Outputs
- Transmit to 6 RX in Standard Mode or unlimited in Broadcast Mode Multicast
- All Bolt 4K Series TX/RX Compatible Devices
