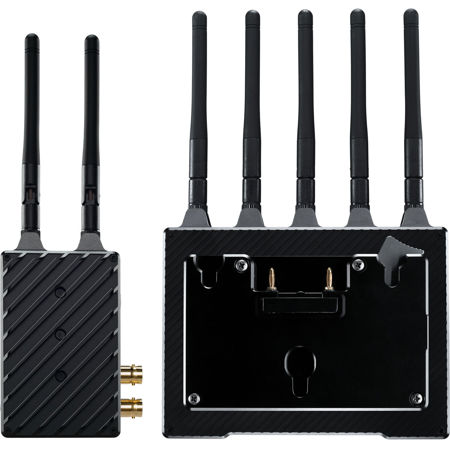

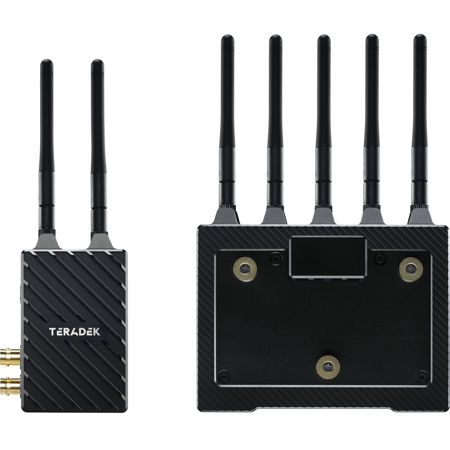

Teradek Bolt 4K LT 3G-SDI Transmitter and 12G-SDI Receiver Deluxe Kit, 1500' Range, Gold Mount

SKU: TE1216G MFR: 10-2160-G
Earn VIP Reward Points

Key Features

  • Experience reliable connection with this Teradek kit, offering stable broadcast equipment.
  • Achieve high resolution video with visually lossless compression for stunning clarity.
  • Enjoy long range wireless video transmission up to 1500' for flexible shooting setups.
  • Set up easily with this wireless transmitter and receiver; perfect for fast-paced shoots.
  • Benefit from low latency, ensuring real-time monitoring for critical video applications.
  • This durable build supports HDMI to SDI cross conversion, enhancing workflow versatility.
See More Product Details
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Teradek 10-2160 Specifications

Additional Included Items

Additional Included Items

Jump to...
  • Additional Included Items

    6' PSU 2-Pin Connector to 30W AC Adapter (Int) Cable
    Offset Mount for Bolt 4K LT TX
    7x Antenna 2dBi WIFI 2.4/5.8GHz (Small Antenna)

Transmitter: Video

Jump to...
  • Video Inputs

    3G-SDI SMPTE 424M standard / 75 Ohm (BNC x 1)
    1x HDMI 1.4b Type-A receptacle

  • Video Outputs

    3G-SDI SMPTE 424M standard / 75 Ohm (BNC x 1)

  • Sdi Ancillary Data Support

    Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit

  • Delay Tx To Rx

    <0.001sec

  • Input Cross Conversion

    Yes, HDMI to SDI

Transmitter: Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30 (HDMI only)
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Transmitter: Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Color Correction

    None

Transmitter: Audio Processing

Jump to...
  • Audio Format

    48kHz 24-bit PCM

Transmitter: Inputs

Jump to...
  • Audio Input

    Embedded SDI/HDMI Audio Input (2 Channel)

Transmitter: Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • Mobile App

    Bolt App

  • Desktop App

    Bolt Manager application for OSX & Windows

  • Usb Interface Functionality

    Upgrade via Micro-USB

  • External Control

    Via Bolt App

  • Bluetooth

    2.4 GHz

Transmitter: Network

Jump to...
  • Antennas

    2 External 2dBi antennas (included)

  • Wireless

    Non-DFS Frequencies:
    5.190 - 5.230 GHz and 5.755 - 5.795 GHz

    DFS Frequencies:
    5.270 - 5.670 GHz

  • Number Of20 MHz Channels

    25 (region dependent)

  • Number Of40 MHz Channels

    13 (region dependent)

  • Channel Bandwidth

    20MHz, 40MHz

  • Rf Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • Rf Power

    19 dbm EIRP (2 external 2dBi antennas) (<80mW transmit power)

  • Rf Sensitivity

    2 External 2dBi antennas (included)

  • Range

    Up to 1500' (457.2m), line of sight

  • Unicast Multicast

    Can connect one Transmitter to up to 6 Receivers

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

Transmitter: Power

Jump to...
  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Battery

    None, optional Sony/Canon dual battery plate

  • Nominal Power Consumption

    9 Watts

Transmitter: Environmental

Jump to...
  • Operating Temperature

    (32-104 Degree F) 0-40 Degree C

Transmitter: Physical

Jump to...
  • Material

    Milled Aluminum(Chassis) and regulation-compliant PCB

  • Mountability

    Multiple mounting options with 1/4"x20 and M3 holes

  • Dimensions

    2.36 x 4.0 x 1.29" (60 x 103 x 33mm)

  • Weight

    7.3 oz (206g)

Receiver: Video

Jump to...
  • Video Outputs

    2x 12G-SDI SMPTE 2082-1 standard / 75 Ohm (accepts 12G-SDI, 6G-SDI, or 3G-SDI)
    1x HDMI Type-A receptacle accepts HDMI 2.0 or HDMI 1.4)

  • Sdi Ancillary Data Support

    Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit

  • Delay Tx To Rx

    <0.001sec

  • Input Cross Conversion

    Yes, HDMI to SDI

Receiver: Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30/50/59.94/60
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Receiver: Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Video Format Conversion Support

    Connect an HD source to the Tx and get a 4K signal out of Rx
    Connect a 4K source to the Tx, get HD resolution out of Rx
    You can also mix & match from a single source:
    4K signal into Tx can be 4K output from 1x Rx and HD output from a 2nd Rx
    Input/output configurations are controlled directly on units or via Bolt 4K app

  • Color Correction

    17x17x17 3D LUT (supports 10-bit color)

Receiver: Audio Processing

Jump to...
  • Audio Format

    48kHz 24-bit PCM

Receiver: Outputs

Jump to...
  • Audio Output

    Embedded SDI/HDMI Audio Output (2 Channel)

Receiver: Interfaces

Jump to...
  • Configuration Interfaces

    OSD with Menu, Joystick Navigation

  • Switches

    On/Off Switch

  • Usb Interface Functionality

    Upgrade via Micro-USB

Receiver: Network

Jump to...
  • Antennas

    5 External 2 dBi antennas (included) or optional Array Panel Antenna

  • Wireless

    Non-DFS Frequencies:
    5.190 - 5.230 GHz and 5.755 - 5.795 GHz

    DFS Frequencies:
    5.270 - 5.670 GHz

  • Channel Bandwidth

    13x 40MHz wide channels

  • Rf Channel Selection

    Auto, Manual
    Manual available for non-DFS Channels

  • Encryption

    AES-256, RSA-1024 key exchange

  • Rf Power

    17 dbm EIRP (one external 2dBi antenna) (<51mW transmit power)

  • Range

    Up to 1500' (457.2m), line of sight

  • Unicast Multicast

    Can connect one Transmitter to up to 6 Receivers

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

Receiver: Power

Jump to...
  • Power Input

    2-Pin Circular locking Connector 6-28 VDC

  • Battery

    Gold Mount battery plate

  • Battery Info

    no battery used

  • Battery Material

    -

  • Battery Type

    -

  • Battery Quantity

    0

  • Nominal Power Consumption

    18 Watts

Receiver: Environmental

Jump to...
  • Operating Temperature

    32-104 Degree F (0-40 Degree C)

Receiver: Physical

Jump to...
  • Material

    Milled Aluminum(Chassis) and regulation-compliant PCB

  • Mountability

    integrated Gold-Mount Male and Female (with pass-through power)
    Multiple mounting options with 1/4"x20 and M3 holes

  • Dimensions

    4.40 x 5.47 x 1" (112 x 139 x 27mm)

  • Weight

    Bolt 4K Rx without antennas (no battery plates): 15.52 oz (440g)
    Bolt 4K Rx with 5x antennas (no battery plates): 17.49 oz (496g)
    Gold-Mount battery plate set (male+female): +6.06 oz (+172g)

  • UPC Code

    818264027851

About Teradek 10-2160

Make your video production seamless with the Bolt 4K LT 3G-SDI Transmitter and 12G-SDI Receiver Deluxe Kit. This state-of-the-art wireless video transmission system offers zero-delay, supporting up to 4Kp30 via HDMI and up to 1080p60 via SDI. With a line-of-sight range of up to 1500 feet (457m), this kit ensures stable connectivity and fast reconnection times, even in challenging environments.

The Bolt 4K LT 3G-SDI Transmitter is equipped with a 1x HDMI 2.0 input (up to 4Kp30) and a 1x 3G-SDI input (up to 1080p60). It also features a 1x 3G-SDI output (up to 1080p60). Its lightweight body is designed for versatile mounting, with M3 and 1/4"-20 options.

The 12G-SDI Receiver, on the other hand, offers a 1x HDMI 2.0 output (up to 4Kp60) and 2x 12G-SDI outputs (up to 4K60). It also features a 1/4"-20 mounting option and a Gold-Mount battery plate with pass-through power.

This deluxe kit supports Rec 2020 HDR in a 10-bit 4:2:2 color gamut, ensuring true HDR and accurate color reproduction. It can send and receive Log-enabled camera signals, balancing highlight and lowlight regions for optimal image quality.

With the Bolt 4K LT 3G-SDI Transmitter and 12G-SDI Receiver Deluxe Kit, you can enjoy exceptional wireless performance. It offers reliable signal transmission and reception over 13x 40MHz frequencies, with less image break-up than previous Bolt generations. It also features a robust frequency-hopping algorithm and an additional 5GHz radio-frequency link for high-traffic locations with excessive interference from other wireless devices.

This kit allows you to link up to 6 RX receivers to any 1 TX transmitter, enabling multiple points of viewing. It also offers universal cross-compatibility between all Bolt 4K devices, allowing you to expand your workflow requirements as needed.

The Bolt 4K LT 3G-SDI Transmitter and 12G-SDI Receiver Deluxe Kit also supports the transmission of metadata, timecode, and start/stop flags from most camera manufacturers. Plus, with the Bolt App for Android and Apple iOS, you can remotely pair any TX/RX devices, manually designate specific 5GHz channels, and monitor interference with the 5GHz Spectrum Analyzer and Wireless Health analysis tools.

Teradek 10-2160 Features

  • Up to 4Kp30 (HDMI) / 1080p60 (SDI) Video
  • 1500' (457.2m) Range
  • HDMI 2.0, 3G-SDI Inputs
  • 3G-SDI, 12G-SDI, HDMI 2.0 Outputs
  • Up to 6 RX Multicast
  • All Bolt 4K Series TX/RX Compatible Devices

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience reliable connection with this Teradek kit, offering stable broadcast equipment.
  • Achieve high resolution video with visually lossless compression for stunning clarity.
  • Enjoy long range wireless video transmission up to 1500' for flexible shooting setups.
  • Set up easily with this wireless transmitter and receiver; perfect for fast-paced shoots.
  • Benefit from low latency, ensuring real-time monitoring for critical video applications.
  • This durable build supports HDMI to SDI cross conversion, enhancing workflow versatility.

What's in the box:

  • Bolt 4K LT 3G-SDI Wireless Transmitter
  • Bolt 4K 12G-SDI Wireless Receiver (Gold Mount)
  • Lightstand Adapter 3/8"
  • Hot Shoe Adapter
  • 18" (Bit 118) 2-Pin Connector to PowerTap Cable
  • 3' USB Male Type A (Full) to USB Male Type B (Micro) Cable
  • Ultra Thin HDMI Male Type A (Full) to HDMI Male Type A (Full) Cable
  • SDI 12G BNC to BNC Cable
  • Teradek Case Large (Bolt 4k LT TX/2RX)
  • (See Specification Section for Additional Included Items)
  • Teradek 1 Year Limited Warranty
