Teradek Wave 7" Touchscreen Smart Streaming Monitor-Encoder
See all Teradek items

Teradek Wave 7" Touchscreen Smart Streaming Monitor-Encoder

SKU: TE1264

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Teradek Wave Specifications

Video

Video

Jump to...

  • Video Inputs

    1x HDMI Type A receptacle

  • Supported Input Resolutions

    1080p 23.98/24/25/29.97/30/50/59.94/60
    1080i 50/59.94/60
    720p 50/59.94/60

  • Video Compression

    H.264 (AVC), baseline/main profile

  • Supported Video Bitrate

    250 kbps to 15 Mbps

  • Supported Resolutions

    1080p
    720p
    480p
    360p
    240p

  • Supported Frame Rates

    10, 14, 20, 25, 30, 50, 60

Network

Jump to...

  • Ethernet

    10/100/1000 BASE-T

  • Wireless

    WiFi: Dual Band MIMO 802.11 ac/ax/a/b/g/n
    Access Point (AP), or Client Mode

  • USB

    USB for external modem support

  • WiFi Channel Selection

    Auto with 3 modes: 2.4 or 5 GHz, Auto (2.4 GHz only), Auto (5 GHz only)
    Manual: Configurable to specific channelsNetwork ProtocolsTCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP

Protocol Support

Jump to...

  • Video Transport Protocols

    Supported: RTMP(S), Airmix

  • Bonding

    Requires a Sharelink subscription.

  • Platform Integration

    Facebook, YouTube Live, Vimeo, Wowza

  • Cloud Services

    Sharelink

Audio

Jump to...

  • Audio Input

    Embedded HDMI audio input, 2-Channel
    3.5mm analog audio input

  • Audio Output

    3.5mm TRRS headphone output, adjustable volume

  • Audio Compression

    AAC-LC

  • Supported Audio Bitrate

    HD: 256 kbps
    High: 192kpbs
    Medium: 128kpbs
    Low: 96 kpbs
    Mobile: 48kpbs

Panel

Jump to...

  • Type

    IPS LCD 7"

  • Nits

    1000 Daylight viewable

Interfaces

Jump to...

  • Configuration Interface

    OSD with touchscreen, Feature-rich Web UI for configuration and control

  • Switches

    On/Off and reset switch

  • Recording/Storage

    Full SD/SDHC (class 6 and above) formatted FAT32, USB formatted FAT 32

  • Mobile App

    Wave App for iOS or Android devices

  • USB Interface Functionality

    2x powered USB 2.0 host ports

Power

Jump to...

  • Power Input

    USB-C connector, power adapter and USB-C cable included

  • Battery

    Plates for external Sony L-series

  • Nominal Power Consumption

    Up to 12W (with optional internal modem: up to 14W)

Battery

Jump to...

  • Battery Info

    Optional, Not included

  • Battery Material

    Lithium-ion

  • Battery Quantity

    2

  • Battery Type

    -

Physical

Jump to...

  • Construction

    Machined aluminum and ABS Plastic

  • Mountability

    1/4" 20 mounting holes with stand adapter

  • Dimensions (W x H x D)

    7 x 4.78 x 1" (178 x 122 x 26mm)

  • Weight

    24 oz (680g)

Other

Jump to...

  • UPC Code

    818264027004

About Teradek Wave

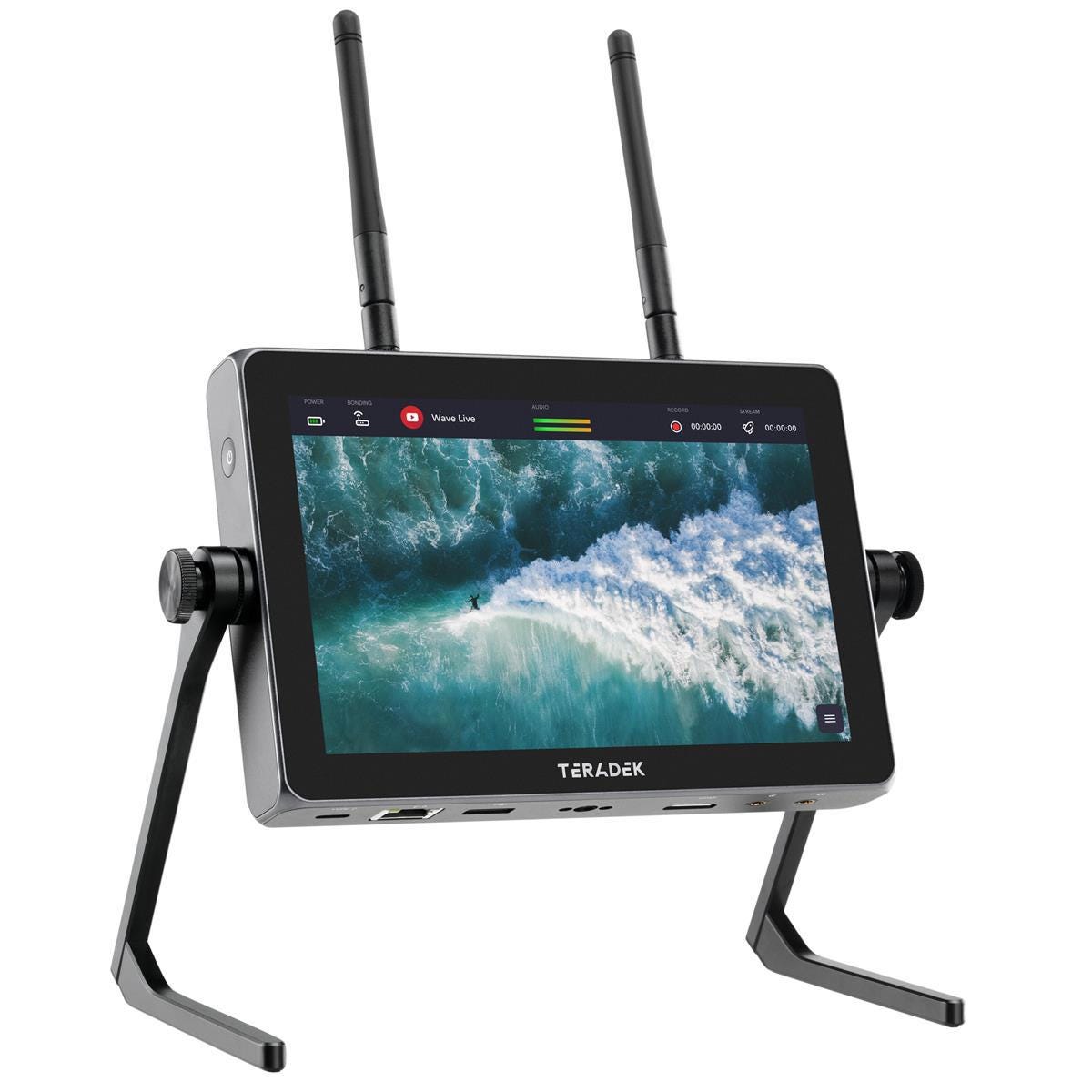

Teradek Wave.

Reinvent your live streaming workflow with Teradek Wave, the only live streaming monitor that handles encoding, smart event creation, network bonding, multistreaming, and recording - all on a 7" daylight-viewable touchscreen display. Watch your live productions in real-time on the same device you're using for encoding with the quality and reliability expected in traditional broadcasts. With Wave, you can prepare multiple events ahead of time using Wave's innovative project workflow: FlowOS.

Teradek Wave

Features.

  • Multi-Destination Streaming
  • 1000nit daylight-viewable display
  • Two portable, continuous powering solutions for backup in the event of an outage
  • Hot-swappable Sony L-series batteries
  • USB-C power connector
  • Switch between mounting on camera or setting on table top
  • 1/4"- 20 mounting holes
  • Stand included
  • Durable machined aluminum body
  • Stream in AVC/H.264
  • Compatible with YouTube, Facebook, Vimeo, Wowza, and any other RTMP(S) platform
  • Video Quality: Up to 1080p60
  • On-board recording
  • Monitor your stream from the Wave mobile app
  • FlowOS user interface purpose-built for Wave
  • Smart Event Creator
  • Live monitoring of video and stream settings/analytics

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Multi-Destination Streaming
  • 1000nit daylight-viewable display
  • Two portable, continuous powering solutions for backup in the event of an outage
  • Hot-swappable Sony L-series batteries
  • USB-C power connector
  • Switch between mounting on camera or setting on table top

What's in the box:

  • Teradek Wave 7" Touchscreen Smart Streaming Monitor-Encoder
  • Desktop Mount
  • Power Adapter
  • USB Type-C Cable
  • USB-C Connector
  • (Batteries Not Included)
  • Teradek 1 Year Limited Warranty
