Teradek RT Latitude MDR-SK Sidekick 3-Channel Motor Driver Receiver for RED DSMC2 Camera
SKU: TE150012 MFR: 15-0012
Earn VIP Reward Points
Key Features
- Achieve precise focus control with the Teradek RT Latitude MDR-SK receiver.
- Seamlessly integrates with your RED DSMC2 camera for professional filmmaking.
- Enjoy smooth motor operation thanks to the Sidekick's advanced technology.
- Mounts easily to your rig, offering a compact design for on-the-go shooting.
- Durable aluminum build ensures long-lasting performance in demanding conditions.
- Adjustable settings provide ultimate control over your lens focus and zoom.
Ships from Manufacturer?
Free Shipping
See Options
Qty
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$89.99
3 Year
$109.99
4 Year
$139.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Teradek RT Latitude MDR-SK

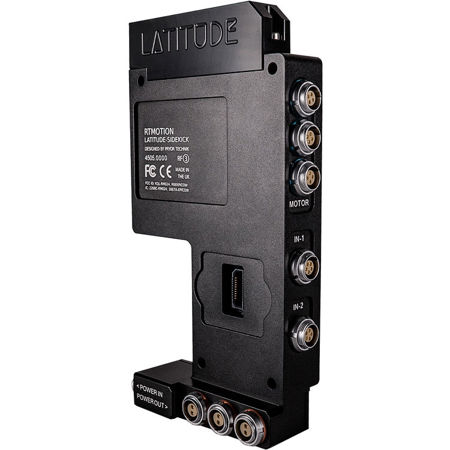

The Latitude Sidekick motor driver receiver is designed to fit seamlessly onto the side of any RED DSMC2 camera. It supports up to 3 motors for FI+Z control (Focus, Iris, and/or Zoom) and can control run/stop on DSMC2 cameras. The system receives commands from any Teradek 4-Axis or 6-Axis Controller at up to 5000ft (1.5km) away and includes automatic or manual (softstop) calibration with a proprietary algorithm for torque control and lens protection. Since the Latitude Sidekick integrates with all RED DSMC2 cameras, it allows users to control EF/AF lens focus/iris with their own internal motors, in addition to camera shutter, ISO, run/stop and button features (2x magnification, edge, focus assist).
Note:
The Latitude Sidekick MDR-SK Wi-Fi range booster is no longer included and the SK will be provided with a flat Latitude antenna cap.
Teradek RT Latitude MDR-SK Features
- Wireless reception up to 5000'
- Controls run/stop, shutter, ISO, and other RED DSMC2 camera parameters
- Automatic/manual calibration with proprietary algorithm for torque control
- Passes data through RED camera data pins
- Drives up to 3 lens motors and/or electronic focus and iris on Canon & Nikon lens using their built in motors
- This module requires more power than the BRAIN can supply from the Sidekick port, so you need External Power and CTRL cables. These connect neatly at the back/bottom of the module
- The 3x LM 2-pin power outputs are passed through directly at the same voltage as the Power-Input
- The MDR-SK does Not have Wi-Fi built in as it is for use with DSMC2 cameras which have integral Wi-Fi
- The RED Sidekick is fully supported and will power and communicate normally. The RED DSMC2 Side Handle is Not supported due to physical warranty concerns
Warranty Information
This product has a limited warranty of 12 months.
https://teradek.com/pages/warranty-information
