Telex TR-82N 2-CH Narrow Band Binaural Transceiver with A4M Jack, B3: 536-554MHz
See all Telex items

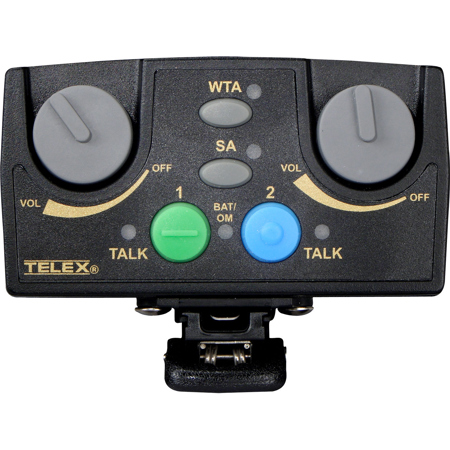

Telex TR-82N UHF 2-Channel Narrow Band Binaural Wireless Beltpack Transceiver with A4M Headset Jack, Frequency Band B3: 536-554MHz

SKU: TE82NB3US
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Telex TR-82N 2-CH Narrow Band Binaural Transceiver with A4M Jack, B3: 536-554MHz Specifications

  • Transmitter Type

    Synthesized

  • Receiver Type

    Dual Conversion Superheterodyne, Synthesized, FM

  • RF Frequency Range

    B3 Frequency, 536-554MHz

  • Transmit Power

    50mW max.

  • Microphone Input

    A4M Connector

  • Antenna Type

    2x 1/4 Wave

  • Local Headset Output

    40mV Output into 600 Ohms (1% distortion)

  • Power Requirements

    6x AA Alkaline; 1x NiMH Rechargeable

  • Battery Life

    AA: 12 hours (Continuous)
    NiMH: 11 hours (Continuous)

  • Dimensions

    3.75 x 5.05 x 1.65" (9.53 x 12.83 x 4.19cm)

  • Weight

    21 oz (595.34g)

About Telex TR-82N 2-CH Narrow Band Binaural Transceiver with A4M Jack, B3: 536-554MHz

The TR-82N is a 2-channel, binaural UHF frequency-agile wireless beltpack for use with the BTR-800. The unit features a durable met-cast magnesium case, an LCD based graphical user interface and stage announce activation. The TR-82N is designed with several advanced technology functions, including wireless talk around (WTA) activation, the patented Enhanced ClearScan channel search, detachable antennas and an auto-sensing headset connector that automatically switches between electret and dynamic headset mics. The unit has an A4M headset jack and works in the B3 frequency range.

Telex TR-82N 2-CH Narrow Band Binaural Transceiver with A4M Jack, B3: 536-554MHz Features

  • Narrow Band wireless provides modulated band width which allow more users per channel in the cramped UHF spectrum
  • Rugged all-metal 2-channel wireless UHF beltpack with detachable, color-coded 1/4 Wave antennas on stud type connectors
  • Huge selection of UHF frequencies, 24 factory preset groups
  • 1000' line-of-sight range, AA or NimH rechargeable battery operation with up to 12-hr. continuous battery life
  • Dual, latchable A and B channel talk buttons, full LED complement for all functions
  • Cast magnesium construction for increased durability, lighter weight
  • Proprietary Intelligent Power Control decreases output power of beltpack in closer proximity to Base Station by 10dB, eliminates Base Station front-end overload and desensing
  • Top panel Battery/Overmodulation and Talk LED lights
  • Automatic dynamic or electret mic type detection
  • Menu and Set, Up and Down rear panel parameter and navigation buttons display for simplified control
  • Individual On/Off and Volume control knobs, talk buttons with latching function with easy top panel access

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Telex TR-82N UHF 2-Channel Narrow Band Binaural Wireless Beltpack Transceiver
  • 2x 1/4 Wave Detachable Antennas
  • NiMH Battery Pack
  • Screwdriver
  • Owner's Manual
  • Telex 3 Year Warranty
