Telex ACS-101 Specifications

  • Antenna Connectors

    Standard TNC Receptacles

  • AC Input Power

    100 120VAC, 60Hz, 6A max. or 200 240VAC, 50Hz, 6A max

  • AC Input Fuse

    10A, 250V, 3AG

  • DC Output Power

    12VDC, 5A for each output

  • DC Output Jacks

    Two, 5.5mm x 2.1mm Jacks

  • DC Output Fuses

    5A, 250V, 5mm x 20mm, slow blow

  • Splitter: Frequency Range

    614 746MHz

  • Splitter: Output IP3

    Greater than 30dB

  • Splitter: Net Gain

    0 dB Typical

  • Splitter: Noise Figure

    20dB between adjacent ports

  • Splitter: Minimum Isolation

    Greater than 20dB between non-adjacent ports

  • Combiner: Frequency Range

    470 870MHz

  • Combiner: Net Gain

    0 dB (Maximum)

  • Combiner: Noise Figure

    10dB Typical

  • Combiner: Output 3rd order IM

    -55dBc at + 17dBm input on each transmitter

  • Combiner: Overheat Sensor

    Shuts down amplifier and indicates on front panel if heartsink rises above 75 deg. C (167 deg. F)

  • Dimensions (W x H x D)

    With Rack Ears Attached: 19 x 3.50 x 14.63" / 48.26 x 8.89 x 37.16cm

  • Weight

    With Rack Ears Attached: 11lbs / 4.99kg

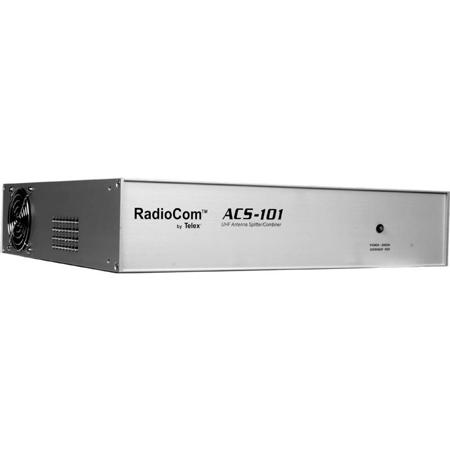

About Telex ACS-101

The ACS-101 (Antenna Combiner-Splitter 10-to-1) is an amplified and filtered broadband splitter-combiner. It allows up to ten UHF base stations to use only one (1) transmit and one (1) receive antenna. The antenna combiner section contains innovative hybrid coupling, amplifying and matching technology to combine ten transmitters to one (1) output with very low intermod distortion.

The antenna splitter section has broadband input filtering and amplification to maintain signal levels through the splitters. High output isolation between ports is also achieved. The industrial strength power supply of the ACS-101 supplies voltage and current to two (2) outputs on the product. Each output can supply up to 5 Amps at 12VDC.

Telex ACS-101 Features

  • Ideal for use with BTR-1, RKP-4B, BTR-500, BTR-600, BTR-700 wireless intercom systems
  • BTR-800 and BTR-80N with dual TX modification and set to 50mW or below per TX channel may also be used with the ACS-101
  • Two (2) power outputs supply up to 5 Amps at 12VDC each
  • The two (2) power outputs supply up to 10 BTR-1 or RKP-4B transceivers. Standard IEC-320 Power Input Connector
  • 115VAC or 230VAC operation
  • High-Quality TNC connectors for consistent impedance across the entire frequency range
  • Rack mount brackets included for 19" (482.6mm) rack
  • Power light/overheat condition indicator
