ALP-600 UHF Bi-Directional Log Periodic Antenna
1st Sections: 1.25 (dia.) x 20.75" / 3.18 (dia.) x 52.71cm
2nd Section: 1.12 (dia.) x 22" / 2.84 (dia.) x 55.88cm
3rd Section: 1 (dia.) x 23.25" / 2.54 (dia.) x 59.06cm
4th Section: 0.87 (dia.) x 25" / 2.21 (dia.) x 63.50cm
Overall Extended Length: 90.25" / 229.24cm
Closed Length: 25.25" / 64.14cm

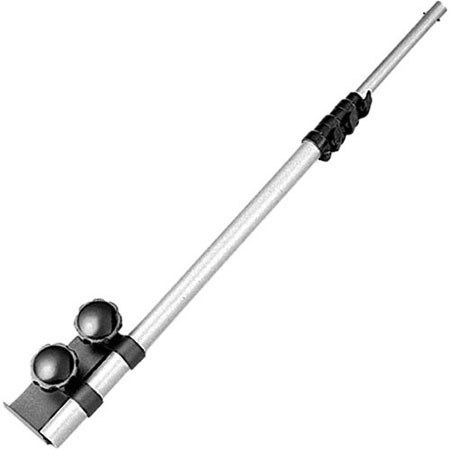

The ALP-600 telescoping antenna mast is a four section, lightweight, clear anodized, aluminum mast. The base section diameter is 1.5" reducing to 7/8" diameter at the top section. All the sections are captive with cast black bushings.
Mast Extension
Extend top section first. Turn knob on bushing to unlock. Slide the captive section until full extension is achieved. Attach antennas to ALP-600 telescoping antenna mast. 1.Unlock the next section and extend fully. Repeat this procedure until antenna mast is completely extended and ready for insertion into the mounting bracket.
Mast Dismantlement
Remove the ALP-600 Telescoping Mast from the mounting bracket. While holding the second section of mast, unlock bushing and slide section into base section. Repeat procedure until only the last section is extended. Remove antennas from mast, depress into base. Lock all bushings when mast is completely broke down.
