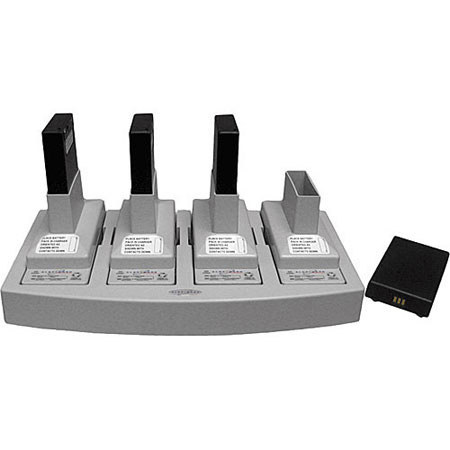

Telex RTS BC800NM4 4-Bay Battery Charger with NiMH Batteries and US Power Cord
See all Telex items

Telex RTS BC800NM4 4-Bay Battery Charger with NiMH Batteries and US Power Cord for TR-1/700/800/825/RKP-4 UHF Beltpacks

SKU: TEBC800NM4
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Telex BC800NM4 Specifications

  • Material

    ABS KJW fire retardant plastic, textured

  • ESD

    8KV continuous contact discharge
    15KV from air to all surfaces without contact

  • Humidity

    95% relative humidity, non-condensing

  • Drop

    Unit functions normally after 4ft/1.2m drop to concrete

  • Storage Temperature

    -40 deg. F to 122 deg. F (-40 deg. C to 50 deg. C)

  • Operating Temperature

    32 deg. F to 122 deg. F (0 deg. C to 50 deg. C)

  • Power Supply (Universal)

    90V 230VAC, 50/60Hz

  • Output

    15VDC, 5A or 24VDC, 4.5A

  • Safety Standards

    Charger and power supply UL listed (UL 1950), CSA Certified (C 22.2 No. 223)
    Compliant to FCC part 15 Class A and CE Marking (Electromagnetic Compatibility) Directive 2004/108/EC and Low Voltage Directive 2006/95/EC
    C15PR-22 Class B

  • Rapid Charging

    Charges batteries to 90+% capacity in 2 hours or less

  • Complete Charge

    Completes 100% capacity charge in 4 hours or less

  • Conditioning

    When activated by the user, completely discharges a battery and automatically switches to charging mode

  • Maintenance Charge

    Maintains the battery at optimum capacity indefinitely

  • Power LED

    Indicates POWER to charging slot

  • Conditioning/Charging LED

    Flashing indicates discharging process
    Solid indicates battery pack is being charged

  • Reject LED

    Flashing Indicates Faulty Battery

  • Ready LED

    Solid indicates battery charged

  • Dimensions (W x H x D)

    13 x 4 x 7" (33.02 x 10.16 x 17.78cm)

  • Weight

    3.51 lbs (1.59kg)

  • UPC Code

    701001055012

About Telex BC800NM4

The BC-800NM4 4-bay and BC-800NM single-bay battery chargers provide users with a full-featured charger and conditioning unit. Both chargers are specifically designed to charge the BP-800NM rechargeable battery pack utilized by the TR-700, TR-800, TR-825 and TR-1, RKP-4 and the new TR-80N and TR-82N Narrow Band beltpacks. Both BC-800NM4 and BC-800NM battery chargers offer a conditioning cycle, status indicators and rapid charge capability.

The BC-800NM4 and BC-800NM also offers Intelligent Charging" optimizing the battery charge cycle and maintains the battery pack at peak capacity for extended periods of time.

Conditioning Cycle
Provides built-in maintenance capability to maximize battery cycle life.

Status Indicators
Charging, Ready, Rejected (dead battery), Conditioning Cycle and Power LED indicators make the BC800NM simple and easy to use.

Intelligent Charging
• Optimizes the battery
• Battery can remain in the charger indefinitely
• Maintains battery at peak capacity.

Rapid Charge Capability
Charges in less than two (2) hours.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Telex RTS BC800NM4 4-Bay Battery Charger
  • 4 x BP-700NM NiMH Batteries
  • US Power Cord
  • Telex RTS 3 Year Limited Warranty
