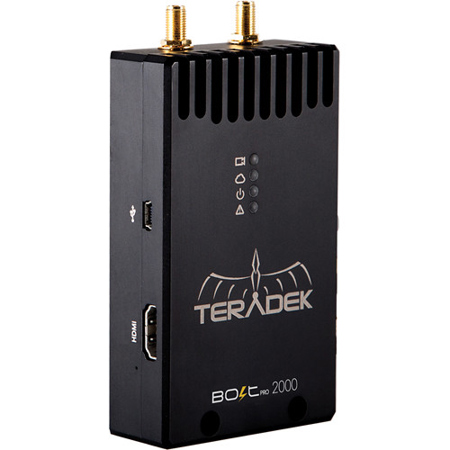

Teradek Bolt Pro 2000 3G-SDI and HDMI Wireless Video Transmitter
Teradek Bolt Pro 2000 Video #1
Teradek Bolt Pro 2000: Picture 1 thumbnail
See all Teradek items
29% Off

Teradek Bolt Pro 2000 3G-SDI and HDMI Wireless Video Transmitter, Up to 2000' Transmission Range, 5.19-5.23 GHz and 5.755-5.795 GHz Non-DFS Frequency

SKU: TEBOLT991 MFR: 10-0991
Be the first to review this itemAsk a Question
$3,590.00
$5,090.00
Save: $1500 (29%)
OR
$300/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points
See all Used options (1) from $817

Key Features

  • Experience stable signal wireless video transmission up to 2000' for professional shoots.
  • Achieve high resolution video with 3G-SDI and HDMI inputs, perfect for broadcast equipment.
  • Enjoy low latency (<0.001sec) for real-time monitoring, ensuring seamless video production.
  • Set up your wireless video transmitter easily with hot-shoe mount & multiple options.
  • Benefit from a durable build with milled aluminum, designed for reliable field use.
  • Secure your content with AES-128 encryption, providing peace of mind for sensitive projects.
See More Product Details
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$129.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Teradek Bolt Pro 2000 Specifications

  • Input

    3G-SDI and HDMI

  • Video resolution

    1080p60/59.94/50/30/29.97/25/24/23.98
    1080psf30/29.97/25/24/23.98
    1080i60/59.94/50
    720p60/59.94/50
    480p59.94/576p50 (via HDMI ports only)
    480i(NTSC)/576i(PAL)

  • Color Sampling

    Depends on the input/output types and RX settings; SDI 10-bit with no format conversion and FPGA v.1.1.0 or later; 8-bit color for the rest

  • Video Inputs

    1 x 75 Ohm BNC
    1 x Type A receptacle HDMI

  • Video Outputs

    1 x 75 Ohm BNC(Loop-out)

  • Delay(TX to RX)

    <0.001sec

  • Audio Format support Wireless

    48kHz 24-bit PCM

  • Frequencies

    Non-DFS Frequencies:
    US : 5.19 - 5.23 GHz and 5.755 - 5.795 GHz
    DFS Frequencies:
    US : 5.27 - 5.55 GHz and 5.67 GHz

  • RF power

    22dbm EIRP(with two 5dbi TX antennas)

  • Range

    Up to 2000' line of sight

  • Unicast / Multicast

    Yes

  • Encryption

    AES-128

  • Noise rejection

    Can coexist with Wi-Fi and 5GHz cordless phones

  • Input Power

    2-Pin Lemo 7-28 VDC

  • Internal Battery

    No

  • Power Consumption

    1080p60: 7.7 Watts

  • LCD Screen

    No

  • Firmware

    Upgrade via Mini-USB

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Chassis Material

    Milled aluminum

  • Mountability

    Hot-shoe Mount
    Multiple mounting options with 1/4" holes

  • Dimensions

    4.3 x 2.6 x 1.0" / 10.92 x 6.60 x 2.54cm

  • Weight

    9.5oz / 269.32g

  • UPC Code

    818264020036

About Teradek Bolt Pro 2000

The Teradek Bolt 2000 is a zero delay wireless video system that transmits uncompressed 1080p60, 4:2:2 video up to 2000ft over the unlicensed 5GHz band. Bolt 2000 is multicast capable up to 4 receivers and comes in 3G-SDI, HDMI and dual input/output varieties. All Bolt systems include the new GRAB engine, which allows users to output over USB 3.0 directly into a DIT cart or laptop.

USB 3.0 GRAB Engine
Capture cards are a thing of the past with Teradek's new GRAB Engine. Every Bolt RX includes a USB 3.0 output that allows you to ingest Bolt's uncompressed video feed directly into a computer or DIT cart with no added delay.

Real-Time Cross Conversion & Extras
All Bolt models support real-time format conversion from TX to RX, allowing you to automatically cross convert from HDMI to 3G-SDI (or vice versa) without any extra hardware. Each model also outputs a test pattern when the video signal is lost and both the 600 and 2000 models support quick RX pairing via the OLED screen and manual frequency selection.

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience stable signal wireless video transmission up to 2000' for professional shoots.
  • Achieve high resolution video with 3G-SDI and HDMI inputs, perfect for broadcast equipment.
  • Enjoy low latency (<0.001sec) for real-time monitoring, ensuring seamless video production.
  • Set up your wireless video transmitter easily with hot-shoe mount & multiple options.
  • Benefit from a durable build with milled aluminum, designed for reliable field use.
  • Secure your content with AES-128 encryption, providing peace of mind for sensitive projects.

What's in the box:

  • Teradek Bolt Pro 2000 3G-SDI and HDMI Wireless Video Transmitter
  • Hot Shoe Adapter
  • 2x Wireless Antennas
  • Bit 118 P-tap to 2-pin Lemo
  • SDI Cable
  • Teradek 1 Year Limited Warranty
