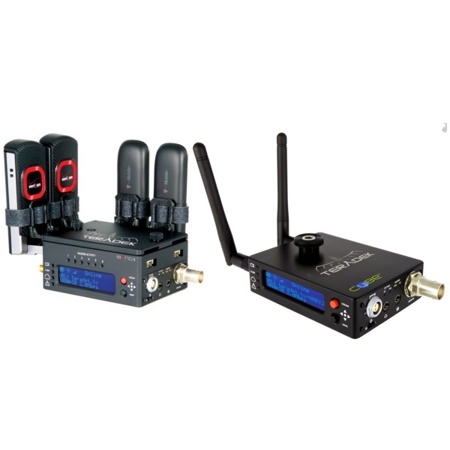

Teradek Bond II HD-SDI H.264 Cellular Bonding Solution with MPEG-TS and Cube 355 Decoder

Bond II: Integrated Camera-Top H.264 Cellular Bonding Solution
The Teradek Bond line of cellular bonding solutions allows video professionals to broadcast 1080p HD video over aggregated bandwidth from several network interfaces, including 3G/4G/LTE, Wi-Fi, BGAN, Ethernet and Fiber. Bond devices utilize hardware-based high profile H.264 compression, resulting in very low power consumption and long run times. Each bonding solution offers a local monitoring capability on iOS devices, quick access to settings via an OLED display and IFB for communication from the studio to the field. All Bond devices require a Sputnik server, which converts each bonded feed into a standard video format that can be sent to any streaming platform on the Web or to several

· Six USB slots for 3G/4G/LTE modems, BGAN, Ethernet, Wi-Fi
· Modem mounting system
· 250 Kbps to 10 Mbps
· HD-SDI, SD-SDI: BNC input
· Supports all standard resolutions and frame rates up to 1080p30.
· IFB support

Sputnik Server Dashboard GUI
Sputnik is Teradek's free software application between Bond and your streaming destination. Sputnik is designed to run on a Linux computer either in the cloud using Amazon EC2) or on a local server with a single, publicly addressable TCP port. The software recombines the packets from your cellular modems into a cohesive stream that can be sent to an H.264 decoder or viewed online.

Core
Sputnik also integrates with Core (coming soon), a new cloud-based encoder fleet management system. From an intuitive Web GUI, users are provided with extensive control over many parameters of connected Teradek IP video devices. Core also offers a unique drag and drop workflow that allows you to direct video feeds from any encoder to any number of decoders in real time.

List of Approved Modems
· ATT: USBConnect Momentum 4G (Sierra Wireless Aircard 313U)
· T-Mobile: Jet 2.0 (Huawei e366)
· Telstra: BigPond Ultimate (Sierra Wireless Aircard 312U)
· Telstra: BigPond 4G (Sierra Wireless Aircard 313U)
· Verizon: Pantech UML290
· Vodafone: K3805-Z, K5005 (Huawei e398)

Cube-355 Decoder
The Cube 355 is a wireless video decoder that outputs high definition video via HD-SDI for use with video switchers and professional monitors. This new device decodes IP video from Teradek encoders via dual band Wi-Fi and Ethernet and includes many of the same great features of the original Cube decoders such as a compact aluminum chassis and low power requirements. To enhance the Cube family of decoders, Teradek has added a variety of new hardware refinements to increase ease of use and versatility.

OLED
Cube's new OLED enables users to rapidly change and review the settings of their unit in addition to providing real-time feedback for wireless connectivity. No longer are computers or iPads needed for configuration; every feature is a simple click away.

Li-ION Battery
Cube's built-in Li-ION battery will give users up to 2 hours of runtime, which allows for seamless battery swapping or quick broadcasts. The battery can also be charged from an AC adapter or even a suitable external battery such as an Anton Bauer.

MIMO Wi-Fi
The new MIMO Wi-Fi dual band (2.4/5.8 GHz) greatly improves wireless performance. With this new feature you will achieve a greater range and improved video quality in congested environments.

Micro USB
Cube's micro USB port will charge the new internal battery.
