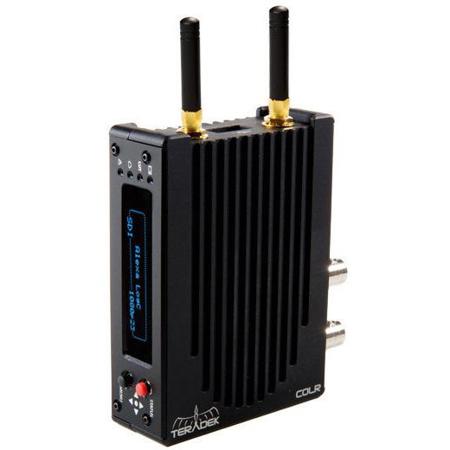

Teradek COLR 3D LUT 33pt HDMI/HD-SDI Converter with Wi-Fi

SKU: TECOLOR3D

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Teradek COLR 3D Specifications

  • Video Inputs

    HDMI: Full Size
    3G-SDI, HD-SDI SD-SDI: BNC

  • Video Output

    HDMI: Full Size
    3G-SDI, HD-SDI SD-SDI: BNC

  • Supported Resolutions

    1080p 23.98/24/25/29.97/30/50/59.94/60
    1080i 50/59.94/60
    1080PsF 23.98/24/25
    720p50/59.94/60
    480p59.94, 576p50 (HDMI only)
    480i59.94, 576i50
    HDMI input supports 8-bit RGB 4:4:4, 8-bit YCrCb 4:4:4, 12-bit YCrCb 4:2:2
    HDMI output is 8-bit RGB 4:4:4
    SDI input/output is 10-bit YCrCb 4:2:2

  • Video Processing

    CDL/1024 1D LUT (supports 10-bit color)
    33x33x33 3D LUT (supports 10-bit color)
    Custom OSD tools
    Built in Video Scaler, Deinterlacer, frame rate converter
    Save and Load screen images
    Test Pattern Generator for Calibration

  • Protocol Support

    Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP (TBD), SSL

  • Audio Input/Output

    Embedded HDMI Audio Input
    Embedded SDI Audio Input
    Embedded HDMI Audio Output
    Embedded SDI Audio Output

  • User Interface

    Feature-rich iOS UI for configuration and control
    Simple WebUI for network configuration
    OLED LCD Display with joystick navigation buttons
    On/Off switch
    Powered USB 2.0 host port

  • Network

    Ethernet: 10/100/1000BASE-T
    Wi-Fi: 2.4/5GHz 802.11 ac/a/b/g/n MiMO

  • Power

    2 Pin Lemo Power input
    Nominal Power Consumption: 5W - 8W
    Auxiliary Power Input: 6-28V DC

  • Dimensions (W x D x H)

    2 x 1 x 4" / 50.80 x 25.40 x 101.60mm

  • Weight

    6oz / 170.10g

  • UPC Code

    854980006916

About Teradek COLR 3D

Overwhelm your senses with the innovative and compact COLR 3D LUT 33pt HDMI/HD-SDI Converter with Wi-Fi. This high-quality, durable device from the reputable brand, Teradek, is not just a real-time LUT box, but also a camera control bridge and an HDMI/SDI cross-converter, all packed into one user-friendly package.

Designed to integrate seamlessly with Pomfort LiveGrade Pro, this device empowers DITs and colorists to deliver the perfect look every time. Whether you're preparing your camera, working on color timing, or on camera, the COLR 3D LUT Converter ensures that directors, ACs, and DITs have the visual clarity they need.

The device comes with multiple presets, combining CDL and 33 point 3D LUTs, which can be stored on the device for quick conversion or custom looks at the touch of a button. With its built-in Wi-Fi feature, you can easily control and monitor the device remotely, providing you with fine control of your looks over Wi-Fi, Ethernet, or via USB.

The COLR 3D LUT Converter is universally compatible, supporting a wide range of camera signals from GoPro to ALEXA. It can convert RAW or LOG signals for monitoring, and sync every camera's look to show directors their vision while shooting. It also enables wireless camera control for Ethernet-enabled cameras, including FoolControl for RED digital cinema cameras and ARRI packages.

Whether your production requires industry-standard color and gamma-accurate monitors or large consumer-grade screens, the COLR 3D LUT Converter is compatible. Its built-in signal converter and simultaneous HDMI and SDI outputs ensure that versatility is never a luxury.

As part of the Connected Set initiative, the COLR 3D LUT Converter encourages seamless integration between all Teradek products, streamlining on and off-set workflows. This supports a consistent workflow throughout the production process, whether on-set with zero delay transmission, iPad monitoring, or for off-site dailies review and final color grading. Stay ahead of the curve with free firmware upgrades and native integration with other Teradek products including Bolt, Cube, and LOKR.

Experience the future of live streaming with the COLR 3D LUT 33pt HDMI/HD-SDI Converter with Wi-Fi.

Teradek COLR 3D Features

  • High-quality 3D LUT 33pt HDMI/HD-SDI Converter with built-in Wi-Fi for seamless live streaming
  • Compact and durable device from reputable brand, Teradek, perfect for professional videography
  • Innovative integration with Pomfort LiveGrade Pro for optimal color grading control
  • Supports a wide range of camera signals from GoPro to ALEXA, ensuring universal compatibility
  • Features multiple presets and simultaneous HDMI and SDI outputs for versatile use
  • Part of the Connected Set initiative for streamlined on and off-set workflows

Key Features

  • High-quality 3D LUT 33pt HDMI/HD-SDI Converter with built-in Wi-Fi for seamless live streaming
  • Compact and durable device from reputable brand, Teradek, perfect for professional videography
  • Innovative integration with Pomfort LiveGrade Pro for optimal color grading control
  • Supports a wide range of camera signals from GoPro to ALEXA, ensuring universal compatibility
  • Features multiple presets and simultaneous HDMI and SDI outputs for versatile use
  • Part of the Connected Set initiative for streamlined on and off-set workflows

What's in the box:

  • Teradek COLR 3D LUT 33pt HDMI/HD-SDI Converter
  • Power Supply Unit 2pin Lemo to 18 w AC Adapter
  • 2x Antennas Straight Wi-Fi 5.8GHz
  • Mini-USB to USB Cable
  • Pomfort LiveGrade Discount Pamphlet
  • Trial Code for Pomfort LiveGrade Pro
  • Teradek 1 Year Limited Warranty
