Telex EMS-4001 4 Channel Main Station for Wired Intercom System
SKU: TEEMS4001
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Telex EMS-4001
The Telex EMS-4001 integrates four (4) powered channels with talk, listen and call controls in a single rack mount unit. Saves on rack mount hardware and eliminates power supply to expansion station interconnect cables. Connects directly to an MS-2002, MS-4002 or US-2002 Master Station to add four (4) complete powered channels. Or connects to a previous EMS-4001 or ES-4000A Expansion Station to add another four (4) powered channels (up to 20 channels total). Provides automatic current limiting during short circuits or overloads. Front panel fault indicator provided for each channel.
Mic kill turns off all microphones on a selected expansion channel, or all channels, using the master station's Mic Kill key. Each expansion channel has its own program input. Connect any line-level audio source for monitoring in the master station's speaker or headset and for routing to the expansion channel if desired. When program audio is routed to the channel it can be set to interrupt while the masterstation operator is talking on the channel.
Binaural (Stereo) Listening

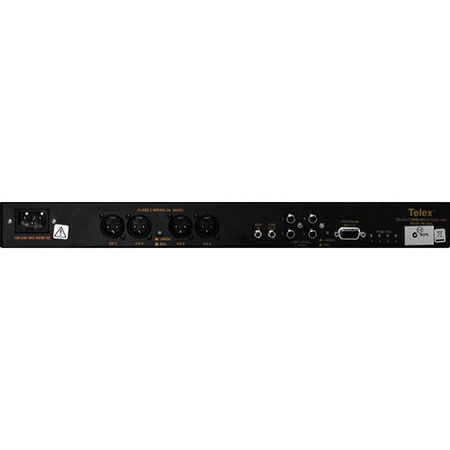

If the master station is equipped with external powered speakers can assign the channels to either right or left speaker. There are also four (4) additional program inputs on the back for each added channel. Instantaneous Auto Reset (IAR), the newest technology in performance and safety, which uses a revolutionary new circuitry that dynamically monitors line fault conditions. Then, when the fault is removed, automatically brings individual power supply channels up. It is Clear-Com Compatible.
