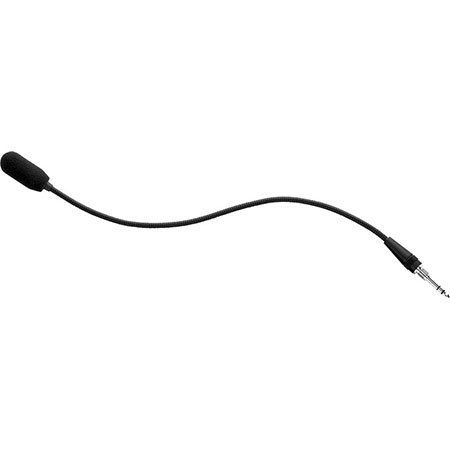

Telex MCP-90-18 18" Panel Mount Gooseneck Microphone
See all Telex items

Telex MCP-90-18 18" Panel Mount Gooseneck Microphone, 100Hz to 15,000Hz Frequency Response, 102dB Dynamic Range, <500uA Current Consumption

SKU: TEMCP9018
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Telex MCP-90-18 Specifications

  • Generation Element

    Condenser, back-Electret

  • Frequency Response

    100Hz to 15,000Hz

  • Polar Pattern

    Cardioid

  • Open Circuit Voltage

    4.5mV (-47dB)/Pascal at 1kHz

  • Dynamic Range

    102dB

  • Power Requirements

    1.5 to 9V DC

  • Current Consumption

    <500uA

  • Relative Humidity 0-50%

    -29 deg. C to 74 deg. C (-20 deg. F to 165 deg. F)

  • Relative Humidity 0 to 95%

    -29 deg. C to 57 deg. C (-20 deg. F to 135 deg. F)

  • Mounting

    Male threaded TRS

  • Panel Microphone Connector Type

    TRS, 1/4" phone jack with threaded female metal bushing

  • Pin Out: Tip

    + Audio and Phantom Power (DC Bias)

  • Pin Out: Ring

    Common

  • Pin Out: Sleeve

    Chassis ground

  • Accessories Furnished

    Specially designed windscreen to prevent microphone popping and distortion in normal operation.

  • Dimensions: Knurled Stem to Head Length

    457.2mm / 18"

  • Maximum Head Diameter

    14mm / 0.55"

  • Gooseneck Diameter

    6.4mm / 0.25"

  • UPC Code

    800549986267

3 Accessories for Telex MCP-90-18 18" Panel Mount Gooseneck Microphone, 100Hz to 15,000Hz Frequency Response, 102dB Dynamic Range, <500uA Current Consumption

  • All Accessories (3)
  • Windscreens (3)
WindTech 1300 Series Windscreen, Inside Diameter .625" / 16mm - Black
WindTech 1300 Series Windscreen, Inside Diameter .625" / 16mm - Black
$7.87
WindTech 1300 Series Windscreen, Inside Diameter .625" / 16mm - Neon Yellow
WindTech 1300 Series Windscreen, Inside Diameter .625" / 16mm - Neon Yellow
$7.87
WindTech 1300 Series Windscreen, Inside Diameter .625" / 16mm - Neon Green
WindTech 1300 Series Windscreen, Inside Diameter .625" / 16mm - Neon Green
$7.87

About Telex MCP-90-18

The Telex MCP-90-18 is phantom powered, back-Electret, gooseneck microphone. The back-Electret feature provides greater sensitivity, wider frequency response and superior immunity from handling noise than a diaphragm-Electret microphone. The removable windscreen provides pop filtering, response-shaping and overload protection to further enhance the acoustic performance of the microphone.
It is mechanically designed for quick, easy mounting to RTS keypanels and selected Audiocom intercoms. The frequency response is tailored for full-range sound reproduction with natural sound pick-up optimized for closeup use. The microphones are fitted with a threaded TRS male connector is compatible with RTS standard threaded TRS female connectors. It is designed to be phantom powered with a wide voltage range of 1.5 to 9VDC.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Telex MCP-90-18 18 " Panel Mount Gooseneck Microphone
  • Telex 1 Year Warranty
