Telex MS-2002 2 Channel Main Station and Power Supply for Wired Intercom System, 1000Ohms Output Impedance, 200Hz to 8 kHz Speaker Frequency Response
SKU: TEMS2002
This item is no longer available.
Share:
Overview
Compare
Specs
Protection

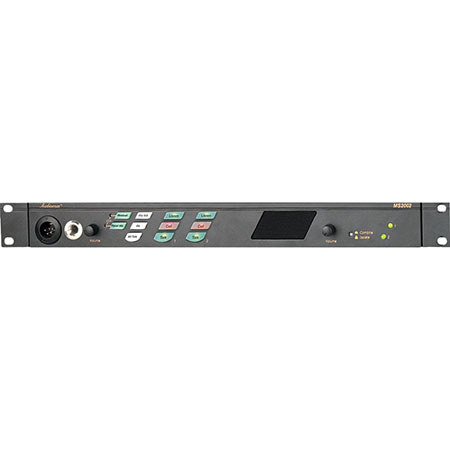

About Telex MS-2002
The MS-2002 is a complete 2-channel master station and system power supply (24 V DC, 2 Amps total power) in a single unit. You simply plug it into any AC power outlet from 100 to 240 volts, add a microphone or headset, connect intercom stations to the back panel and you're ready to communicate. It has combined 1-channel and 2-channel connectors, so you don't have to add a separate breakout box if you want to mix 1-channel and 2-channel intercom stations. It fits in a standard 19-inch equipment rack and is one (1) rack unit high. It can communicate with two (2) intercom channels.
Speaker Station or Headset Station uses the Built-In Speaker for listening and add an optional RTS MCP- 90 series Gooseneck Panel Microphone for talkback. You can also turn off the speaker volume and plug in headsets for private communication. Voice Activated Microphone (VOx) separate controls adjust the voice activation level for the headset microphone and panel microphone inputs. Public Address (PA) Output, with PA key uses your intercom microphone to talk over a PA system. Back-lit Keys improves visibility in low-light Incoming Call Indications with red flashing call light, with beep tone if desired. Instantaneous Auto-Reset technology in performance and safety, which uses a revolutionary new circuitry that dynamically monitors line fault conditions. Then, when the fault is removed, automatically brings individual power supply channels up.
Mic Kill Key can turn off all microphones on a channel to quickly clear the channel. Program Input for Each Channel connect any line-level audio source for monitoring in the speaker or headset, or for routing to the intercom channel. The program audio to the channel can be set to interrupt while the MS-2002 operator is talking on the channel. Binaural (Stereo) Listening with External powered speakers can connect external powered speakers and then monitor channel 1 and 2 as separate right and left audio. Expand channels by connecting optional EMS-4001 Expansion Stations. It is clear-com compatible.
