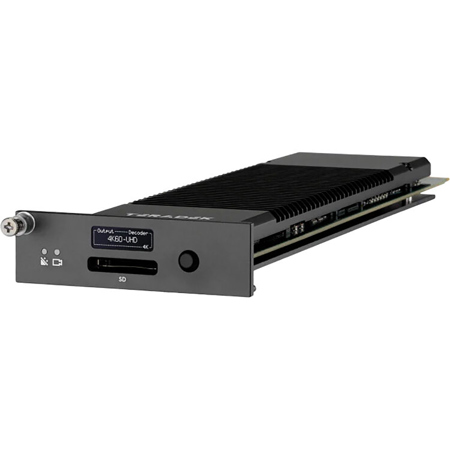

Teradek Prism 877 8-Channel 4K H.264/HEVC Encoder/Decoder Card for Prism Rack
See all Teradek items

Teradek Prism 877 8-Channel 4K H.264/HEVC Encoder/Decoder Card for Prism Rack

SKU: TE102877S MFR: 10-2877-S
Be the first to review this itemAsk a Question
$3,890.00
OR
$325/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience stunning 4K video quality with this advanced H.264/HEVC encoder/decoder card.
  • Seamlessly integrate into your Prism Rack chassis for professional broadcast workflows.
  • Enjoy reliable video transport with Teradek Bonding Protocol for critical live events.
  • Record directly to 256GB NVME storage or SD card, perfect for on-the-go productions.
  • Manage and control your streams effortlessly using the intuitive web UI and OLED display.
  • Benefit from versatile connectivity with 2x 12G-SDI inputs/outputs for diverse setups.
See More Product Details
Temporarily On Backorder?Expected Availability: 08/2026
Free Shipping

See Options

1
Add to ListGet Sale Alert

Save 5% Every Day† with the Adorama Edge Card. Learn More

edge card

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Teradek Prism 877 Specifications

Video

Video

Jump to...

  • Video Inputs/Outputs

    2x SD/HD/3G/6G/12G-SDI (75 Ohm BNC Loop, Decode, or Encode/Decode)

  • Supported Modes

    Single Encode, Single Decode, Bi-directional Encode/Decode (license required)

  • Supported Resolutions

    4K DCI p23.98/24/25/29.97/30/50/59.94/60
    4K UHD 23.98/24/25/29.97/30/50/59.94/60
    1080p 23.98/24/25/29.97/30/50/59.94/60
    1080i 50/59.94/60
    1080PsF 23/24/25/29/30
    720p 50/59.94/60
    576i
    480i

Video Processing

Jump to...

  • Video Compression

    ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
    H.264: Baseline profile, Main profile, High profile
    ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
    HEVC: Main profile

  • Supported Video Bitrate

    250 Kbps to 85 Mbps

  • Video Format Conversion Support

    Built in video scaler and deinterlacer

  • Number of Encoded streams

    Up to one 4KDCI p60 4:2:2 10bit (Single Encode Mode)

  • Number of Decoded streams (1x Decode)

    Up to one 4KDCI p60 4:2:2 10bit

  • Number of Encoded/Decoded streams

    1x 4KP60 4:2:0 8 bit encode, 1x 4KP60 4:2:0 8 bit Decode (Bi-Directional)

  • HDR Support

    Yes (2020-PQ, 2020-HLG, P3D65-PQ)

  • Color Correction

    CDL/1024 1D LUT (supports 10-bit color)
    33x33x33 3D LUT (supports 10-bit color)

  • Bonding

    Teradek Bonding Protocol and Teradek Reliable Transport - Debonding with license

  • Recording

    256GB NVME, SD Card - Full size, NFS

  • Camera to Cloud

    Core Cloud, Teradek TV, Frame.io, Sony Ci, Sony C3P, PIX, Moxion

  • Overlay Engine

    Up to 10 Overlays + Additional Dynamic OSD

Audio

Jump to...

  • Audio Compression

    AAC-LC, OPUS

  • Audio Bitrate

    32kbps to 512kbps

  • Audio Input

    8 channels embedded over SDI, or HDMI, 3.5mm TRS Stereo Line Level Analog Input

  • Audio Output

    3.5mm TRS Stereo Line Level output

  • IFB

    Analog Line In / Line only (Analog input disabled for use with video)

Licensable Features

Jump to...

  • Enable Extra Streams

    Extra simultaneous destinations

  • Enable Decoding

    Enabled ability to decode to SDI output

  • Debonding

    Debond Teradek Bonding Protocol and re-transmit via Teradek Bonding
    Protocol: TDS, SRT, RTMP, MPEG-TS, RTSP, HLS

Protocol Support

Jump to...

  • Network Protocols

    TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP

  • Supported Video Transport Protocols

    Teradek Reliable Transport (TRT), Teradek Bonding Protocol, Secure Reliable Transport (SRT), Reliable Internet Stream Transport (RIST), RTMP/RTMPS, MPEG-TS DASH (UDP, TCP, TCP Server, Multicast), RTSP/RTP, HLS Server, Integrated CDNs (YouTube, Facebook, Vimeo), Airmix, WHIP, WHEP

  • Remote Management

    Teradek Core Cloud, Private SDK

Interfaces

Jump to...

  • Configuration Interface

    Feature-rich Web UI for configuration and control, OLED Status Display w/ Nav control buttons

Power

Jump to...

  • Power Input

    Powered by Prism Rack Chassis

  • Nominal Power Consumption

    Up to 15W/card

Network

Jump to...

  • Ethernet

    2x 10/100/1000 BASE-T Gigabit Ethernet, connected to Prism Rack Chassis

General

Jump to...

  • Color

    Black

  • Material

    Milled aluminum

  • Mountability

    Mounted in Prism Rack Chassis

  • Country of Origin

    China

  • Dimensions (W x D x H)

    1 x 10.9 x 3.56" (26.1 x 276.5 x 90.5mm)

  • Weight

    12.4 oz (352g)

Other

Jump to...

  • UPC Code

    810156141782

About Teradek Prism 877

Prism 877 is an ultra flexible H.264/HEVC encoder/decoder solution for enterprise, broadcast, live production, and public safety applications. Prism can encode or decode up to 4KDCIp60 video with stunning 10-bit 4:2:2 image fidelity. Boasting 512GB of onboard NVME, Prism allows a new level of recording management with built in camera to cloud capabilities. Prism 877 cards can be both an encoder or decoder through a software switch and the encoder side supports the decode license expanding density.

Teradek Prism 877 Features

  • Up to 4K DCI 60p encoding and decoding with 10-bit 4:2:2 quality
  • Software-switchable encoder or decoder for flexible deployment
  • 512GB NVMe storage with built-in camera-to-cloud workflows
  • Decode license support increases channel density and scalability

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience stunning 4K video quality with this advanced H.264/HEVC encoder/decoder card.
  • Seamlessly integrate into your Prism Rack chassis for professional broadcast workflows.
  • Enjoy reliable video transport with Teradek Bonding Protocol for critical live events.
  • Record directly to 256GB NVME storage or SD card, perfect for on-the-go productions.
  • Manage and control your streams effortlessly using the intuitive web UI and OLED display.
  • Benefit from versatile connectivity with 2x 12G-SDI inputs/outputs for diverse setups.

What's in the box:

  • Teradek Prism 877 8-Channel 4K H.264/HEVC Encoder/Decoder Card
  • Teradek 1 Year Limited Warranty
