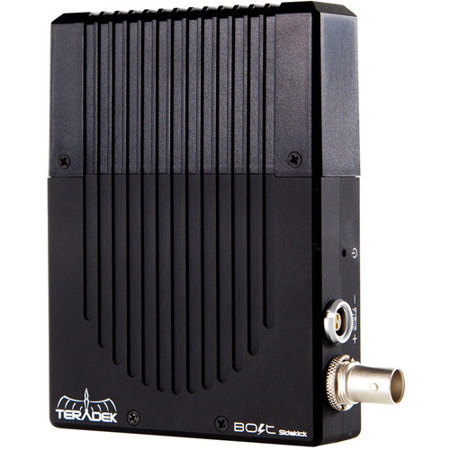

Teradek Bolt Sidekick II 3G-SDI Wireless Video Receiver
See all Teradek items

Teradek Bolt Sidekick II 3G-SDI Wireless Video Receiver

SKU: TESDK2WVR
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Teradek Sidekick II Specifications

  • Video Outputs

    3G/HD/SD-SDI:BNC

  • SDI Ancillary Data Support

    Supports transmitting metadata, timecode, and start/stop flags from certain camera manufacturers

  • Input/output

    3G-SDI

  • Color Sampling

    For SDI: YCbCr 4:2:2, 10-bit

  • Supported Resolutions

    Resolution Frame Rate Summary: 1080p60

  • Supported Input Resolutions

    1080p60/59.94/50/30/29.97/25/24/23.98
    1080psf30/29.97/25/24/23.98
    1080i60/59.94/50
    720p60/59.94/50
    480p59.94/576p50 (via HDMI ports only)
    480i(NTSC)/576i(PAL)

  • Video Compression

    Visually lossless

  • Test Pattern Generator Support

    Custom output formatted test pattern over HDMI and SDI

  • Audio Compression

    48KhZ 24-bit PCM

  • Construction

    Milled Aluminum(Chassis) and regulation-compliant PCB
    Plastic Cap

  • Configuration Interfaces

    On Screen Display on Video Output, Windows/Mac Desktop configuration utility

  • 2qA

    On/Off and Reset Switch

  • Desktop App

    Feature-rich Bolt Manager Application for OSX & Windows

  • USB Interface Functionality

    Upgrade via Mini-USB

  • Wireless

    5GHz (20&40Mhz), DFS Frequencies Available

  • RF Channel Selection

    Auto only (NOT configurable)

  • Encryption

    AES-128

  • RF Power

    15dBm EIRP

  • Range Summary

    300' / 91.44m

  • Range

    Up to 300' (91.44m) line of sight

  • Unicast Multicast

    1 Bolt TX can transmit to a maximum of 4 RX

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones

  • Number Of 20MHz Channels

    0

  • Number Of 40MHz Channels

    11

  • Power Input

    2-Pin Connector 7-17 VDC

  • Nominal Power Consumption

    6.9 Watts (Measured at 1080p60)

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Dimensions

    25.0 x 85.5 x 114.0mm / 0.98 x 3.37 x 4.49"

  • Weight

    288g / 10.16oz

  • UPC Code

    854980006909

About Teradek Sidekick II

Perfect for director's monitor rigs, the Sidekick II allows you to receive a Bolt video feed from any 500, 1000 or 3000 model.

Teradek Sidekick II Features

  • SDI Output with 2 Pin Power Connector
  • Supports 20 MHz channels when paired with Bolt 3000
  • 300' Range
  • Supports Timecode and Start/Stop Flags
  • Compatible with Bolt 500, 1000, 3000
  • Built-In Test Pattern Generator
  • Super Lightweight and Compact

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Teradek Bolt Sidekick II 3G-SDI Wireless Video Receiver
  • 18" SDI BNC Video Cable
  • Power Supply Unit (2-Pin Lemo 18W AC Power Adapter
  • 6' Cable)
  • 18" Mini-USB to USB Cable
  • Teradek 1 Year Warranty
