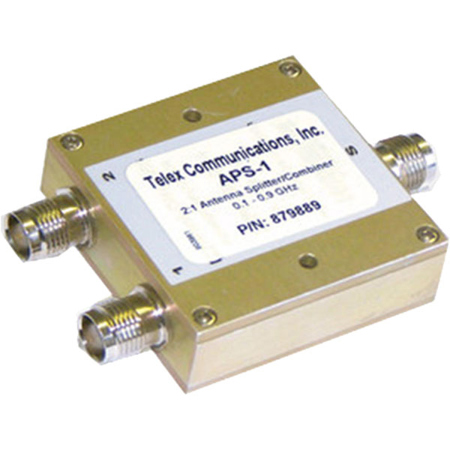

Telex APS-1 2:1 Broadband Antenna Combiner/Splitter
See all Telex items

Telex APS-1 2:1 Broadband Antenna Combiner/Splitter, 100-900MHz Frequency Range, Convenient TNC Connectors

SKU: TESPLIRAPS1
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Telex APS-1 Specifications

  • Power Input matched on all parts

    5W max.

  • Internal Dissipation

    1W max

  • Frequency Range

    100MHz to 900MHz

  • Isolation

    23dB typ.
    18dB min.

  • Insertion Loss Above 3.0dB

    .0.3dB typ.
    1.0dB max

  • Phase Unbalance (degrees)

    3 max.

  • Amplitude Unbalance

    0.3dB max.

  • VSWR

    1.5:1 max

  • RoHS Compliant

    Yes

  • Dimensions (D x W x H)

    3 x 2 x 0.75" / 76.20 x 50.80 x 19.05mm

  • Weight

    4oz / 113.40g

  • UPC Code

    192223051713

About Telex APS-1

The APS-1 is a 2:1 antenna splitter or combiner. This is a great solution to combine or distribute simple 2-up systems setups of BTR-800 or BTR-700. The APS-1 can be used with any UHF RTS RadioCom base.

Telex APS-1 Features

  • Small Size, approximately 2" x 2"
  • Convenient TNC connectors (No coaxial adapters required)
  • Signal Loss: -3.5dB, typical
  • Good UHF isolation, 26dB, typical
  • Up to 5W power input as splitter
  • Excellent amplitude unbalance, 0.1dB, typical
  • Excellent phase unbalance, 1 degree, typical
  • Rugged shielded case

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Convenient TNC connectors (No coaxial adapters required)
  • Excellent amplitude unbalance, 0.1dB, typical
  • Excellent phase unbalance, 1 degree, typical
  • Good UHF isolation, 26dB, typical
  • Rugged shielded case
  • Signal Loss: -3.5dB, typical

What's in the box:

  • Telex APS-1 2:1 Broadband Antenna Combiner/Splitter
  • Rackmount Bracket Kit
  • Power Cable
  • Telex 3 Year Warranty
