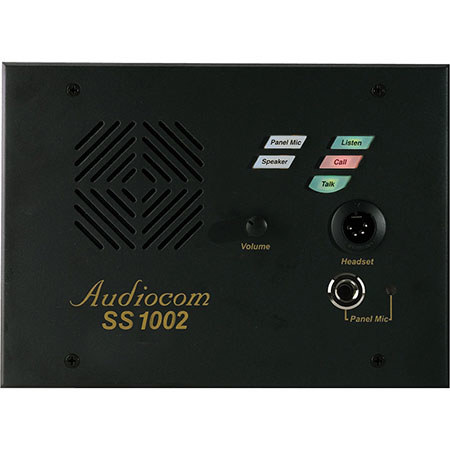

Telex SS-1002 Single Channel Intercom Speaker Station
See all Telex items

Telex SS-1002 Single Channel Intercom Speaker Station, Balanced Mode 300Ohms Input Impedance, Unbalanced Mode 200Ohms Input Impedance

SKU: TESS1002
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Telex SS-1002 Specifications

  • Power Requirements: Phantom Power

    24V DC nominal (18 to 30V DC)
    100mA without speaker; 700mA with speaker

  • Power Requirements: Local Power

    15V DC, 100mA without speaker
    700mA with speaker

  • Storage

    -20 deg. C to 80 deg. C; 0% to 95% humidity, noncondensing

  • Operating

    0 deg. C to 50 deg. C; 0% to 95% humidity, noncondensing

  • Dynamic-mic Headset: Microphone

    50 to 200Ohms, dynamic (balanced or unbalanced)

  • Dynamic-mic Headset: Headphones

    150 to 600Ohms, monaural

  • Dynamic-mic Headset: Connector Type

    XLR-4M

  • Dynamic-mic Headset: Pin

    Pin 1 - Microphone low
    Pin 2 - Microphone high
    Pin 3 - Headphone high
    Pin 4 - Headphone low

  • Panel Microphone

    5KOhms, electret

  • Panel Microphone Connector Type

    NTRK-8F

  • Panel Microphone Pin

    Pin 1: Common
    Pin 2: Microphone high
    Pin 3: +12V DC microphone bias

  • Intercom Channels: Output Level

    Balanced Mode: 1Vrms nominal
    Unbalanced Mode: 775mVrms +/-10% nominal

  • Intercom Channels: Input Impedance

    Balanced Mode: 300Ohms
    Unbalanced Mode: 200Ohms

  • Intercom Channels: Bridging Impedance

    Balanced Mode: >10kOhms
    Unbalanced Mode: >10kOhms

  • Intercom Channels: Balanced Mode

    Sidetone: 35dB adjustable range

  • Intercom Channels: Call Signaling

    Balanced Mode: Send: 20KHz +/-100Hz, 0.5Vrms +/-10%
    Unbalanced Mode: Send: 11 +/-3V DC
    Balanced Mode: Receive: 20KHz +/-800Hz, 100mVrms
    Unbalanced Mode: Send: 4V DC minimum

  • Intercom Channels

    Balanced Mode: Mic-Kill Detect Frequency: 24KHz +/-800Hz, 100mVrms

  • Noise Contribution

    less than -70dB

  • Common Mode Rejection Ratio

    >50dB

  • Intercom Channels: Connector Type

    Six-position terminal block

  • Intercom Channels: Balanced Mode Pin

    Pin 1 - Audio and DC Common
    Pin 2 - Local power (15V DC, 750mA maximum)
    Pin 3 - Intercom channel 1 audio low and +24V DC phantom power
    Pin 4 - Intercom channel 1 audio high and +24V DC phantom power
    Pin 5 - Intercom channel 2 audio low and +24V DC phantom power
    Pin 6 - Intercom channel 2 audio high and +24V DC phantom power

  • Intercom Channels: Unbalanced Mode: Pin

    Pin 1 - Common
    Pin 2 - Local power (15V DC, 750mA maximum)
    Pin 3 - Channel 1 +30V DC input
    Pin 4 - Channel 1 Intercom audio high and DC call
    Pin 5 - Channel 2 +30V DC input
    Pin 6 - Channel 2 Intercom audio high and DC call

  • UPC Code

    800549985901

About Telex SS-1002

The Telex SS-1002 Single Channel Intercom Speaker Station may be used with a headset, a Built-In Speaker and panel microphone, or an optional gooseneck microphone. As an alternative to a headset, a telephone-style handset may also be used. It is a single-channel station.

Telex SS-1002 Features

  • Easy Wiring: Via XLR "loop-through" or push-type wiring terminal block
  • Panel Mic Key: Selects built-in panel microphone or gooseneck microphone (when present) when in the On position. Selects headset/handset when in the Off position
  • Speaker Key: Selects the built-in speaker in the On position and the headset/handset when in the Off position
  • Call Key: Used to send call signals on the intercom channel and to indicate incoming calls
  • Intercom Talk Key: Only momentary (push-to-talk) is possible to reduce feedback
  • Panel Mic Connector: Accepts any MCP-90 series microphone

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Intercom Talk Key
  • Panel Mic Connector

What's in the box:

  • Telex SS-1002 Single Channel Intercom Speaker Station
  • Telex 1 Year Warranty
