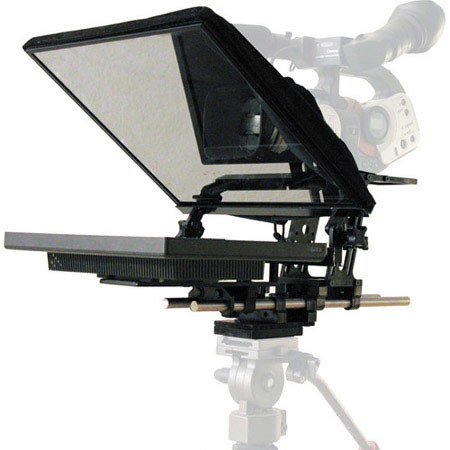

Telmax Triton T11B 10.4" Teleprompter System, VGA Input

The Telmax Triton T11B Teleprompter System, constructed out of industrial grade aluminum, is lightweight and extremely durable. The T11B Teleprompter system includes Triton T11H Teleprompter Head Assembly and Triton TS1560 Sled System. The sled is based on a dual rail system like many other products available in the film and video industry. The rails are 15mm in diameter and spaced 60mm apart. The components that attach to the rail are the Triton Head Assembly, Triton Monitor Mount and Triton Camera Mount.

The Triton Head Assembly includes the monitor, mirror enclosure, beam splitter mirror, hood and all necessary hardware and brackets. The Triton Head Assembly comes in all the standard teleprompter sizes and will fit on the front of any 60mm rail system that utilizes 15mm rods. The Tripod Mount, Monitor Mount and Rails are collectively called the Triton Sled System.

The Triton Tripod Mount is uniquely offset for better weight distribution since the bulk of the weight is at the front of the Teleprompter because of the monitor and mirror. Two rail blocks attached to the top of the tripod mount hold the two 18" long stainless steel 15mm Rods. Each rod is locked into position by two high torque tension knobs. By loosening the knobs you can slide the rods forward and backwards to the desired position. This feature comes in really handy when balancing your teleprompter on your tripod after it is all put together.

The 15mm Rods are solid stainless steel which provides for a super strong base for supporting the rest of the components including your camera and any other accessories you want to attach to the rails. The mount adjusts in height by loosening the super locking thumb screws and pulling up or pushing down on the mount. Once you have the Triton Camera Mount set at the desired height, you simply lock it in place by tightening the knobs.
