Telex RTS RadioCom TR-240 2.4GHz Wireless Intercom Beltpack, A4M Headset Jack
See all Telex items

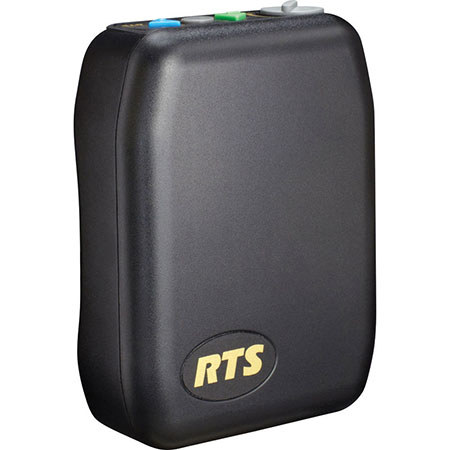

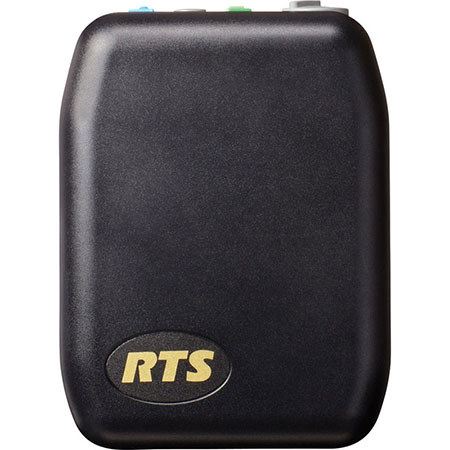

Telex RTS RadioCom TR-240 2.4 GHz Wireless Intercom Beltpack with A4M Headset Jack

SKU: TETR240A4MNA
(1)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2020-11-29T07:39:06

Rated 5 out of 5

Fast easy reliable.

Industry standard intercom for broadcast, clear & clean audio, easy to setup, fast to activate talk, this is the Male 4-pin XLR connector version, So be sure to pair units with a female 4-pin XLR. They make the same unit in female connections. Two units Can be linked Together with one in master wireless.

KENATH J.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Telex TR-24 Specifications

  • Headset Jack

    A4M

  • RF Technology

    IEEE 802.11b (Wi-Fi)

  • FCC License

    No License Required

  • Frequency Band of Operation

    2.412 to 2.462 GHz

  • Transmitter Output Power (conducted)

    50 mW

  • Antennas

    Internal Dipoles

  • Security and Encryption Technology

    802.11 Wi-Fi: 40-bit and 104-bit WEP
    Audio Encryption: 64-bit DES

  • Number of full-duplex beltpacks

    9 (TR-240 in master mode)

  • Number of half-duplex beltpacks

    Unlimited (TR-240 in master mode)

  • Audio Frequency Range

    350 Hz to 3800 Hz

  • Dynamic Range

    >=62 dB

  • Local Headset Output

    70 mW into 300 Ohms

  • Programming Port

    Ethernet (RJ-45)

  • Power Requirements

    Li-Ion Rechargeable (BP-240)

  • Battery Life

    Up to 8 hours

  • Battery Recharge Time

    via TR-240 beltpack: Approx. 8 hours
    via CHG-240 four-bay charger: Approx. 2.5 hours

  • Low Battery Indication

    Approx .15 minutes of battery life left

  • Temperature Range

    -4 deg. F to 130 deg. F (-20 deg. C to 55 deg. C)

  • Dimensions (L x W x H)

    1.75 x 3.75 x 5.25" / 44.45 x 95.25 x 133.35mm

  • Weight

    12.9oz / 365.71g

  • UPC Code

    192223058033

About Telex TR-24

FEATURED REVIEWS

Fast easy reliable.

By KENATH J.

Industry standard intercom for broadcast, clear & clean audio, easy to setup, fast to activate talk, this is the Male 4-pin XLR connector version, So be sure to pair units with a female 4-pin XLR. They make the same unit in female connections. Two units Can be linked Together with one in master wireless.

The TR-240 full-duplex beltpack offers a very comprehensive, user friendly and extremely versatile set of features to be custom configured to a user's specific requirements. The TR-240 can be uniquely configured in one of three operating modes which allow it to work in conjunction with a BTR-240 base station or with other beltpacks in the absence of a base.

In wireless mode, a BTR-240 base station provides the wireless coverage for the communication between TR-240 beltpacks. In wired mode, the beltpacks communicate with each other via Ethernet cable and do not require the use of a base station. In master wireless mode, the beltpack is now a mobile access point and provides the wireless coverage for communication between other TR-240s in wireless mode. Further details of these modes are discussed later in this section.

Telex TR-24 Features

  • License Free 2.4GHz, IEEE 802.11b WLAN technology
  • Expand coverage using BTR-24 access points
  • Multi-level security and audio encryption
  • 2-wire and 4-wire intercom interface
  • ClearScan channel selection
  • Auto-select Electret or Dynamic microphone
  • Choice of two (2) independent or simultaneous audio channels
  • TR-240 beltpacks operate wired or wireless
  • Eight (8) full-duplex beltpacks with virtually unlimited number of half-duplex beltpacks
  • TR-240 beltpacks can operate as an access point
  • Multiple antenna options and accessories
  • Durable ABS construction
  • Easy-to-read LCD indicates system status
  • Removable Li-Ion batteries with wide temperature range and up to eight (8) hours of operation

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • License Free 2.4GHz, IEEE 802.11b WLAN technology
  • Expand coverage using BTR-24 access points
  • Multi-level security and audio encryption
  • 2-wire and 4-wire intercom interface
  • ClearScan channel selection
  • Auto-select Electret or Dynamic microphone

What's in the box:

  • Telex RTS RadioCom TR-240 2.4 GHz Wireless Intercom Beltpack with A4M Headset Connector
  • Li-ion Batteries
  • Telex RTS 1 Year Limited Warranty
