Telex RTS RadioCom TR-300 VHF Wireless Beltpack Transceiver, TRV A4
See all Telex items

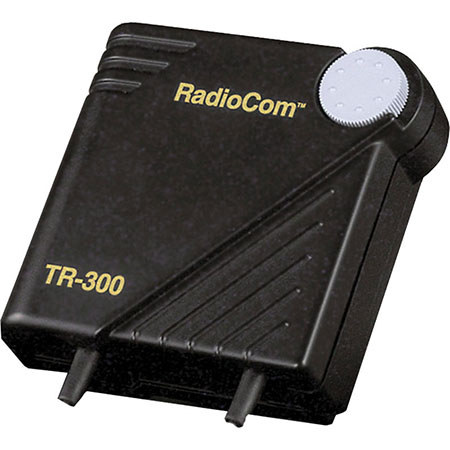

Telex RTS RadioCom TR-300 Single Channel VHF Wireless Beltpack Transceiver with A4M Headset Jack, TRV A4

SKU: TETR300TRVA4
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Telex TR-300 Specifications

  • Transmitter: RF Frequency Range

    150-216 MHz

  • Transmitter: RF Frequency Stability

    Crystal Controlled, 0.005%

  • Transmitter: RF Power Output

    50 mW Typical

  • Transmitter: Modulation

    FM, 3000 Hz deviation, 115 micro-seconds Pre-emphasis

  • Transmitter: Modulation Limiter

    Internal Compressor

  • Transmitter: Modulation Frequency Range

    300 to 5000 Hz +/_ 2 dB

  • Transmitter: Microphone Audio Input

    30 to 3500 Ohms

  • Transmitter:Microphone Input Sensitivity

    2 mV Dynamic, 4 mV Electret

  • Transmitter: Radiated Harmonics

    -45 dBC, Exceeds FCC Specifications (Spurious Emission)

  • Transmitter: FCC

    Type Accepted Under Parts 90 and 74

  • Receiver: RF Frequency Range

    150-216 MHz

  • Receiver: RF Frequency Stability

    Crystal Controlled, 0.005% Type Dual Conversion Superheterodyne, FM

  • Receiver: RF Sensitivity

    Less than 0.5 Mu V for 12 dB SINAD

  • Receiver: IF Selectivity

    3 dB at 30 kHz (Ceramic Filter)

  • Receiver: Image Rejection

    70 dB or better

  • Receiver: Squelch Quieting

    90 dB

  • Receiver: Squelch Threshold

    3.0 Mu V (Internal)

  • Receiver: Signal-to-Noise Ratio

    90 dB

  • Receiver: Audio Output

    32 mW into 600 Ohms (Headset)

  • Receiver: Distortion

    Less than 1% at Rated Output

  • Power Requirements

    6 AA cells (Alkaline, NEDA, MN 1500)
    Nickel-metal hydride optional

  • Current Drain

    Typical 82 mA

  • Temperature Range

    -4 deg. F to 130 deg. F (-20 deg. C to 55 deg. C)

  • Transmit Antenna

    1/4-wave wire (attached)

  • Receive Antenna

    1/4-wave wire (attached)

  • Dimensions (W x H x D)

    Overall: 4.25 x 4.12 x 2.00" / 10.80 x 10.46 x 5.08cm

  • Weight

    13oz / 368.54g (with Batteries)

About Telex TR-300

The Telex RTS RadioCom models BTR-300 and TR-300 are specifically designed to provide the user with a highly flexible wireless 2-way communication system with the capability to interface with a wired intercom system and other auxiliary audio.

Telex TR-300 Features

  • Unique audio shaping circuitry and a superior RF design
  • High Q Front end filtering
  • Beltpacks can operate at ranges of up to 1000 feet line of sight
  • Extended battery life
  • In-Pack charging - allows optional NiMH batteries to be recharged without removing them from the beltpack
  • Full-duplex operation - allows users to talk and listen simultaneously for more natural communications
  • Simultaneous operation and support of up to four (4) base stations and 16 beltpacks
  • Push-to-Talk with Lock-to-Talk feature switch on beltpack
  • Table or rack mountable

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Beltpacks can operate at ranges of up to 1000 feet line of sight
  • Extended battery life
  • High Q Front end filtering
  • Push-to-Talk with Lock-to-Talk feature switch on beltpack
  • Simultaneous operation and support of up to four (4) base stations and 16 beltpacks
  • Table or rack mountable

What's in the box:

  • Telex RTS RadioCom TR-300 Single Channel VHF Wireless Beltpack Transceiver
  • A4M Headset Jack
  • Telex RTS 3 Year Warranty
