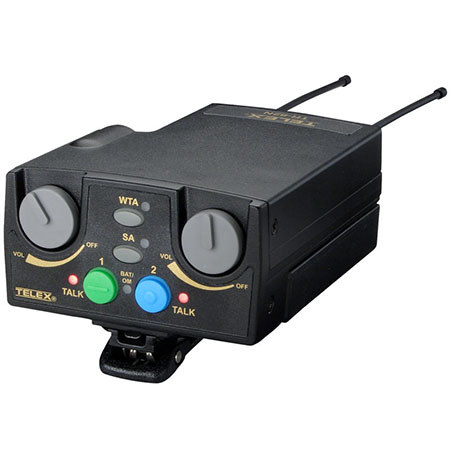

Telex RTS TR-82N UHF Two-Channel Beltpack Transceiver, A4F Headset Jack, F5 Band
See all Telex items

Telex RTS TR-82N Narrow Band UHF 2-Channel Binaural Wireless Synthesized Beltpack Transceiver, A4F Headset Jack, F5: 482-500MHz Receive/686-698MHz Transmit

SKU: TETR82NF5R

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Telex RTS TR-82N UHF Two-Channel Beltpack Transceiver, A4F Headset Jack, F5 Band Specifications

  • RF Frequency Range

    F5: 482-500MHz Receive/686-698MHz Transmit

  • Power Requirements

    6 "AA" Cells Alkaline (NiMH optional)

  • Current Draw

    280 mA (Push-to-Talk, A and B Talk On)

  • TX Antenna

    1/4 Wave (supplied), Screw type, Replaceable

  • RX Antenna

    1/4 Wave (supplied), Screw type, Replaceable

  • FCC ID

    B5DM531 (TX 608-698 MHz)

  • Frequency Response

    200Hz-4kHz

  • Microphone input sensitivity

    7 mV

  • Local Headset Output

    40 mW out put into 600W (1% tortion)

  • Transmitter: Type

    Synthesized, 720 channels

  • Transmitter: Transmit Power

    Selectable: Auto, 5, 50, 100 mW

  • Transmitter: Modulation Type

    FM

  • Transmitter: Deviation

    4 kHz

  • Transmitter: RF Frequency Stability

    2.5 PPM

  • Transmitter: Modulation Limiter

    Peak-Responding Compressor

  • Transmitter: Radiated Harmonics&Spurious

    Exceeds FCC specifications

  • Receiver: Type

    Two, Triple Conversion Super heterodyne Receivers, Synthesized, FM, 720 channels

  • Receiver: RF Sensitivity

    <0.6 MuV for 12 dB SINAD

  • Receiver: Squelch Threshold

    Adjustable - 12 /20 /24 dB SINAD

  • Receiver: IF Selectivity

    6 dB at 30 kHz Bandwidth

  • Receiver: Image Rejection

    70 dB or better

  • Receiver: Squelch Quieting

    90 dB

  • Receiver: RF Frequency Stability

    2.5 PPM

  • Temperature Range

    -4 deg. F to 130 deg. F (-20 deg. C to 55 deg. C)

  • Dimensions (W x H x D)

    3.75 x 5.35 x 2.02" / 95.25 x 135.89 x 51.31mm

  • Weight

    21oz / 595.34g (With alkaline batteries)

About Telex RTS TR-82N UHF Two-Channel Beltpack Transceiver, A4F Headset Jack, F5 Band

The Telex RTS TR-82N is a full duplex (simultaneous talk and listen) beltpack that works in conjunction with a BTR-80N base station. The beltpack allows a user, via a headset attached to the beltpack, to communicate with other wireless or wired users. Other base stations and / or wired systems connect to the beltpack's base station. The base station is what allows the audio path interconnections for the beltpack audio. The TALK, WTA (wireless talk around) and SA (stage announce) buttons on a beltpack turn the beltpack's microphone in put on or off. They also select the audio paths for the beltpack's audio in the base.

Telex RTS TR-82N UHF Two-Channel Beltpack Transceiver, A4F Headset Jack, F5 Band Features

  • Low Battery/Over modulation (BAT/OM) Light
  • On/Off & Volume Control
  • Receiver RF Meter
  • Stage Announce (SA)
  • Talk Button
  • Talk Light
  • Wireless Talk Around (WTA)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Receiver RF Meter
  • Stage Announce (SA)
  • Talk Button
  • Talk Light

What's in the box:

  • Telex RTS TR-82N Narrow Band UHF Two-Channel Binaural Wireless Synthesized Portable Beltpack Transceiver
  • Battery Pack
  • Quick Start Card
  • Belt Clip
  • LCD Cover
  • Telex RTS 3 Year Warranty
