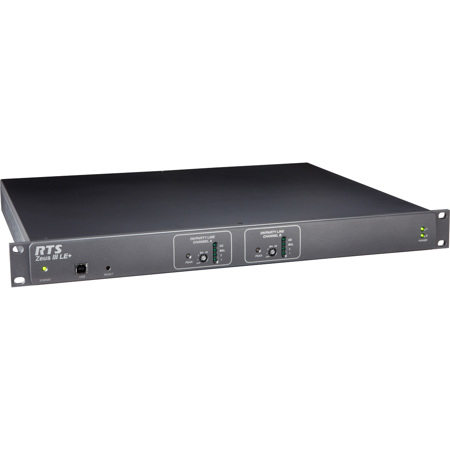

Telex Zeus III LE+ Compact Matrix Intercom, 16-Port

Two redundant power supplies
The unit comes with two independent power supplies powered from separate AC feeds.

USB port
The USB port is used for system configuration using AZedit Intercom software.

Trunk capable
Zeus III LE+ can communicate with an RTS trunked system using the dedicated DB-9 trunk connector with standard RS485 protocol.

Additional channels/ports
Zeus III LE+ is a 16-channel intercom matrix - each channel can be used to connect to a keypanel or 4W Audio (Audio In & Out).

Dual-channel party line interface
Zeus III LE+ includes an interface for additional two channels of party line. From the front panel it can be configured for use with RTS TW, Audiocom or Clear-Com party line systems. No additional interfaces are necessary.

Remote configuration
With the addition of Ethernet to the unit, users can remotely configure Zeus III LE+.

Dynamic keypanel addressing
Zeus III LE+ automatically addresses keypanels when they are connected to the frame. This eliminates the need for setting keypanel addresses and maintaining port allocations.

Relays

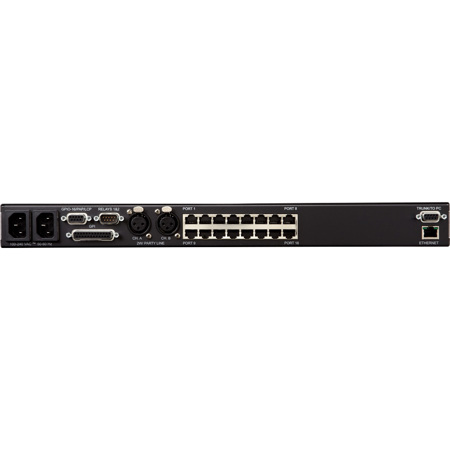

Two relay connections are included, available on the back panel of the unit.
