Telefunken ECC83-TK/12AX7 Black Diamond Series Amplifier Tube, Matched Quad
See all Telefunken items

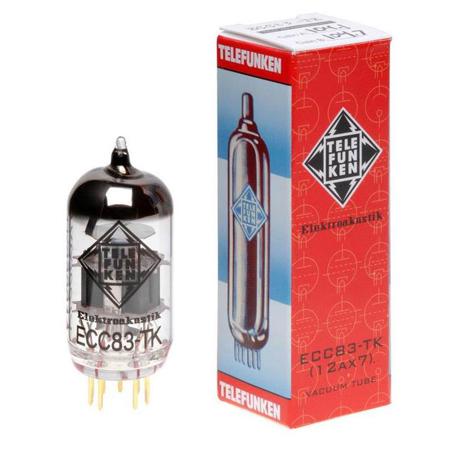

Telefunken ECC83-TK/12AX7 Black Diamond Series Amplifier Tube, Matched Quad

SKU: TFECC83TKQ
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Telefunken Amplifier Tube Specifications

Mechanical

Mechanical

Jump to...

  • Type

    R.F. dual triode

  • Base

    Noval

  • Number of Pins

    9

Heater Requirements

Jump to...

  • Voltage

    Parallel Configuration: 6.3 V
    Series Configuration: 12.6 V

  • Current

    Parallel Configuration: 300 mA
    Series Configuration: 150 mA

Direct Interelectrode Capacitances

Jump to...

  • Capacitance

    Grid to Cathode and Heater: 1.6 pF
    Plate to Cathode and Heater: 0.33 pF
    Grid to Plate: 1.7 pF

Maximum Ratings

Jump to...

  • Voltage

    Plate Voltage: 300 V
    Grid Voltage: -50 V
    Cathode to Heater Voltage: 180 V

  • Current

    Cathode Current: 8 mA

  • Dissipation

    Plate Dissipation: 1 W

  • Resistance

    Grid Resistor (self bias): 2.2 MOhms
    Cathode to Heater Resistance: 150 kOhms

Typical Operation and Characteristics

Jump to...

  • Voltage

    Plate Voltage: 250 V
    Grid Voltage: -2 V

  • Current

    Plate Current: 1.2 mA

  • Transconductance

    1.6 mA/V

  • Resistance

    Internal Plate Resistance: 62.5 kOhms (approximate)

  • Amplification

    Amplification Factor: 100 micro

Physical Characteristics

Jump to...

  • Dimensions (H x Diam.)

    1.9 x 0.9" (49.2 x 22.0mm) (excluding pins)
    2.2 x 0.9" (55.6 x 22.0mm) (including pins)

  • Weight

    0.2 oz (5.7g)

About Telefunken Amplifier Tube

The TELEFUNKEN ECC83-TK is a well-balanced tube suited for all types of music and playing styles. Designed to allow for cleaner headroom than higher gain 12AX7s when pushed into overdrive, it offers distortion with strongly defined lows, a rich mid range and clean, smooth highs.

Developed by RCA and released in September of 1947, the 12AX7 is a high gain / low noise tube that is the most popular tube used in input / inter-stage audio amplifiers. The dual triode design makes the 12AX7 compact, relatively inexpensive, and produces a high quality full frequency response.

12AX7's are known for their rich even order harmonic distortion when driven into overdrive. Even order harmonics fit into the western musical scale and are more pleasing to the ear than the harsh odd order harmonic distortion created by transistors. The 12AX7 is also known as the ECC83, which was the European designation found on tubes from Phillips / Mullard.
