Telefunken TDA-2 Dual Active FET Direct Box

SKU: TFTDA2 MFR: SYTM-085
Earn VIP Reward Points

Key Features

  • Experience pristine audio with this Telefunken active direct box, ensuring low noise.
  • Achieve optimal sound quality using the custom-wound OEP/Carnhill transformer DI box.
  • Versatile dual-channel DI for studio and stage, perfect for guitars, bass, and keyboards.
  • Enjoy a wide frequency range (20 Hz - 70 kHz) with this robust direct box for clear sound.
  • This rugged DI box offers selectable impedance options for matching various instruments.
  • Get superior gain range & signal clarity with this active DI, powered by +48V phantom power.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Telefunken TDA-2 Specifications

  • Channels

    2

  • Transformer

    Custom-Wound OEP/Carnhill Transformer

  • Frequency Range

    20 Hz - 70 kHz, +/-2 dB

  • Noise

    -116 dBV (unweighted)

  • Input Impedance

    > 30KOhms

  • Output Impedance

    < 250Ohms

  • Power Requirement

    +48 VDC Phantom Power

  • Current Draw

    3.8 mA

  • Maximum Input

    +3.5 dBV (no pad), +18 dBV (with pad)

  • Input Connection

    1/4" Jack

  • Output Connection

    XLR Output, 1/4" Thru

  • Dimensions (LxWxH)

    100 x 100 x 50mm (3.94 x 3.94 x 1.97")

  • Weight

    459g (16.19 oz)

  • UPC Code

    863212000332

About Telefunken TDA-2

Bring your audio performance to the next level with the Telefunken TDA-2 Dual Active FET Direct Box. This innovative device is a modern interpretation of classic circuitry, utilizing top-tier components to deliver a full, rich audio character that both complements and preserves the natural tone of your instrument.

The TDA-2 is more than just a direct box; it's a testament to superior audio engineering. Its discrete Class-A FET circuitry, coupled with a high-quality transformer, strikes the perfect balance between clean, high headroom performance and warm, saturated tone with vibe. Unlike other direct boxes that either sterilize the audio gain or overemphasize harmonic distortion, the Telefunken TDA-2 ensures your instrument retains its soul and character, delivering a sound that is both robust and defined.

At the core of this professional-grade direct box is a custom-wound output transformer by OEP/Carnhill, made in the UK. The circuit board is meticulously hand-assembled with through-hole components on gold-plated traces, providing more secure and reliable connections than typical surface mount circuitry. The frequency response of the circuit is impressively broad, ranging from 20 Hz to 70 kHz, with extremely low distortion and self-noise. Each unit is manually tuned by hand to achieve the lowest possible distortion figure, while the high input impedance prevents the loading down of passive pickups.

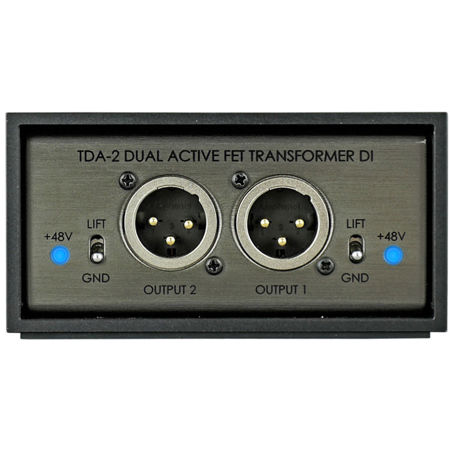

The TDA-2 is not only high-performing but also durable. Its circuit is housed in an extruded aluminum enclosure with recessed switches and connectors, capable of withstanding the rigors of regular use. Each channel features two heavy-duty metal toggle switches for a -15 dB pad and ground lift. The device is powered by standard +48V phantom power, with an LED indicator for power status.

With two independent DI channels with separate controls, the TDA-2 offers the convenience of running two instruments through one footprint, whether on stage or in the studio. Experience the harmonically rich low end and detailed, open high-end clarity that only the Telefunken TDA-2 Dual Active FET Direct Box can deliver.

Telefunken TDA-2 Features

  • Custom-wound OEP/Carnhill transformer, made in the UK
  • Rugged aluminum construction
  • Class-A discrete FET circuitry
  • Recessed switches and connectors for protection
  • +48V phantom powered with LED indicator
  • -15 dB pad switch
  • Ground lift switch
  • 100% through-hole components
  • Amphenol connectors
  • WIMA, Nichicon, and Panasonic capacitors
  • 1% 1/4W metal film resistors
  • 3-year warranty

Key Features

  • Experience pristine audio with this Telefunken active direct box, ensuring low noise.
  • Achieve optimal sound quality using the custom-wound OEP/Carnhill transformer DI box.
  • Versatile dual-channel DI for studio and stage, perfect for guitars, bass, and keyboards.
  • Enjoy a wide frequency range (20 Hz - 70 kHz) with this robust direct box for clear sound.
  • This rugged DI box offers selectable impedance options for matching various instruments.
  • Get superior gain range & signal clarity with this active DI, powered by +48V phantom power.

What's in the box:

  • Telefunken TDA-2 Dual Active FET Direct Box
  • Telefunken 3 Year Limited Warranty
