Thinkware Multiplexer Box for F200PRO/F790/X800/X700 Dash Cameras

SKU: THAMB100 MFR: TWA-MB100
$99.99
Earn VIP Reward Points

Key Features

  • Expand your Thinkware dash cam system with this versatile multiplexer box!
  • Connect up to 4 additional cameras for comprehensive vehicle video coverage.
  • Enjoy Full HD recording from all connected cameras, ensuring clear video evidence.

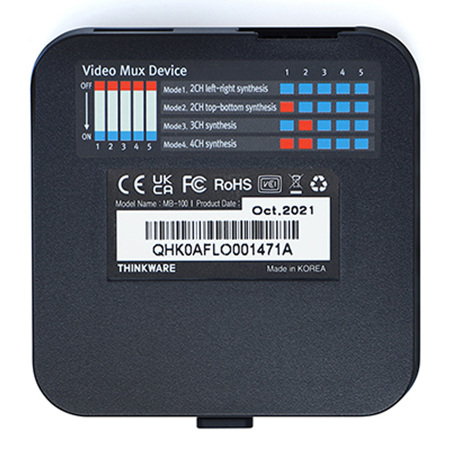

  • Simple piano code switch configuration to customize your composite screen display.
  • Wide voltage support (DC 12-24V) makes this multiplexer compatible with many vehicles.
  • Compact design integrates seamlessly; enhance your dash cam setup discreetly.
See More Product Details
Special Order?Estimated to Ship: 08/09/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.99

2 Year

$12.99

3 Year

$15.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Thinkware Multiplexer Box Specifications

  • Key

    Piano code switch
    Composite screen can be configured according to switch combination

  • Power Source

    2 (BAT, GND)
    DC 12 V - 24 V
    Cable length: 9.8' (3m)

  • AV-IN (for Optional Camera Connection)

    4 Cables (CAM 1, CAM 2, CAM 3, CAM 4)
    2.5 pi Stereo-jack type
    AFHD
    Cable length to connecting connector: 5.9" (15cm)

  • AV-OUT (for Front Camera Connection)

    1 Cable (AV-OUT)
    2.5 pi Stereo-jack type
    For front camera connection
    Cable length: 9.8' (3m)

  • Recording Channel

    Up to 4 Analog Full HD cameras can be input (total 5CH)

  • Composite Video

    Full HD (1920 x 1080) @ 30fps

  • Storage Temperature

    -4 Degree - 158 Degree F (-20 Degree - 70 Degree C)

  • Operating Temperature

    14 Degree - 140 Degree F (-10 Degree - 60 Degree C)

  • Dimensions (W x D x H)

    2.56 x 2.56 x 0.69" (65 x 65 x 17.5mm)

  • Weight

    1.41 oz (40g)

  • UPC Code

    888622016261

About Thinkware Multiplexer Box

Discover the power of comprehensive surveillance with the Multiplexer Box, a must-have accessory for your Thinkware Dash Cam. This device is designed to transform your F200 PRO, F790, X800, or X700 dash camera into a multi-channel surveillance system, offering up to five channels for enhanced coverage.

The Multiplexer Box is the perfect tool to customize your Thinkware setup according to your unique surveillance needs. Its modular design allows you to add a combination of side, interior, and rear views to your main forward-facing dash cam, ensuring that every angle is covered.

Experience superior video quality with all additional cameras recording in Full HD 1080p. This high-definition recording capability ensures that even the smallest details are captured with utmost clarity, providing a comprehensive and accurate account of any vehicle incident. This feature is particularly beneficial for fleet owners and rideshare drivers, offering protection against potential fraudulent claims by capturing all details from different angles.

The Multiplexer Box also offers a convenient video file storage solution. To maximize storage space and simplify file location, recordings from the additional cameras are merged and saved into one video file. Meanwhile, recordings from the main dash cam unit are saved separately, ensuring easy access and organization of your footage.

Please note that the Multiplexer Box is designed as an add-on accessory for compatible Thinkware Dash Cams and cannot be used to record driving footage on its own. Enhance your surveillance capabilities and capture every detail with the Multiplexer Box for Thinkware Dash Cameras.

Thinkware Multiplexer Box Features

  • Up to 5-channel recording
  • Clear video recording
  • Ideal for fleets and rideshare drivers
  • Convenient Video File Storage & Management
  • Users will get 2 files for each recorded 1-minute segment
  • Compatible with F790, F200 PRO, X800, and X700 Dash Cams

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Expand your Thinkware dash cam system with this versatile multiplexer box!
  • Connect up to 4 additional cameras for comprehensive vehicle video coverage.
  • Enjoy Full HD recording from all connected cameras, ensuring clear video evidence.
  • Simple piano code switch configuration to customize your composite screen display.
  • Wide voltage support (DC 12-24V) makes this multiplexer compatible with many vehicles.
  • Compact design integrates seamlessly; enhance your dash cam setup discreetly.

What's in the box:

  • Thinkware Multiplexer Box
  • Power Cable
  • V-Out Cable
  • Installation Guide
  • Thinkware 1 Year Limited Warranty
