PTZ 20x Zoom Live Streaming HD 1080p/59.94 Camera with SDI HDMI USB Outputs MaximusProX
1 video

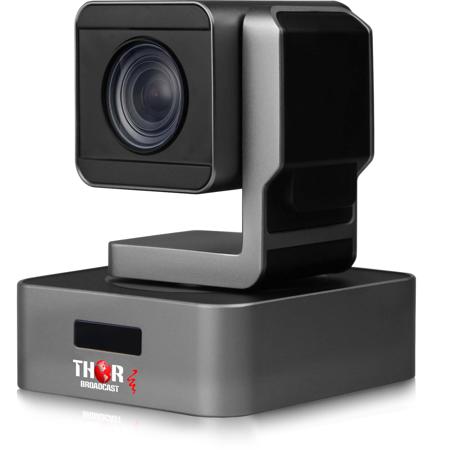

Thor MaximusProFly 1080p HDMI SDI USB Live Streaming 20x PTZ Camera
See all Thor items

Thor MaximusProFly 1080p HDMI SDI USB Live Streaming 20x PTZ Camera

SKU: THMAXIPROFLY
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Thor MaximusProFly Specifications

Camera

Camera

Jump to...

  • Megapixel

    1/2.8 Exmor CMOS, 2.38 MP

  • Frame Rate

    1080P60/59.94/50/30/29.97/25;1080I60/59.94/50/30/29.97/25;720P60/50/30/25, 480I60, 576I50

  • Zoom

    20X Optical, 12X Digital Zoom

  • Lens

    f=4.7mm-94.0mm, F=1.6(W)-3.5(T)

  • Horizontal Field of View

    2.9 Degree (T)-65 Degree (W)

  • Min Lux

    0.5lux /0.095 lux

  • Shutter Speed

    1 to 1/10000s

  • Supported

    Vertical Flip & Mirror

Input/Output Interface

Jump to...

  • Video Output

    HDMI, 3G-SDI, RJ45 Network (10/100M Adaptive Ethernet ports)

  • Audio Input

    1-ch 3.5mm audio interface, Line In

  • Communication interface

    1X RS232 IN, 1X RS232 Out, 1X RJ45, RS485

  • Power On

    JEITA type (DC IN 12V)

  • Video Storage

    USB2.0

Mechanical

Jump to...

  • Rotation Angle

    Pan: 178 Degree , Tilt Rotation Angle -30 Degree - +90 Degree
    Pan 0.1-180 Degree /s; Tilt: 0.1-120 Degree /s

  • Presets

    Max 255 Presets ( Remote 9 Presets)

  • Protocol

    VISCA, PELCO P/D, ONVIF

IPC Video

Jump to...

  • Video standard

    H.265/H.264/MJPEG, H.264 HP, H.264 SVC, H.263 +, H.263, H.261 Dual video streams H.239BFCP content exchange

  • Video Stream

    Main stream, Sub stream

  • Main stream resolution

    1920x1080, 1280x720

  • Sub stream resolution

    720x480, 320x240

  • Bit Rate

    128K,256K,384K,512K,768K,1024K,1536K,2048K,3072K,4096K,5120K,6144K,8192K

  • Bit Rate Type

    Variable rate, Fixed rate

  • Maximum Frame

    60fps

  • Audio encode standard

    G.711, G.722, G.722.1, G.728, G.722.1C AAC

  • Audio stream rate

    96K, 128K, 256K

  • Support protocols

    TCP/IP, HTTP, DDNS, RTSP, RTMP, PPPoE, SMTP, UPnP, SNMP, FTP(Optional)

Physical

Jump to...

  • Operating Temperature

    -10 Degree C - 50 Degree C

  • Max Consumption

    12W DC12V @1A

  • Dimensions (L x W x H)

    4.72 x 4.72 x 5.70" (120 x 120 x 145mm)

About Thor MaximusProFly

Broadcast-quality video PTZ camera with advanced video image processing technology and full HD CMOS Sensor with multiple video output formats.

Max resolution up to 1080P with 20X optical zoom for capturing HD images at long distances. Approx 2.38 Megapixel picture presentation, true-color image quality. Supports USB one-click local storage functionality and one-click and 3G-SDI\HDMI\IP Streaming video simultaneous output. RTSP, RTMP, UDP H.264 encoding with low bandwidth transmission demand; the built-in audio interface, suitable for high-frequency sound & AV live Streaming and Recording. Is ideal for LIVE Streaming & Broadcasting, Church Live Streaming equipment Conferencing, Education, Telemedicine, AV Media Projects. Direct streaming to services like Youtube, Facebook, Twitch or Wowza

Features

Multiple Protocols
Built-in VISCA, PELCO P/D, ONVIF

Simultaneous multi-interface video output
3G-SDI / HDMI / IP Streaming (RTSP, RTMP)
RS485 / RS232 / LAN (VISCA Over IP) & Remote Control for communication & control

Ultra-quiet hardware structure design with high accuracy up to 0.01 Degree
Ultra-quiet pan/tilt design, horizontal 178 degrees, vertical -30 Degree -+90 Degree rotation. All-aluminum compact structure design, high precision stepper motor drive, accuracy 0.01 Degree

Support Audio Input
Built-in 3.5mm Jack audio input interface & G.711, G.722, G.722.1, G.728, G.722.1C AAC Audio Encoding

IP Streaming
TCP/IP, HTTP, DDNS, UDP, RTSP, RTMP, SMTP, UPnP, SNMP, FTP(Optional)

Local Audio & Video Storage
USB2.0 port for local storage & recording with one click recording

Smart Menu & GUI Interface
Easy to enter menu & settings, with Desk GUI Interface for video previews & settings

20X Optical Zoom with wide horizontal of view 65 Degree
Advanced video image processing technology & full HD 1/2.8" CMOS Sensor, 20X Optical Zoom, Max resolution up to 1080P@60fps

2D/3D Noise Reduce function
The Camera menu has 2D/3D noise reduction

Broadcasting Grade video Output format
The Camera video output format is available for 1080P60/59.94/50/30/29.97/25, 1080I60/59.94/50fps/30/25; 720P/60/50

Diversified installation design
Supports Mirror & Flip, and has easy Ceiling / Wall Mount / Tripod / Desk Installation options

Thor MaximusProFly Features

  • Multiple Protocols
  • Simultaneous multi-interface video output
  • Ultra-quiet hardware structure design with high accuracy up to 0.01 Degree
  • Support Audio Input
  • IP Streaming
  • Local Audio & Video Storage
  • Smart Menu & GUI Interface
  • 20X Optical Zoom with wide horizontal of view 65 Degree
  • 2D/3D Noise Reduce function
  • Broadcasting Grade video Output format
  • Diversified installation design
  • High Efficiency Lost Packet Recover
  • Wake-on-LAN (WOL) support

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Multiple Protocols
  • Simultaneous multi-interface video output
  • Ultra-quiet hardware structure design with high accuracy up to 0.01 Degree
  • Support Audio Input
  • IP Streaming
  • Local Audio & Video Storage

What's in the box:

  • Thor MaximusProFly 1080p HDMI/SDI/USB Live Streaming PTZ Camera
  • IR Remote Controller
  • Ceiling Bracket / Wall Support
  • 12V/ 2.0 A DC Power Adapter
  • RS-232 to DB 9-Pin Cable
  • User Manual
  • Thor 2 Year Limited Warranty
