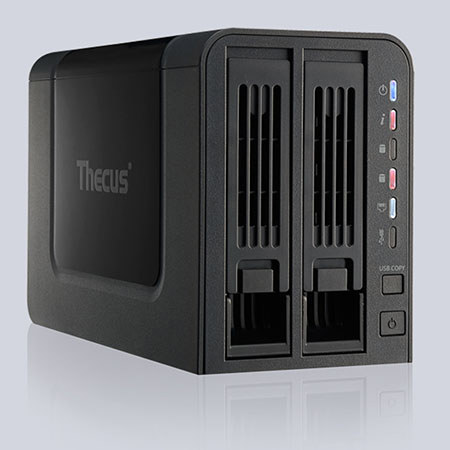

Thecus N2310 2-Bay Tower NAS Server for Soho and Home, RAID 0/1/JBOD, AMCC APM 86491 800Mhz, 512MB DDR3, USB3.0, 2x SATA Interface

SKU: THN2310

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Thecus N2310 Specifications

  • Processor

    AMCC APM 86491 800Mhz

  • System Memory

    512MB DDR3

  • LAN Interface (PCI-e)

    RJ-45x1: 10/100/1000 BASE-TX Auto MDI/MDI-X

  • USB Interface

    USB 2.0 host port x1 (back x1)
    USB 3.0 host port x1 (back x1)

  • Disk Interface

    2 x SATA for internal

  • Power Supply

    40W external power adaptor

  • Buttons

    Power button
    USB copy button
    Reset button

  • Environment

    Temperature: 5 deg.C to 40 deg.C

  • Chassis

    2bays Tower

  • Certificates

    CE/FCC/C-Tick/VCCI/BSMI
    RoHS
    WEEE

  • RAID: Modes

    RAID 0, 1 and JBOD

  • RAID: Auto-rebuild

    Supported

  • RAID: Hot-swap

    Supported

  • Disk: Bad Block Scanning

    Supported

  • Disk: SMART Info

    Supported

  • Disk: SMART Test

    Supported

  • Disk: Roaming

    Supports volume-based roaming to other N2310

  • Network: Configuration

    Fixed IP address, dynamic IP address

  • Network: Transport Protocols

    TCP/IP, AppleTalk

  • Network: File Protocols

    SMB/CIFS, HTTP/HTTPS, FTP, AFP, NFS

  • Network: TCP/IP

    IPV6 & IPV4

  • Syslog Management

    Send syslog to assigned location
    Act as syslog server to receive log info from other systems

  • Data Access: Client OS Support

    Windows XP and after
    Windows Server 2003 and after
    Mac OS X
    Linux

  • Data Access: FTP

    Built-in FTP server with bandwidth control

  • Data Access: Secure FTP

    Built-in secure FTP server with bandwidth control

  • Data Access: Download Manager

    BT Transmission

  • Data Access: Printer Server (IPP)

    Supports USB printers
    Supports a wide range of IPP printers
    Client can manage print tasks (list/delete) via web user interface

  • Data Backup: Client Incremental

    Thecus Backup Utility

  • Data Backup: Data Burn

    Create files to ISO image and burn to optical disc
    Create files to ISO image
    Read ISO image from optical disc and write to NAS

  • Data Backup: Mac OS X Time Machine

    Supported

  • Data Backup: Data Guard

    Remote Backup/Local Backup

  • Scheduled Power On/Off

    Supported

  • Volume Management: File System

    EXT4

  • Multimedia Support: iTunes Server

    Supports AAC, MP3 with ID3 tag and WAV

  • Multimedia Support: Piczza Photo Server

    Supports GIF, JPG (JPEG), BMP and PNG
    Supports EXIF display
    Supports slide shows

  • Multimedia Support: Media Server

    Supports uPnP AV streaming protocol

  • User Authentication: Local User

    Supports built-in user accounts

  • User Authentication: Local Group

    Supports built-in user groups

  • File System: Type

    Journaling File System

  • File System: Language Support

    Unicode Support

  • File System: Authorization (ACL)

    "Read", "write", or "deny" privileges to individual users or groups in folders and sub-folders

  • File System: User Quota

    Supported

  • User Interface

    Web-based user interface supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish and Portuguese.

  • Utility Program

    Intelligent NAS
    MS Windows Setup Wizard
    Supports Windows XP and after
    Windows Server 2003 and after
    Mac OS X Setup Wizard

  • Email Notifications

    Sends system messages via email to the system administrator

  • DDNS

    Support one free DDNS registration

  • UPnP and Port forwarding

    Support auto setting in Intranet environment

  • Mobile Applications: T-Dashboard

    Mobile monitoring and administration

  • Mobile Applications: T-OnTheGo

    Upload, download and stream multimedia

  • Recycle Bin

    Supported

  • Web Disk

    Supported

  • Dimensions (H x W x D)

    5.31 x 3.82 x 8.15" / 135 x 97 x 207mm

  • Weight

    1.76lbs / 0.8kg

  • UPC Code

    884956004004

About Thecus N2310

The Thecus N2310 2-Bay Tower NAS Server is equipped with an Advanced Micro Circuits Corporation (AMCC) 800MHz SoC processor and 512MB of DDR3 RAM, this latest 2-bay device is a great choice for those seeking solid storage solutions on a budget.

5 Minute Complete Installation
The N2310 is designed with ease in mind; it is easy enough for anyone to set up. Overlook the several steps which usually are associated with setting up NAS appliances. Simply plug the power supply, insert the Ethernet cable, boot up the N2310 and set up will be completed within 5 minutes. This breakthrough feature truly makes this a plug-and-play NAS.

Self-RAID Creation
All Thecus NAS include an innovative Self-RAID Creation tool that analyzes installed drives and, once the user has selected their preferred balance of performance and protection, automatically builds their customized RAID volume

T-OnTheGo Mobile App
We're a mobile society and NAS solutions are keeping up! Incorporated into the N2310 is support for Thecus's T-OnTheGo smartphone app. Now supporting both iOS and Android, this NAS management software enables users to access, copy, stream and edit any data between their NAS and mobile device. Your own personal cloud, from anywhere with internet access.

DDNS
Have easy access to your NAS via Dynamic DNS (DDNS), this allows users to allocate and access their NAS files via the internet remotely. Since IP digits are often difficult to remember, domain names are utilized to make NAS management much more convenient. When the IP address is changed, the DDNS server will automatically adjust the IP address to make sure that remote access is always available. In short, DDNS provides convenient remote internet access to your Thecus N2310 by utilizing domain names instead of IP digits.

PLEx Media Center
The Plex Media Server is both the heart and brains for any digital media system. The free server is a module available on the Thecus App Center that allows you to set up and manage your media. With the Plex Media Server installed on your Thecus NAS, various devices on your network (such as your Xbox 360 and mobile devices) can connect to and stream your local and online media

Native Bit Torrent Support
Included in ThecusOS 6 is Transmission, a powerful BitTorrent client. Easily add torrent seed files to Transmission and sit back and relax as your NAS does the rest, independent of your computer. Once downloaded, your files will be automatically stored in your NAS P2P folder where you'll be able to access them across your network or through the internet. Set and forget torrenting that's accessible anywhere, that's the N2310's native BitTorrent support.

Data Guard
Data Guard backup solution is the ultimate software as it provides both local and remote parts. Currently, data is backed up across RAID volumes, external USB drives and eSATA. In addition, Data Guard uses innovative technology to sync data across the network to other NAS and servers. More importantly, Thecus Data Guard is the total backup solution which makes managing NAS user-friendly and convenient.

Data Burn
NAS data can now be burned directly to CD, DVD and Blu-ray discs with Data Burn, this hassle-free module makes burning data to a disk effortless. In addition, burning ISO image file is also supported. Whether you're managing audio, media or essential files; Data Burn copies information fast while significantly reducing waiting time. The process of burning file to disk is now easy and smooth with Data Burn module.

USB 3.0 Connectivity
The next generation of connectivity is here with speeds 10x faster than USB 2.0. Whether connecting digital cameras and smart phones, backing up large external hard drives, or extending the capacity of your NAS, USB 3.0 will make sure it's done in no time at up to 5 Gbit/s. Backwards compatibility adds the connectivity of a world full of USB 2.0 and USB 1.1 devices to get the best combination of speed and universal access.

User Quota
Divide the massive storage of a Thecus NAS among multiple users. Whether there are two users or 100, User Quota make it easy to divvy up and manage disk space.

What's in the box:

  • Thecus N2310 2-Bay Tower NAS Server for Soho & Home
  • Accessory Bag
  • Ethernet Cable
  • Power Cord
  • Power Adaptor
  • Quick Installation Guide
  • All In One DVD
  • Thecus 2 year warranty
