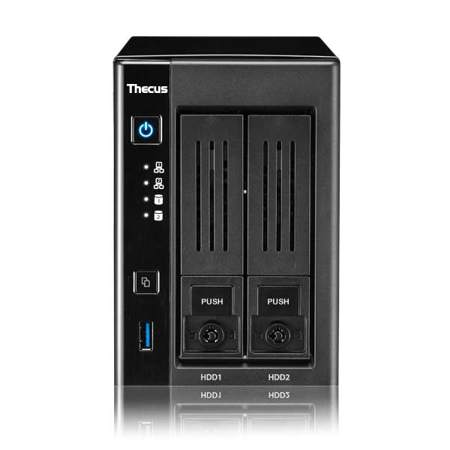

Thecus N2810PRO 2-Bay Tower NAS Storage Enclosure, RAID 0, 1 and JBOD, Intel Celeron N3160 1.6GHz, 4GB DDR3 RAM, OS 7.0, No HDD

SKU: THN2810PRO

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Thecus N2810PRO Specifications

  • Processor

    Intel Celeron N3160 1.6GHz burst up to 2.24gHz Quad Core

  • System Memory

    4GB DDR3

  • Memory expandable up to

    8GB Memory Compatibility List

  • LAN Interface

    RJ-45x2: 10/100/1000 BASE-TX Auto MDI/MDI-X
    WOL supported

  • USB Interface

    USB 3.0 host port x3 (front x1, back x2)

  • LED Indicator

    Power LED: White
    WAN/LAN1 LED: White
    LAN LED: White
    USB LED: Activity/Failure: White/Red

  • Monitor/TV Output

    HDMI 1.4b (back x1)
    DisplayPort 1.1a (back x1)

  • SPDIF

    SPDIF port (back x1)

  • Disk Interface

    2 x SATA for internal, support SATA II / SATA III hard disk

  • Power Adapter

    48W external power adapter

  • Thermal/Fan control

    Thermal sensor on processor temperature
    System FAN speed controlled by temperature

  • System Clock

    Battery-backed up system clock

  • Power Management

    Auto power on after shutdown due to power loss
    Available spin-down on idle setting

  • Buttons

    Power button/Copy button

  • Buzzer

    Adjustable frequency alarm

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Humidity

    0 - 80 % R.H. (Non-condensing)

  • Non-Operation Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Chassis

    2bays Tower Chassis

  • Certificates

    CE/FCC/C-Tick/VCCI/BSMI
    RoHS
    WEEE

  • RAID Modes

    RAID 0, 1 and JBOD

  • Auto-rebuild

    Supported

  • Hot-swap

    Supported

  • Hot Spare

    Supported

  • RAID Expansion

    Supported

  • RAID Volume Encryption

    AES256bit

  • Bad Block Scanning

    Supported

  • SMART Info

    Supported

  • SMART Test

    Supported

  • Disk Roaming

    Supports volume-based roaming to other Thecus NAS (Require ThecusOS 7 64 bit)

  • Disk Security

    Supported

  • Configuration

    Fixed IP address, dynamic IP address

  • Transport Protocols

    TCP/IP/AppleTalk

  • File Protocols

    SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP

  • Link Aggregation

    Load balance, Failover, 802.3ad, Balance-XOR, Balance-TLB, Balance-ALB, Broadcast

  • TCP/IP

    IPV6 & IPV4

  • SSH

    Supported

  • UPnP

    Supported

  • UPnP Port forwarding

    Supported

  • Bonjour

    Supported

  • VPN Server

    Supported

  • vLan

    Supported

  • System Monitor

    Monitoring CPU, memory, Temperature, fan, network utilization and protocols access user count

  • Syslog Management

    Send syslog to assigned location
    Act as syslog server to receive log info from other systems

  • Client OS Support

    Windows XP and after
    Windows Server 2003 and after
    UNIX/Linux
    Mac OS X

  • FTP

    Built-in FTP server with bandwidth control

  • Secure FTP

    Built-in secure FTP server with bandwidth control

  • TFTP

    Users can download and upload files with TFTP programs

  • Download Manager

    BT download (via Transmission module)
    NZB download (via NZB module)

  • WebDAV/WebDAV SSL

    Supported

  • Printer Server (IPP)

    Supports USB printers
    Supports a wide range of IPP printers
    Client can manage print tasks (list/delete) via web user interface

  • Client Incremental Data Backup

    Acronis True Image (OEM version)

  • Client System Disaster Recovery

    Acronis True Image (OEM version)

  • Mac OS X Time Machine

    Supported

  • Local folder/iSCSI Backup

    Supported

  • Remote folder/iSCSI Backup

    Supported

  • Snapshot

    Supported (Btrfs)

  • System Failover

    Supported

  • iSCSI Target/Initiator

    Supports Microsoft/Mac OS X/Linux initiators and Thecus NAS targets

  • iSCSI Thin Provisioning

    Supported

  • MPIO

    Supported

  • MCS

    Supported

  • Clustering

    Supported

  • SCSI3 Persistent Group Reservation

    Supported

  • Scheduled Power On/Off

    Supported

  • Multiple RAID

    Supported

  • Multiple File System Selectable

    EXT4/XFS/Btrfs

  • iTunes Server

    Supports AAC, MP3 w/ID3 tag and WAV

  • Media Server

    Supports uPnP AV streaming protocol (via Module)

  • Local User

    Supports built-in user accounts

  • Local Group

    Supports built-in user groups

  • Windows ADS

    Supported

  • LDAP

    Supported

  • Photo Center

    Supported

  • File Center

    Supported

  • APP Center

    Supported

  • Surveillance Center

    Supported

  • DropBox

    Supported (via module)

  • Elephant Drive

    Supported (via module)

  • Amazon S3

    Supported

  • File System Type

    Journaling File System

  • Language Support

    Unicode Support

  • Authorization (ACL)

    "Read", "write", or "deny" privileges to individual users or groups in folders and sub-folders

  • User Quota

    Supported (exclude Btrfs)

  • Folder Quota

    Supported (Btrfs only)

  • User Interface

    Web-based user interface supports English, Traditional Chinese, Simplified Chinese, Japanese, French, German, Italian, Spanish, Russian

  • Utility Program

    MS Windows Setup Wizard
    Supports Windows XP and after
    Mac OS X Setup Wizard

  • Email Notifications

    Sends system messages via email to the system administrator

  • SNMP Trap

    System information trap out

  • P2P Connection

    Mail or FB account to register

  • DDNS

    Supported

  • Thecus Connect (Android)

    Provides live up-to-date information of your NAS

  • Thecus Wizard

    Offers fast NAS Setup via your phone

  • T-OnTheGo

    Upload, download and stream multimedia

  • Orbweb.me

    Uploading, downloading, streaming multimedia and webcam via P2P connection

  • Virus Scan

    Supports Intel Security (via module)

  • Stackable

    Can extend for 5 additional iSCSI volumes from other Thecus NAS

  • Scale-Out

    Dynamic Volume Expansion

  • Recycle Bin

    Supported

  • ISO Mount

    Supported

  • Local Display

    X-Window via HDMI output

  • Disk Wipe

    Supported

  • Disk Clone

    Supported

  • Dimensions (HxWxD)

    146 x 102 x 213mm (5.75 x 4.02 x 8.39")

  • UPC Code

    884956004622

About Thecus N2810PRO

The high-performance 2-bay NAS server fulfills the demand for home and small office users who are eager for impregnable protection of their data, while enjoying enhanced Multimedia Playback with 4K video resolution. Providing the ideal environment for immersive multimedia entertainment, the N2810PRO debuts a new arsenal of output alternatives to fulfill user's visual and audio desires. This NAS delivers superbly detailed images, with spectacular color contrasts in 4K resolution playback, accessed through the HDMI output or the newly added DisplayPort output. To further cater to your multimedia setup, the option exists of connecting the audio via a SPDIF output to provide expansive sound through your sound system.

• Embedded with Intel Celeron N3160 Quad Core CPU
• Running on the newly-designed, enhanced ThecusOS 7.0
• Seamless 4K Multimedia Playback
• Additionally to HDMI now with DisplayPort and SPDIF
• Uninterrupted Accessibility with Thecus System Failover
• Secure Remote Access with Virtual Private Network (VPN)
• Faster Transfers: 2 LAN Ports for Link Aggregation
• 99% Virus Prevention: Bundled with Free Intel Security
• Complete Client Side Protection: Bundled with Free Acronis Software

The N2810PRO runs on the latest ThecusOS 7.0, providing an optimized, feature-rich platform with a redesigned intuitive user interface and easy navigation. Key new features include Photo Station, File Center and Thecus App Center, an extensive variety of apps for modern digital lifestyles are ready to be accessed upon hardware installation. ThecusOS 7.0 delivers significant advancements in productivity, flexibility and performance.

The N2810PRO as compared to the N2810, which ran on Intel Celeron N3050 and had 2 GB of RAM, has twice as much memory and twice the number of processor cores at the same power consumption of the CPU. These advancements empower this new NAS with significantly higher efficiency and performance. The N2810PRO provides the essential services demanded of a NAS, with uncompromising data integrity, satisfies the demand for high-speed data transmission at home or in the office place and offers ideal optimization for multimedia use.

Running on the newly-designed, enhanced ThecusOS 7.0
The N2810PRO runs on the newly designed ThecusOS 7.0 offering an easy to use, intuitive user interface. Introducing several new features including Photo Station, Thecus App Center, User Profile, ThecusOS 7.0 delivers significant improvements in design, performance and user experience.

Seamless 4K Multimedia Playback
The N2810PRO is equipped with the newest generation Intel Celeron N3160 1.6 GHz Quad Core processors (burst to 2.08 GHz) and 4 GB DDR3 RAM. Furthermore the N2810PRO supports AES-NI encryption engine for increased performance and enhanced security. The N2810PRO steps up to the challenges that 4K playback creates and provides a robust hardware platform that is able to handle multiple tasks with ease.

Uninterrupted Accessibility with Thecus System Failover
The Thecus System Failover feature is a fault tolerance process that creates mirrored data volumes. With at least two Thecus NAS available, data is copied by schedule and all changes are mirrored between the two NAS. While the second NAS is not visible, it communicates with the primary NAS. In the event of a power or network failure, a scheduled maintenance or other unforeseen circumstances, System Failover automatically redirects operations to the secondary Thecus NAS, which then acts as the primary NAS.

Secure Remote Access with Virtual Private Network (VPN)
A VPN Server allows users to remotely access a secure network. with VPNs, businesses will be able to utilize a cost-effective, scalable and secured network infrastructure for its client base.

Snapshot Your Data
With BTRFS support, Thecus NAS users can enjoy the simplicity of snapshot backups. Through BTRFS subvolumes, snapshots of data at various time points can be manually or automatically made and just as easily later restored to rollback files or folders to previous states.

Complete Data Backup Solution

Bundled with Free Acronis Backup Software
Thecus brings the best to the table with Acronis's advanced backup software. Back up all your data with One-click Protection or pick and choose only your most important files. Acronis sports a slick interface, user-friendly design and comprehensive features to keep your data safe.

Local Backup & Time Machine
PC users can utilize local backup devices while Mac users can automatically back up their entire Mac. Whenever a need arises, users can simply go back and recover files quickly and effortlessly

Real-Time Remote Replication (Rsync)
This innovative backup feature allows users to back up files instantly to their NAS, external hard drive or remote NAS. RTRR saves you time as it is able to back up data immediately and automatically.

The Cloud Done Your Way
Personal Cloud
We're a mobile society and our NAS solutions are keeping up! Incorporated into Thecus NAS is support for Thecus's T-OnTheGo smartphone app. Supporting both iOS and Android, this NAS management software enables users to access, copy, stream and edit any data between their NAS and mobile device. Your own personal cloud, available from anywhere with internet access.

Cloud Backup
The private and public clouds meet with Thecus' new DropBox, Amazon S3 and Elephant Drive cloud backup functionality! Guard your data with RAID at home and an additional level of protection in the Cloud. Just drag and drop files into the folder on your NAS and access them on any computer or mobile device with DropBox, Amazon S3 or Elephant Drive.

Remote Access via Free DDNS
Enable easy access to your NAS with Dynamic DNS. DDNS allows users to allocate and access their NAS files via the internet remotely. When the IP address is changed, the DDNS server will automatically adjust your address to make sure that remote access is always available. In short, DDNS provides convenient remote access to your Thecus NAS possible by utilizing domain names instead of IP digits.

Multimedia Data Center

Direct Media File Playback via HDMI Output
Transform your NAS into the ultimate multimedia hub! Thecus NAS integrated HDMI output allows you to connect your NAS directly to your TV for direct device management and multimedia playback.

Media Streaming to XBOX360/PS4 via Plex Media Server
With the Plex Media Server installed on your Thecus NAS, various devices on your network (such as your Xbox 360 and mobile devices) can connect to and stream your local and online media. The server can also automatically assemble iTunes, iPhoto and Aperture content. From your favorite videos to your mountains of music, Plex makes it easy to manage and enjoy all of your media on your Thecus NAS.

TV Streaming via Apple TV/Chromecast
Thecus NAS allow you to have your very own entertainment hub wherever you go. With TV streaming support and mobile apps, you can share all your favorite photos, music and videos.

7 Modes of Link Aggregation for Faster Transfers
Link aggregation can sustain multiple network connections and provide redundancy in case one of the links fails. Thecus NAS supports 7 modes which provide Load Balance, Failover, 802.3ad, Balance-XOR, Balance-TLB and Balance-ALB, Broadcast.

Bundled with Free Intel Security
Thecus' innovative hardware helps prevent failures. But sometimes you have to protect the NAS against itself. Adding an antivirus to the already comprehensive software bundle will provide the necessary software protection by scanning the files on your NAS and defending it against possible threats. Intel Security is the world's largest dedicated security technology company and shares Thecus' spirit of dedication and quality. By establishing a strong partnership with them, Thecus will allow users the benefit of Intel Security's powerful software on their NAS entirely for free.

Flexible Storage Allocation with iSCSI LUN and Thin-Provisioning
Get the most out of your storage space with the extreme speed of iSCSI and the efficiency of iSCSI thin provisioning. Connect through iSCSI for the fastest data transfer speeds available and make wasted disk space a thing of the past with thin provisioning's flexible storage functionality.

Thecus N2810PRO Features

  • Embedded with Intel Celeron N3160 Quad Core CPU
  • Running on the newly-designed, enhanced ThecusOS 7.0
  • Seamless 4K Multimedia Playback
  • Additionally to HDMI now with DisplayPort and SPDIF
  • Uninterrupted Accessibility with Thecus System Failover
  • Secure Remote Access with Virtual Private Network (VPN)
  • Faster Transfers: 2 LAN Ports for Link Aggregation
  • 99% Virus Prevention: Bundled with Free Intel Security
  • Complete Client Side Protection: Bundled with Free Acronis Software

What's in the box:

  • Thecus N2810PRO 2-Bay Tower NAS Storage Enclosure
  • Accessory Bag
  • Ethernet Cable
  • Power Adaptor Cable Tie
  • Power Adaptor
  • Power Cord
  • Quick Installation Guide
  • HDD Compatibility List Card
  • CD-Title (OS7 Universal CD)
  • Thecus 3 Year Limited Warranty
