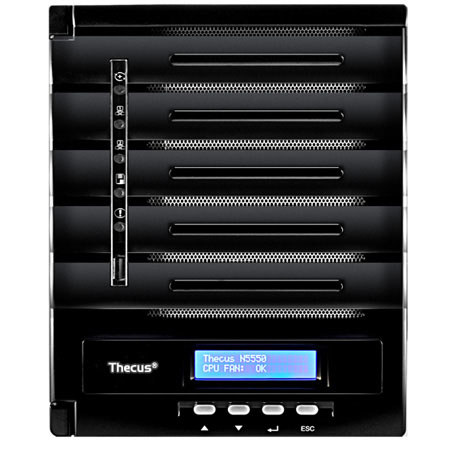

Thecus N5550 NAS Server, Intel Atom Processor, 2GB DDR3 RAM, USB 3.0 Interface, HDMI Output, 1GB SATA DOM

SKU: THN5550

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2016-06-15T08:40:40

Rated 5 out of 5

great product

easy transition from our old server ,would recommend Thecus and Adorama

GREG A.

Thecus N5550 Specifications

  • Processor

    Intel Atom Processor

  • System Memory

    2GB DDR3

  • LAN Interface

    RJ-45x2: 10/100/1000 BASE-TX Auto MDI/MDI-X
    WOL supported

  • USB Interface

    USB 2.0 host port x4 (back x4)
    USB 3.0 host port x1 (front x1)

  • LCM Module

    LCM display
    4 buttons (ENTER, ESC, UP, DOWN)

  • SATA DOM

    1GB

  • HDMI Output

    HDMI port (back x1)

  • VGA Output

    VGA port (back x1)

  • Audio

    MIC input, Line input, Audio output

  • Disk Interface

    5 x SATA for internal
    1 x eSATA for external

  • Power Supply

    200W Power Supply

  • USB UPS

    Supported

  • Thermal/Fan control

    Thermal sensor on processor temperature
    System FAN speed controlled by temperature

  • System Clock

    Battery-backed up system clock

  • Power Management

    Auto power on after shutdown due to power loss

  • Buzzer

    Adjustable frequency alarm

  • Buttons

    Power button
    LCM button

  • Environment

    Temperature: 5deg.C to 40deg.C
    Humidity: 0 - 80 % R.H. (Non-condensing)

  • Chassis

    Tower Metal Chassis

  • Certificates

    CE/FCC/C-Tick/VCCI/BSMI
    RoHS
    WEEE
    VMware, Citrix

  • RAID: Modes

    RAID 0, 1, 5, 6, 10 and JBOD

  • RAID: Auto-rebuild

    Supported

  • RAID: Hot-swap

    Supported

  • RAID: Hot Spare

    Supported

  • RAID: Online RAID Migration

    Supported

  • RAID: Online RAID Expansion

    Supported

  • RAID: RAID Volume Encryption

    AES256bit

  • Disk: Power Management

    Available spin-down while idle setting

  • Disk: Bad Block Scanning

    Supported

  • Disk: Smart Info

    Supported

  • Disk: Smart Test

    Supported

  • Disk: Disk Roaming

    Supports volume-based roaming to other Thecus NAS

  • Network: Configuration

    Fixed IP address, dynamic IP address

  • Network: Transport Protocols

    TCP/IP/AppleTalk

  • Network: File Protocols

    SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP

  • Network: Link Aggregation

    Load balance, Failover, 802.3ad, Balance-XOR, Balance-TLB, Balance-ALB

  • Network: TCP/IP

    IPV4

  • Data Access: Client OS Support

    Windows 2000/XP/2003/Vista/ 7
    UNIX/Linux
    Mac OS X

  • Data Access: FTP

    Built-in FTP server with bandwidth control

  • Data Access: Secure FTP

    Built-in secure FTP server with bandwidth control

  • Data Access: TFTP

    Users can download and upload files with TFTP programs

  • Data Access: Download Manager

    BT download (via Transmission module)
    HTTP/FTP/BT/eMule (via DLM module)
    NZB download (via NZB module)

  • Data Access: Printer Server (IPP)

    Supports USB printers
    Supports a wide range of IPP printers
    Client can manage print tasks (list/delete) via web user interface

  • Client Incremental Data Backup

    Acronis True Image (OEM version)

  • Client System Disaster Recovery

    Acronis True Image (OEM version)

  • Client Side Backup Software

    Thecus Backup Utility (Windows/Mac OS X)

  • Rsync Backup

    Rsync replicates data between two systems (via Rsync module)

  • DVD Backup

    Supported

  • Mac OS X Time Machine

    Supported

  • iSCSI Target/Initiator

    Supports Microsoft/Mac OS X/Linux initiators and Thecus NAS targets

  • iSCSI Thin Provisioning

    Supported

  • MPIO

    Supported

  • MCS

    Supported

  • Clustering

    Supported

  • SCSI3 Persistent Group Reservation

    Supported

  • Scheduled Power On/Off

    Supported

  • Multiple RAID

    Supported

  • Multiple File System Selectable

    EXT3/EXT4/XFS

  • iTunes Server

    Supports AAC, MP3 w/ID3 tag and WAV

  • Piczza! Web Server (via module)

    Supports GIF, JPG (JPEG), BMP and PNG
    Supports EXIF display
    Supports slide shows

  • Media Server

    Supports uPnP AV streaming protocol (via Twonkymedia module)

  • User Authentication: Local User

    Supports built-in user accounts

  • User Authentication: Local Group

    Supports built-in user groups

  • User Authentication: Windows ADS

    Supported

  • File System: Type

    Journaling File System

  • File System: Language Support

    Unicode Support

  • File System: Authorization (ACL)

    "Read", "write", or "deny" privileges to individual users or groups in folders and sub-folders

  • File System: User Quota

    Supported

  • User Interface

    Web-based user interface supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish and Portuguese.

  • Utility Program

    MS Windows Setup Wizard
    Supports Windows 2000/XP/2003/Vista/7
    Mac OS X Setup Wizard

  • Email Notifications

    Sends system messages via email to the system administrator

  • SNMP Trap

    System information trap out

  • Mobile Applications: Thecus Dashboard

    Mobile monitoring and administration (via module)

  • Mobile Applications: ThecusShare

    Uploading, downloading and streaming multimedia

  • Mobile Applications: Thecus-Disk

    Manage files and folders on Thecus NAS, playback audio and video media and view photos and documents

  • Recycle Bin

    Supported

  • Web Disk

    Supported (via module)

  • Web Server

    Supported (via module)

  • ISO Mount

    Supported

  • User/System Module

    Supported

  • IP Cam Surveillance

    Supports up to 5 IP cameras (via module)

  • Auto Module Installation

    Thecus's module server automatically provides the latest modules and updates through the user interface.

  • Cloud Backup

    Dropbox, ElephantDrive, Amazon S3, Acronis (via module)

  • Local Display

    X-Window via HDMI output

  • Antivirus

    McAfee (via module)

  • Dimensions (H x W x D)

    230 x 190 x 240 mm (9 x 7.48 x 9.44")

  • UPC Code

    884956003526

About Thecus N5550

FEATURED REVIEWS

great product

By GREG A.

easy transition from our old server ,would recommend Thecus and Adorama

The Thecus N5550 is proud to present itself as a technological innovator. Once again, Thecus releases an all new 5-bay N5550 server to lead the competition. The past proves merit: link aggregation, LCM display, USB 3.0, multi RAID functions and so on. Impressive technologies have been used to develop the new N5550 NAS to serve one single purpose: improve user experience and satisfaction.

Intel Atom CPUs are designed to work without fans. This will dramatically reduce NAS noise and power consumption, Associated with large amounts of DDR3, Intel Atom CPUs will provide much better performance. Don't be restricted to a 4-bay NAS, bring it up a notch, Thecus N5550 is available and boosts the best performance with a great price, without entering larger bay units. Multi-users environment, web hosting, intense backup, data encryption, application serving, heavy RAID computations and HD multimedia streaming: welcome to the world of smooth multi-tasking.

The N5550 NAS is McAfee AntiVirus embedded meaning that users can have confidence that their sensitive data will be protected by the most advanced antivirus software, McAfee. Thecus started integrating USB 3.0 more than one year ago, enabling this blazing fast protocol on most storage devices by embedding a PCI-e slot. On popular demand, future NAS will equip at least one port for USB 3.0 transfer rates of 10 times faster than USB 2.0.

After installing the proper module, simply plug a screen by the use of HDMI output, you don't even need a computer anymore to check on your NAS. Local display via HDMI makes things that much more convenient, directly attach keyboard and mouse to start data management. The N5550 also supports VGA output for attaching traditional televisions, projectors and monitors. VGA output makes this 5-bay NAS convenient to display presentation or media files when HDMI is not on hand. To add, users can attach speakers directly to the N5550 NAS to play audio files. With audio out, managing media and audio files is simple; attach the speaker plug to audio out and you're set to go. Ideal for small installations and/or mobile users, these features are designed to lower the total cost of ownership of your network architecture.

Thecus N5550 Features

  • Data Burn: NAS data can now be burned directly to CD, DVD and Blu-ray discs with Data Burn, this hassle-free module makes burning data to a disk effortless. In addition, burning ISO image file is also supported
  • Antivirus: Thecus innovative hardware helps prevent failures. But you have to protect the NAS against itself. Adding an antivirus to the already comprehensive software bundle will provide the necessary software protection by scanning the files on your NAS and defending it against possible threats
  • Cloud Backup: The private and public clouds meet with Thecus' new DropBox and ElephantDrive cloud backup functionality! Guard your data with RAID at home and an additional level of protection in the Cloud
  • HDMI Output: Make your NAS into the ultimate multimedia hub! The N5550's HDMI output allows you to connect your NAS directly to your TV for device management, web browsing with Flash support and even HD video playback
  • USB 3.0 Connectivity: When it comes to data management, Thecus NAS truly let you have it your way. Create multiple RAID volumes each supporting different RAID modes including RAID 0, 1, 5, 6, 10 and JBOD for your own balance of performance and data protection
  • Multiple File Systems: Support for multiple file systems including EXT3, EXT4 and XFS, gives Thecus NAS flexibility to handle many different types of environments. Users can simultaneously use different file systems across multiple RAID volumes to get the best of each one
  • iSCSI Thin-Provisioning: Connect through iSCSI for the fastest data transfer speeds available and make wasted disk space a thing of the past with thin provisioning flexible storage functionality
  • iOS/Android Connectivity: In the modern world, nothing is as important as reaching your data from anywhere. With ThecusShare and the Thecus Dashboard, you can manage your NAS and upload to and download/stream from your NAS using an iOS or Android device on the go
  • Rsync: Backing up your data is very necessary and everyone has specific needs when it comes to storage. Thecus' Rsync functionality gives users great flexibility with remote backup capability, a flexible scheduler and the stability of Linux-based transfer
  • User Quotas: Divide the massive storage of a Thecus NAS among multiple users. Whether there are two users or 100, user quotas make it easy to divvy up and manage disk space

Key Features

  • Burn data directly to CD, DVD and Blu-ray discs
  • Antivirus
  • Cloud Backup
  • HDMI Output
  • USB 3.0 Connectivity
  • Multiple File Systems
