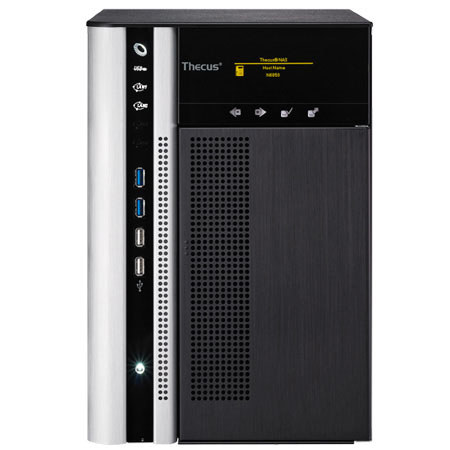

Thecus TopTower N6850 Enterprise Network Storage Tower, Intel Pentium G620 2.6 GHz Processor, 2GB System Memory, 10GbE Ready Fiber/10GBASE-T

SKU: THN6850

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Thecus N6850 Specifications

  • Processor

    Intel Pentium G620 2.6Ghz

  • System Memory

    2GB DDR3

  • LAN Interface (PCI-e)

    RJ-45x2: Intel 82574L 10/100/1000 BASE-TX Auto MDI/MDI-X
    WOL supported
    PCI Express 8 lane slot x2

  • USB Interface

    USB 2.0 host port x4 (Type A, one has power always on function) (front x2, back x2)
    USB 3.0 host port x4 (front x2, back x2)

  • OLED

    Displays system status and information (Multilingual)

  • HDMI Output

    HDMI port (back x1)

  • Audio

    MIC input, Line input, Audio output

  • Disk Interface

    6 x SATA for internal

  • Power Supply

    Single power supply (80plus)

  • System Fan

    Hot swappable (x2)

  • System Clock

    Battery-backed up system clock

  • Power Management

    Auto power on after shutdown due to power loss

  • Buzzer

    Adjustable frequency alarm

  • Touch Panel

    Power button
    OLED button (ENT, ESC, UP, DOWN)

  • Compatibility

    10GbE PCI-e card
    USB/slim CD/DVD/Blu-Ray drive
    UPS

  • RAID

    RAID Modes: RAID 0, 1, 5, 6, 10, 50 and JBOD
    Auto-rebuild: Supported
    Hot-swap: Supported
    Dedicated Hot Spare: Supported
    Global Hot Spare: Supported
    Online RAID Migration: Supported
    Online RAID Expansion: Supported
    RAID Volume Encryption: AES256bit

  • Disk Power Management

    Available spin-down while idle setting

  • Bad Block Scanning

    Supported

  • SMART Info

    Supported

  • SMART Test

    Supported

  • Disk Roaming

    Supports volume-based roaming to other Thecus NAS

  • Network Configuration

    Fixed IP address, dynamic IP address

  • IP Sharing Mode

    Can be enabled/disabled

  • Transport Protocols

    TCP/IP/AppleTalk

  • File Protocols

    SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP

  • Link Aggregation

    Load balance, Failover, 802.3ad, Balance-XOR, Balance-TLB, Balance-ALB

  • TCP/IP

    IPV6 & IPV4

  • Client Incremental Data Backup

    Acronis True image (OEM version)

  • Client System Disaster Recovery

    Acronis True image (OEM version)

  • Client Side Backup Software

    Thecus Backup Utility (Windows/Mac OS X)

  • Rsync Backup

    Rsync replicates data between two systems (via Rsync module)

  • DVD Backup

    Supported

  • Mac OS X Time Machine

    Supported

  • iSCSI Target/Initiator

    Supports Microsoft/Mac OS X/Linux initiators and Thecus NAS targets

  • iSCSI Thin Provisioning

    Supported

  • MPIO

    Supported

  • MCS

    Supported

  • Clustering

    Supported

  • SCSI3 persistent group reservation

    Supported

  • Scheduled Power On/Off

    Supported

  • Multiple RAID

    Supported

  • Multiple File System Selectable

    EXT3/EXT4/XFS

  • Client OS Support

    Windows 2000/XP/2003/Vista/7
    UNIX/Linux
    Mac OS X

  • FTP

    Built-in FTP server with bandwidth control

  • Secure FTP

    Built-in secure FTP server with bandwidth control

  • TFTP

    Users can download and upload files with TFTP programs

  • Download Manager

    BT download (via Transmission Module)
    HTTP/FTP/eMule (via DLM Module)
    NZB download (via NZB Module)

  • Printer Server (IPP)

    Supports USB printers
    Supports a wide range of IPP printers
    Client can manage print tasks (list/delete) via web user interface

  • iTunes Server

    Supports AAC, MP3 w/ID3 tag and WAV

  • Piczza! Web Server (via module)

    Supports GIF, JPG (JPEG), BMP, PNG
    Support EXIF display
    Support slide show

  • Media Server

    Support uPnP AV streaming protocol (via Twonkymedia module)

  • File System Type

    Journaling File System

  • Language Support

    Unicode Support

  • Authorization (ACL)

    "Read", "write", or "deny" privileges to individual users or groups in folders and sub-folders

  • User Quota

    Supported

  • User Quota Sync

    Supported

  • User Interface

    Web-based user interface supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish and Portuguese

  • Utility Program

    MS Windows Setup Wizard
    Supports Windows 2000/XP/2003/Vista/7
    Mac OS X Setup Wizard

  • Email Notifications

    Sends system messages via email to the system administrator

  • SNMP Trap

    System information trap out

  • SSH

    Supported

  • Thecus Dashboard

    Mobile monitoring and administration (via module)

  • ThecusShare

    Uploading, downloading and streaming multimedia

  • Thecus-Disk

    Manage files and folders on Thecus NAS, playback audio and video media and view photos and documents

  • Recycle Bin

    Supported

  • Web Disk

    Supported (via module)

  • Web Server

    Supported (via module)

  • ISO Mount

    Supported

  • IP Cam Surveillance

    Supports up to 10 IP cameras (via module)

  • Auto Module Installation

    Thecus's module server automatically provides the latest modules and updates through the user interface

  • Cloud Backup

    Dropbox, ElephantDrive, Amazon S3, Acronis (via module)

  • Local Display

    X-Window via HDMI output

  • Antivirus

    McAfee (via module)

  • Temperature

    0deg.C to 40deg.C

  • Humidity

    0 - 80 % R.H. (Non-condensing)

  • Dimensions (HxWxD)

    320.4 x 215 x 282.6 mm/12.61 x 8.46 x 11.12"

  • UPC Code

    884956003304

About Thecus N6850

The Thecus TopTower N6850 Enterprise Network Storage Tower is an easy-to-use storage server that allows a dedicated approach to storing and distributing data on a network. Data reliability is ensured with RAID features that provide data security and recovery. Gigabit Ethernet ports enhance network efficiency, allowing Thecus IP storage to take over file management functions, increase application and data sharing and provide faster data response. The Thecus IP storage offers data mobility with a disk roaming feature that lets you swap working hard drives for use in other Thecus IP storage, securing the continuity of data in the event of hardware failure. The Thecus IP storage allows data consolidation and sharing between Windows (SMB/CIFS), UNIX/Linux and Apple OS X environments.

Thecus N6850 Features

  • Data Burn: NAS data can now be burned directly to CD, DVD and Blu-ray discs with Data Burn, this hassle-free module makes burning data to a disk effortless
  • Antivirus: Thecus' innovative hardware helps prevent failures. Adding an antivirus to the already comprehensive software bundle will provide the necessary software protection by scanning the files on your NAS and defending it against possible threats
  • Cloud Backup: The private and public clouds meet with Thecus' new DropBox and ElephantDrive cloud backup functionality! Guard your data with RAID at home and an additional level of protection in the Cloud
  • Touch Panel: Seeking for an advanced monitoring and user flexibility screen? Touch Panel display technology offers top-quality advantages when integrated in a NAS. With clear navigation buttons: back, next, enter and escape, Touch Panel is designed for any type of user
  • HDMI Output: Make your NAS into the ultimate multimedia hub! The N6850's HDMI output allows you to connect your NAS directly to your TV for device management
  • 10GbE Ready: High-end data centers often need a level of speed that today's average Internet cannot provide. This Thecus NAS is 10 Gb Ethernet ready to satisfy the toughest needs of today and tomorrow
  • USB 3.0 Connectivity: The next generation of connectivity is here with speeds 10x faster than USB 2.0. Whether connecting digital cameras and smart phones, backing up large external hard drives, or extending the capacity of your NAS, USB 3.0 will make sure it's done in no time at up to 5 Gbit/s
  • Acronis True Image: Thecus brings the best to the table with Acronis' advanced backup software. Back up all your data with One-click Protection or pick and choose only your most important files. Acronis sports a slick interface, user-friendly design & comprehensive features to keep your data safe
  • Multiple RAID: When it comes to data management, Thecus NAS truly let you have it your way. Create multiple RAID volumes each supporting different RAID modes including RAID 0, 1, 5, 6, 10, 50 and JBOD for your own balance of performance and data protection
  • Multiple File Systems: Support for multiple file systems including EXT3, EXT4 and XFS, gives Thecus NAS flexibility to handle many different types of environments. Users can simultaneously use different file systems across multiple RAID volumes to get the best of each one
  • iSCSI Thin-Provisioning: Get the most out of your storage space with the extreme speed of iSCSI and the efficiency of iSCSI thin provisioning
  • iOS/Android Connectivity: In the modern world, nothing is as important as reaching your data from anywhere. With ThecusShare and the Thecus Dashboard, you can manage your NAS and upload to and download/stream from your NAS using an iOS or Android device on the go
  • Rsync: Backing up your data is very necessary and everyone has specific needs when it comes to storage. Thecus' Rsync functionality gives users great flexibility with remote backup capability, a flexible scheduler and the stability of Linux-based transfer
  • User Quotas: Divide the massive storage of a Thecus NAS among multiple users. Whether there are two users or 100, user quotas make it easy to divvy up and manage disk space
  • PCI-e slot: Thecus NAS products are ready for a number of emerging technologies. Through the built in PCI-e slot, business users can add a 10G Ethernet Adaptor for lighting fast transfer speeds, or a USB 3.0 Adaptor Card to enjoy next-generation connectivity

Key Features

  • Burn data directly to CD, DVD and Blu-ray discs
  • Antivirus
  • Cloud Backup
  • Touch Panel
  • HDMI Output
  • 10GbE Ready

What's in the box:

  • Thecus TopTower N6850 Enterprise Network Storage Tower
  • QIG (Quick Installation Guide)
  • CD-Title (Acronis Backup CD & Universal CD & TwonkyMedia CD)
  • Ethernet Cable
  • Accessory Bag
  • HDD Compatibility List Card
  • Power Cord
  • Thecus Warranty
