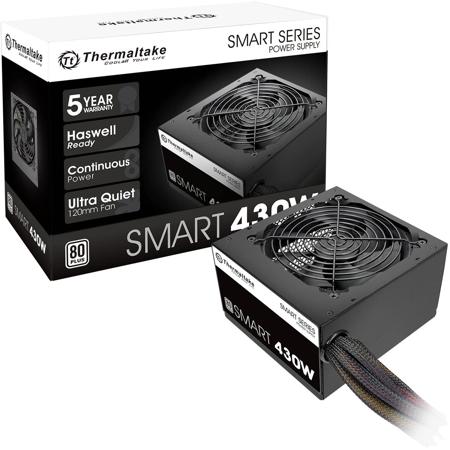

Thermaltake Smart 430W 80 Plus Standard Power Supply Unit
See all Thermaltake items

Thermaltake Smart 430W 80 Plus Standard Power Supply Unit

SKU: THPSSPD0430N

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Thermaltake Smart 430W Specifications

AC Input

AC Input

Jump to...

  • Input Voltage

    100V - 240V

  • Input Current

    8A Max

  • Frequency

    50Hz-60Hz

Output

Jump to...

  • DC Output

    +3.3V, +5V, +12V, -12V, +5VSB

  • Max Output Current

    20A, 13A, 32A, 0.5A, 2.5A

  • Max Output Power

    100W, 384W, 6.0W, 12.5W

  • Max. Output Capacity

    430W

Connector

Jump to...

  • Connector

    1x 24-pin, Main Power Connector
    1x 4+4-pin, ATX 12V
    4x 4-pin SATA
    2x 6+2-pin PCI-E
    4x 4-pin, Peripheral
    1x 4-pin Floppy Adapter

General

Jump to...

  • RGB Fan

    No

  • Form Factor

    ATX

  • Type

    Intel ATX 12V 2.3

  • Color

    Black

  • PFC

    Active PFC

  • Power Good Signal

    100-500 msec

  • Hold Up Time

    16msec at 80% of full load

  • Operating Temperature

    41 to +104 Degree F (5 to + 40 Degree C)

  • Operating Humidity

    20% to 85%, non-condensing

  • Storage Temperature

    -40 to 131 Degree F (-40 to + 55 Degree C)

  • Storage Humidity

    5% to 95%, non-condensing

  • Cooling System

    120mm Fan: 1800 R.P.M. +/- 10%

  • Efficiency

    82-86% efficiency @ 20-100% load

  • MTBF

    100,000 hrs minimum

  • Safety Approval

    CE/CB/TUV/ UL/ FCC

  • PCI-E 6+2pin

    2x

  • Protection

    OVP, OPP, SCP

Other

Jump to...

  • UPC Code

    841163002285

About Thermaltake Smart 430W

Incorporating various high-quality components, the Smart Series - models are rated from 430W to 700W - saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

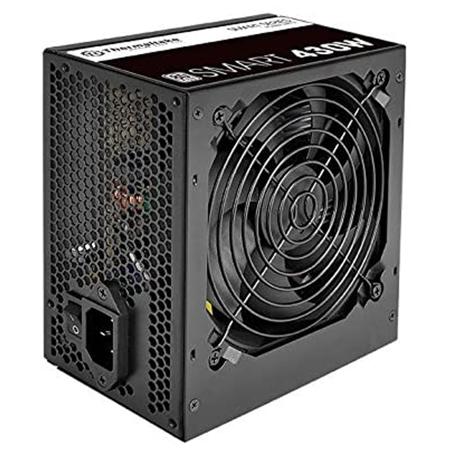

120mm Ultra Quiet Fan
SMART series adopts an 120mm cooling fan with intelligent RPM control to guarantee cool performance and silent operation.

Multiple Connectors
Smart Series offers cable selection for users while powering the system at an advantageous voltage. The multiple connectors make cable installation an easy task.

80 PLUS Standard Certified and Intel C6/C7 States Ready
Deliver up to 86% efficiency under real world load conditions to promise lowest power losses. Additionally, the Smart Series has been optimized to work with all generations of Intel's processors to achieve maximum energy saving.

High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.

Single +12V Output
Smart Series is equipped with a powerful +12V rail, superior performance under all types of system loading.

Thermaltake Smart 430W Features

  • 120mm Ultra Quiet Fan
  • Multiple Connectors
  • 80 PLUS Standard Certified and Intel C6/C7 States Ready
  • High-Quality Components
  • Single +12V Output

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 120mm Ultra Quiet Fan
  • Multiple Connectors
  • 80 PLUS Standard Certified and Intel C6/C7 States Ready
  • High-Quality Components
  • Single +12V Output

What's in the box:

  • Smart 430W 80 Standard Power Supply Unit
  • Thermaltake 5 Year Limited Warranty
