Thermaltake Smart BX1 750W 80 Plus Bronze Non-Modular Power Supply Unit with Hydraulic Bearing Fan

SKU: THPSSPD0ABU1

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Thermaltake Smart BX1 750W Specifications

AC Input

AC Input

Jump to...
  • Input Voltage

    100V - 240Vac

  • Input Current

    12A Max.

  • Frequency

    50Hz-60Hz

  • DC Output

    +3.3V, +5V, +12V, -12V, +5VSB

  • Max Output Current

    24A, 18A, 56A, 0.5A, 2.5A

  • Max Output Power

    100W, 672W, 6.0W, 12.5W

  • Total Power

    750W

Connector

Jump to...
  • Connector

    1x 24-pin, Main Power Connector
    1x 4+4-pin, ATX 12V
    8x 4-pin SATA
    4x 6+2-pin PCI-E
    4x Peripheral
    1x 4-pin Floppy Adapter

General

Jump to...
  • RGB Fan

    No

  • Form Factor

    ATX

  • Type

    ATX 12V v2.3 and EPS v2.92

  • Peak Output Capacity

    900W

  • Color

    Black

  • PFC

    Active PFC

  • Power Good Signal

    100-500 msec

  • Hold Up Time

    > 16msec at 70% of full load

  • Operating Temperature

    41 to +104 Degree F (5 to + 40 Degree C)

  • Operating Humidity

    20% to 85%, non-condensing

  • Storage Temperature

    -40 to 131 Degree F (-40 to + 55 Degree C)

  • Storage Humidity

    10% to 95%, non-condensing

  • Cooling System

    12cm Hydraulic bearing fan

  • Efficiency

    Meet 80 PLUSBronze at 115Vac input.

  • MTBF

    100,000 hrs minimum

  • Safety Approval

    CE/CB/TUV/ UL/ FCC/ BSMI

  • PCI-E 6+2PIN

    4

  • Dimension (W x H x D)

    5.9 x 3.3 x 5.5" (150 x 86 x 140mm)

  • UPC Code

    841163006269

About Thermaltake Smart BX1 750W

Smart BX1 750W
Built to deliver 80 PLUS Bronze with 88% power efficiency, the Smart BX1 series is available in 450W - 750W models. Constructed with a 120mm hydraulic bearing fan, Japanese main capacitors and other premium components to help deliver a continuous and stable power output at 40 Degree C, near silent operation and reliable performance. With an ample 5-year warranty, the Smart BX1 is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features.

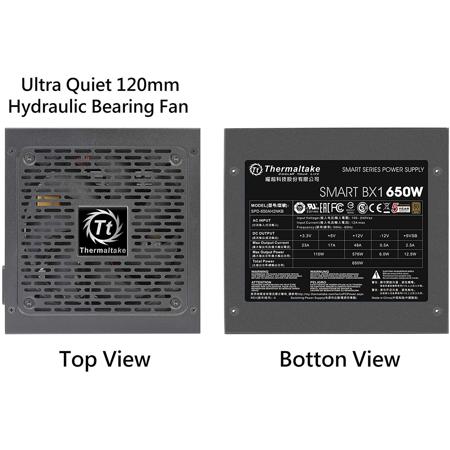

Ultra Quiet 120mm Hydraulic Bearing Fan
Featuring a 120mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.

Low Ripple Noise
All ripples are lower than 80mV on +12V, and lower than 40mV on +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components, such as high-end graphics cards, to function reliably for longer.

Premium Japanese Main Capacitor
Providing great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.

Multiple Connectors
Soft black cables come with sleeve cabling, designed to make cable installation an easy task while fully powering the system at optimal voltages.

80 PLUS Gold Certified and Intel C6/C7 States Ready
Smart BX1 series saves energy through its high energy efficiency up to 88% and is certified to 80 PLUS Bronze. It has been optimized to work with all generations of Intel's processors to achieve maximum energy saving.

Thermaltake Smart BX1 750W Features

  • Ultra Quiet 120mm Hydraulic Bearing Fan
  • Low Ripple Noise
  • Premium Japanese Main Capacitor
  • High Amperage Single +12V Rail
  • Multiple Connectors
  • 80 PLUS Gold Certified and Intel C6/C7 States Ready

Key Features

  • Ultra Quiet 120mm Hydraulic Bearing Fan
  • Low Ripple Noise
  • Premium Japanese Main Capacitor
  • High Amperage Single +12V Rail
  • Multiple Connectors
  • 80 PLUS Gold Certified and Intel C6/C7 States Ready

What's in the box:

  • Smart BX1 750W 80 Plus Bronze Non-Modular Power Supply Unit with Hydraulic Bearing Fan
  • Thermaltake 5 Year Limited Warranty
