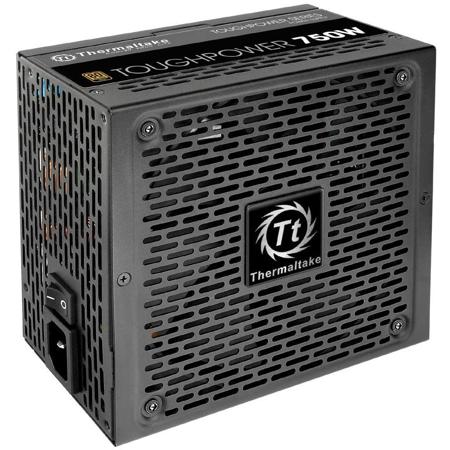

Thermaltake Toughpower 750W 80 Plus Gold Semi Modular APFC Power Supply Unit

SKU: THPST0750MPC

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?DAVID R : My friend told me to get this.MATTHEW M : Its the best

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Thermaltake Toughpower 750W 80 Plus Specifications

AC Input

AC Input

Jump to...
  • Input Voltage

    100V - 240V

  • Input Current

    10A Max.

  • Frequency

    47Hz-63Hz

  • DC Output

    +3.3V, +5V, +12V, -12V, +5VSB

  • Max Output Current

    20A, 20A, 62A, 0.8A, 3.0A

  • Max Output Power

    100W, 744W, 9.6W, 15W

  • Max. Output Capacity

    750W

Connector

Jump to...
  • Connector

    1x 24-pin, Main Power Connector
    1x 4+4-pin, ATX 12V
    12x 5-pin SATA
    4x 6+2-pin PCI-E
    4x 4-pin, Peripheral
    1x 4-pin Floppy Adapter

General

Jump to...
  • RGB Fan

    No

  • Form Factor

    ATX

  • Type

    Intel ATX 12V V2.3 & EPS 12V standards

  • Peak Output Capacity

    900W

  • Color

    Black

  • PFC

    Active PFC

  • Power Good Signal

    100-500 msec

  • Hold Up Time

    12msec (minimum) @ 80% of full load at 115V / 230V input

  • Operating Temperature

    32 to +104 Degree F (0 to + 40 Degree C)

  • Operating Humidity

    20% to 90%, non-condensing

  • Storage Temperature

    -40 to 158 Degree F (-40 to + 70 Degree C)

  • Storage Humidity

    5% to 95%, non-condensing

  • Cooling System

    14cm hydraulic bearing fan

  • Efficiency

    87-92% efficiency @ 20-100% load

  • MTBF

    120,000 hrs minimum

  • Safety Approval

    UL/ TUV/ CE/ FCC/ BSMI/ EAC certification

  • PCI-E 6+2pin

    4

  • Protection

    OVP, OPP,SCP

  • UPC Code

    841163053201

About Thermaltake Toughpower 750W 80 Plus

Thermaltake Toughpower 750W Gold (Modular)
The Thermaltake Toughpower series is a premium 80 PLUS Gold certified power supply that uses the highest quality components for stable performance, excellent features with unbeatable efficiency vital to the current high-end system in market even in demanding conditions. With the 80Plus Gold certification for its high power efficiency, and a single strong 12V rail flexibly routes the maximum available power to your CPU and graphics card, offering maximized power usage and easy setup. Toughpower 750W Gold (Modular) comes with modular design to reduce cable clutter; and ultra-quiet fan delivers silent cooling, thus the entire computer and power supply can operate at its peak moment.

Ultra Quiet 140mm Fan
Toughpower 750W Gold series adopt 140mm cooling fan with intelligent fan speed control guarantees cool performance and silent operation.

80 PLUS Gold Certified and Kaby Lake-Ready
Deliver up to 90% efficiency under real world load conditions to promise lowest power losses. In addition, Toughpower Gold Series is already prepared for Intel's new, Seventh-generation Kaby Lake processor to achieve maximum energy savings.

Flat Modular Cables
Toughpower 750W Gold series adopt flat modular cables not only eliminate cable clutter within the system, but takes up less space for better airflow.

100% High Quality Japanese Made Capacitors
Japanese made capacitors provide uncompromised performance and reliability.

Massive and Dedicated +12V Output
Toughpower Series is equipped with a powerful single +12V rail

Thermaltake Toughpower 750W 80 Plus Features

  • Ultra Quiet 140mm Fan
  • 80 PLUS Gold Certified and Kaby Lake-Ready
  • Flat Modular Cables
  • 100% High Quality Japanese Made Capacitors
  • Massive and Dedicated +12V Output

Key Features

  • Ultra Quiet 140mm Fan
  • 80 PLUS Gold Certified and Kaby Lake-Ready
  • Flat Modular Cables
  • 100% High Quality Japanese Made Capacitors
  • Massive and Dedicated +12V Output

What's in the box:

  • Toughpower 750W 80 Plus Gold Semi Modular APFC Power Supply Unit
  • Thermaltake 5 Year Limited Warranty
