Black
ATX v3.1
700W
Active PFC
100-150 msec
> 17msec at 80% load
12A - 5A
50Hz/60Hz
100-240V
41 Degree F to 104 Degree F (5 Degree C to 40 Degree C)
20% to 85%, non-condensing
-40 Degree F to 131 Degree F (-40 Degree C to 55 Degree C)
10% to 95%, non-condensing
120mm FDB Fan
Meet 80 PLUS at 115VAC input
100,000 hrs minimum
CB/FCC/cTUVus/ICES
OCP/OVP/UVP/OPP/OTP/SCP
1x 24-Pin ATX Motherboard
2x 4+4-Pin EPS CPU
2x 6+2-Pin PCIe
4x 5-Pin SATA
4x 4-Pin Peripheral / Molex
19.7" (500mm)
25.6" (650mm)
19.7" (500mm)
25.6" (650mm)
31.5" (800mm)
37.4" (950mm)
19.7" (500mm)
25.6" (650mm)
31.5" (800mm)
37.4" (950mm)
23.6" (600mm)
23.6" (600mm)
29.5" (750mm)
Vietnam
5.91 x 3.39 x 5.51" (150 x 86 x 140mm)
841163094525

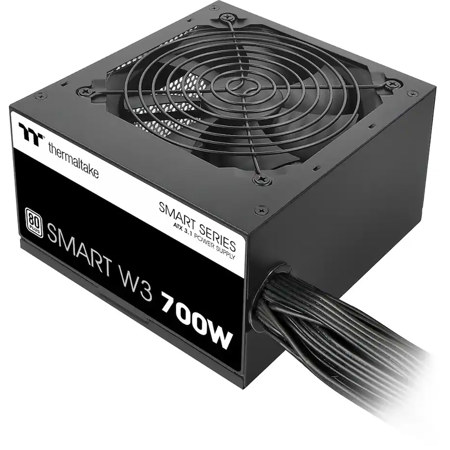

Power up with Efficiency and Stability
The Smart W3 series is certified by 80 PLUS efficiency and designed to meet ATX 3.1 standards, offering 700W. It's perfect for budget-conscious users seeking an efficient and reliable entry-level power supply.
ATX 3.1 Ready
Smart W3 series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.
Silent Cooling
Ultra-quiet 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
High Quality 105 Degree C/221 Degree F Main Capacitor
High quality main capacitor greatly improves the power supplies durability and ensures the Smart W3 series is stable and reliable.
High Amperage Single +12V Rail & DC to DC Design
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.
Built-in Industrial Grade Protection
To protect the hardware, Smart W3 is built with industry grade protections: OCP (Over Current Protection), OVP (Over Voltage Protection), UVP( Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), OT P(Over Temperature Protection).
Non-Modular Soft Cable Design
Smart W3 series comes with soft black cables, designed to make cable installation an easy task while fully powering the system at optimal voltages.
80 PLUS Certified and Intel C6/C7 States Ready
Smart W3 series saves energy through its high energy efficiency up to 80% and is certified to 80 PLUS. It has been optimized to work with all generations of Intel's processors to achieve maximum energy saving.
