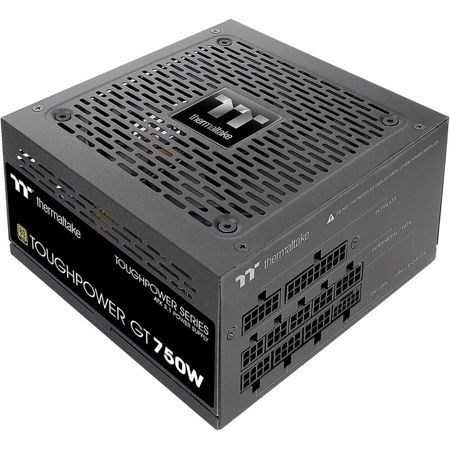

Thermaltake Toughpower GT 750W 80 Plus Gold Certified Fully Modular ATX 3.1 Power Supply Unit, Black

SKU: THTPT750G MFR: PS-TPT-0750FNFAGU-3
$109.99
Earn VIP Reward Points

Key Features

  • Experience stable and reliable power delivery with this 750W 80 Plus Gold certified PSU.
  • Enjoy a tidy PC build thanks to fully modular cables, simplifying installation and airflow.
  • Power your high-performance gaming rig or workstation with efficient ATX 3.1 compliance.
  • Benefit from superior cooling with a quiet 120mm hydraulic bearing fan for optimal thermal management.
  • Protect your valuable components with comprehensive OCP/OVP/UVP/OPP/OTP/SCP safety features.
  • Trust in Thermaltake's brand reliability, ensuring long-lasting performance for your desktop.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Thermaltake Toughpower GT 750W Specifications

  • Color

    Black

  • Compliance

    ATX v3.1

  • Max Output Capacity

    750W
    PCIe 12+4-Pin: 300W

  • PFC (Power Factor Correction)

    Active PFC

  • Power Good Signal

    100-250 msec

  • Hold Up Time

    > 17 msec at 80% load

  • Input Current

    10A Max

  • Input Frequency Range

    50Hz-60Hz

  • Input Voltage

    100-240V

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Operating Humidity

    5% to 85%

  • Storage Temperature

    -40 Degree F to 158 Degree F (-40 Degree C to 70 Degree C)

  • Storage Humidity

    5% to 95%

  • Cooling System

    120mm Hydraulic bearing fan

  • Efficiency

    Meet 80 PLUS Gold at 115VAC input

  • MTBF

    100,000 hrs minimum

  • Safety Approval

    CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK

  • Protection

    OCP/OVP/UVP/OPP/OTP/SCP

  • Total Connectors

    1x 24-Pin ATX Motherboard
    2x 4+4-Pin EPS CPU
    4x 6+2-Pin PCIe
    1x 12+4-Pin PCIe
    6x 5-Pin SATA
    4x 4-Pin Peripheral / Molex

  • PCIe Connector Distances

    23.6" (600mm)

  • SATA Connector Distances

    17.7" (450mm)
    23.6" (600mm)
    29.5" (750mm)

  • Peripheral Connector Distances

    15.7" (400mm)
    21.7" (550mm)
    27.6" (700mm)
    33.5" (850mm)

  • ATX Connector Distance

    21.7" (550mm)

  • EPS Connector Distances

    27.6" (700mm)

  • Country of Origin

    China

  • Dimensions (W x H x D)

    5.91 x 3.39 x 5.51" (150 x 86 x 140mm)

  • UPC Code

    841163097397

About Thermaltake Toughpower GT 750W

The fully modular Toughpower GT series is designed to deliver 80 PLUS Gold efficiency and is compatible with ATX 3.1 standards. Its native PCIe 12V-2x6 (12+4 pin) modular interface efficiently powers PCIe 12+4 pin graphics cards. The Toughpower GT series meets the needs of value-oriented users seeking a new power supply with reliable performance.

ATX 3.1 Ready
Toughpower GT series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% efficiency at low load and complies with required power supply timing standards.

PCIe Gen 5.1 Ready
Toughpower GT series comes with a PCIe 12V-2x6 connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the PCIe 12+4-pin cable connector represents the recommended wattage. The bundled PCIe Gen 5.1 (12+4pin) cable connector of the Toughpower GT 750W can deliver up to 300W for PCIe 12+4pin graphics cards.

Ultra Quiet 120mm Hydraulic Bearing Fan with Smart Zero Fan
Featuring an 120mm Hydraulic Bearing Fan to keep friction at really low level. Designed with our Smart Zero Fan to adjust the fan speed and minimizes undesired noise.

High Amperage Single +12V Rail & High-Class Technologies
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

Fully Modular Low-Profile Cables
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile cables make cable management easier, reduces clutter and increases airflow inside the chassis.

Built-in Industrial Grade Protection
To protect the hardware, Toughpower GT series is built with industry grade protections: OCP (Over Current Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), OTP (Over Temperature Protection).

80 PLUS Gold Certified
Toughpower GT series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS Gold.

Thermaltake Toughpower GT 750W Features

  • 750W Power Supply
  • ATX 3.1 Ready
  • PCIe Gen 5.1 Ready
  • Ultra Quiet 120mm Hydraulic Bearing Fan with Smart Zero Fan
  • High Amperage Single +12V Rail & High-Class Technologies
  • Built-in Industrial Grade Protection
  • 80 Plus Gold Certified

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience stable and reliable power delivery with this 750W 80 Plus Gold certified PSU.
  • Enjoy a tidy PC build thanks to fully modular cables, simplifying installation and airflow.
  • Power your high-performance gaming rig or workstation with efficient ATX 3.1 compliance.
  • Benefit from superior cooling with a quiet 120mm hydraulic bearing fan for optimal thermal management.
  • Protect your valuable components with comprehensive OCP/OVP/UVP/OPP/OTP/SCP safety features.
  • Trust in Thermaltake's brand reliability, ensuring long-lasting performance for your desktop.

What's in the box:

  • Thermaltake Toughpower GT 750W 80+ Gold Certified Fully Modular ATX 3.1 PSU (Black)
  • AC Power Cable
  • 4x Mounting Screw
  • 4x Cable Strap
  • User Manual
  • Thermaltake 5 Year Limited Warranty
