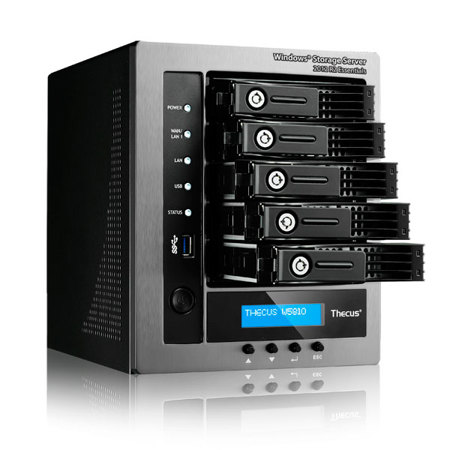

Thecus W5810 5-Bay SMB Tower NAS, Intel Celeron J1900 2GHz, 4GB RAM

Thecus W5810 5-Bay SMB Tower NAS, Intel Celeron J1900 2GHz, 4GB RAM

SKU: THW5810
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Thecus W5810 Specifications

  • Processor

    Intel Celeron J1900 Quad-Core SoC

  • System Memory

    4GB DDR3

  • Memory expandable up to

    8GBMemory Compatibility List

  • Embedded Boot Drive

    60GB SSD

  • Drive Bays

    5

  • Form Factors Supported

    2.5" / 3.5"

  • LAN Interface

    RJ-45x2: 10/100/1000 BASE-TX Auto MDI/MDI-X
    WOL supported

  • USB Interface

    USB 2.0 host port x2 (back x2)
    USB 3.0 host port x3 (front x1, back x2)

  • LCM Module

    LCM display
    4 buttons (ENTER, ESC, UP, DOWN)

  • HDMI Output

    HDMI port (back x1)

  • Audio

    Line output (back x1)

  • Disk Interface

    5 x SATA for internal

  • Power Supply

    200W Power Supply

  • System Clock

    Battery-backed up system clock

  • Power Management

    Auto power on after shutdown due to power loss

  • Buzzer

    Adjustable frequency alarm

  • Buttons

    Power button
    LCM button

  • Environment

    Temperature: 0deg. C to 40deg. C (Operation), -40deg. C to 70deg. C (Non-operation)
    Humidity: 0 - 80 % R.H. (Non-condensing)

  • Chassis

    Tower Metal Chassis

  • File System

    Native NTFS support, FAT32, EFS, ReFS

  • Disk Management

    Data Deduplication
    Storage Spaces:
    Create pools of storage using industry standard hard disk drives; Enables data redundancy with mirroring or parity; NTFS Online Scan and Repair (CHKDSK) Intelligently repairs unexpected corrupted data

  • Network Support

    Protocols : IPV6 / Multiple NICs / DNS / DHCP & WINS
    Support for multiple subnets / Multiple IP addresses

  • File and Block Storage Protocol Support

    File : SMB (1.0, 2.0, 2.1, 3.0, 3.01), NFS (v2, v3, v4.1)
    Block : iSCSI Target Server, iSCSI, SATA, and USB

  • Directory Services / User Management

    Seamless Active Directory integration with any existing Active Directory Domain
    Authentication and authorization
    Domain Controller, Certificate Services, Federation Services, Rights Management

  • Windows Client Integration

    Agent deployed on client, one click connection to NAS appliance (via Launch Pad)

  • Performance

    NIC Teaming: Aggregates bandwidth of multiple NICs
    SMB Multi-channel: Multiple transport sessions in a single NIC

  • Secure Remote Access

    Secure Remote Desktop Services with Encryption and Authentication
    Remote file access via FTP/FTPS
    Remote Web Access via HTTPS

  • Licensing

    Client support for up to 50 users or devices
    No Windows Server Client Access Licenses ( CALs) required
    Single processor socket / Up to 4GB of memory
    P2P connectivity via Orbweb (Ultimate edition)

  • Printer Server Support / FAX and Scan

    Local printer connection: Full Windows print services support
    Distributed Scan Server: Print Server and Document Services

  • Health Reporting / Notifications

    Integrated health monitoring and reporting
    Send health report to chosen email address on a customizable schedule

  • Media Pack for Streaming

    Stream music, videos, and pictures with the included Windows Server Essentials Media Pack

  • Global Language Pack

    36 Interfaces Available

  • Dimensions (H x W x D)

    9.06 x 7.48 x 9.45" (23.01 x 19.00 x 24.00cm)

  • Weight

    1.58lbs (0.72kg)

  • UPC Code

    884956004325

About Thecus W5810

Enhanced Boot Drive: Embedded SSD
To ensure the best performance possible, each WSS 2012 R2 Essentials copy is pre-installed on an embedded solid state drive. These boot drives are independent from the drive bays and allow for seamless setup and integration.

• Top Storage for 1-50 Employee Business
• Office 365 & Microsoft Azure: Cloud Service Integration
• Active Directory Domain Services: Scalable, Secure User Management
• Data Deduplication: Performance Optimization
• Enhanced Boot Drive: Embedded SSD
• Windows License Included
• Intel Celeron J1900 Quad-Core Processor
• 4GB DDR3 RAM

Windows Storage Server 2012 R2 Essentials
Windows Storage Server 2012 R2 Essentials is the latest version of Windows Storage Server that is designed for small businesses that want to leverage cloud services in a NAS appliance. It enables cross-premise functionality, providing small businesses with robust on-premises solution for file and print, client backup and restore, secure remote access and identity management services, combined with optional off-premise services supported by Microsoft.

Built-in HDMI Output
Turn your NAS into the ultimate multimedia hub! An inbuilt HDMI output allows you to connect your NAS directly to your TV for media streaming and easy device management.

USB 3.0 Connectivity
The next generation of connectivity is here with speeds 10x faster than USB 2.0. Whether connecting digital cameras and smart phones, backing up large external hard drives or extending the capacity of your NAS, USB 3.0 will make sure it's done in no time at up to 5 Gbit/s. Backwards compatibility adds the connectivity of a world full of USB 2.0 and USB 1.1 devices to get the best combination of speed and universal access.

P2P Connectivity
Pre-installed with the Ultimate Package from Orbweb, users will be able to easily transform their Windows NAS into their own personal cloud without network configuration. Enjoy an always accessible cloud experience, while keeping your data in your hands.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Thecus W5810 5-Bay SMB Tower NAS
  • Thecus 2 Year Limited Warranty
