Tripp Lite B156-004-HD-V2 4-Port 4K UHD 60Hz DisplayPort to HDMI MST Hub

From digital signage in educational institutions and religious centers to dynamic presentations in conference rooms and trade shows, the B156-004-HD-V2 4-Port 4K UHD 60Hz DisplayPort to HDMI MST Hub is your reliable solution for high-quality video display. This advanced hub allows you to connect up to four HDMI monitors to the DisplayPort output on your computer, offering the versatility to display identical images on all monitors, extend the desktop across them, or combine all four into one large monitor in video wall mode.

Designed for efficiency and compatibility, the B156-004-HD-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a, adapting to the feature set of your equipment. It supports high-definition video resolutions up to 1920 x 1080 per monitor, and in video wall mode, it supports expanded resolutions such as 4K @ 60Hz (3840 x 2160) in a 2 x 2 monitor configuration or 7680 x 1080 in a vertical 4 x 1 configuration.

This durable MST hub also supports HDCP, EDID, DDC, and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD, and 7.1-channel surround sound audio, ensuring a rich and immersive audio-visual experience. It is compatible with all operating systems, and its plug-and-play convenience eliminates the need for software or drivers.

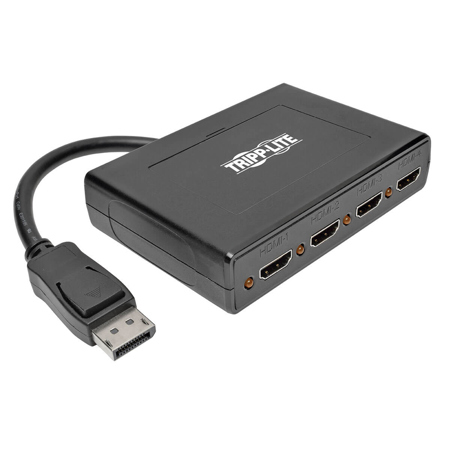

The B156-004-HD-V2 features a built-in six-inch cable for direct connection to a DisplayPort source, and LED indicators to signal when the monitors are receiving a signal. It complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Please note, the system requirements include a computer with a DisplayPort 1.2-compatible graphics card (e.g., AMD Radeon with AMD Eyefinity) for video wall mode. It is backward compatible with most DisplayPort 1.1a equipment running current graphics drivers, with the feature set limited to that of your equipment. Compatibility with older graphics cards is not guaranteed. Mac OS X does not support MST for NVIDIA and Intel Graphics Processor Units, limiting video display on connected monitors to mirror mode. The maximum supported video resolutions and number of monitors depend on your graphics card. Check graphics card specifications to determine its capabilities.

In conclusion, the B156-004-HD-V2 4-Port 4K UHD 60Hz DisplayPort to HDMI MST Hub is an advanced, reliable, and efficient solution for your high-resolution display needs.
