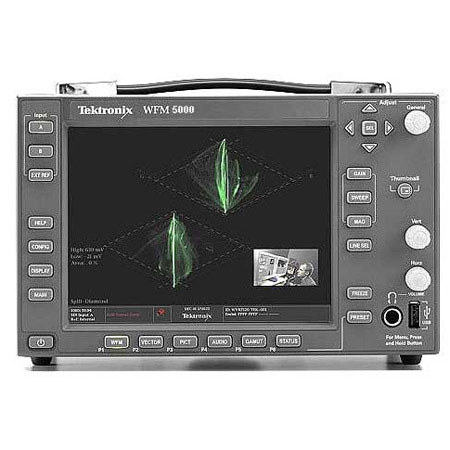

Tektronix WFM5000 HD/SD-SDI Compact Waveform Monitor, Passive Loop through BNC, Audio Support, USB & Headphone Ports

Confidence Monitoring of SDI Video and Uncompressed Digital Audio
Compliance Checking in Distribution and Broadcast
Content QA in Production and Post Production
Portable Monitoring on Camera and Field Production

2, only one active at a time
For WFM5000, the inputs auto-detect between HD and SD signals

Passive loop through BNC, 75 Ohm compensated

800 mVp-p, +/-10%

=25 dB from 1 MHz to 270 MHz, power on
=15 dB from 1 MHz to 270 MHz, power off15 dB from 1 MHz to 1.5 GHz, power on or off (Typical values)

For HD, equivalent to 10 m of type 8281 cable Loss

>50 dB to 300 MHz

Typically for SD to 250 m of type 8281 cable; for HD to 100 m of type 8281 cable

NTSC and PAL and tri-level sync

Passive loop through BNC, 75 Ohm compensated

20 kOhm, nominal

>40 dB to 6 MHz35 dB to 30 MHz

+/-50 ppm

At 1x gain, +/-0.5% of 700 mV full scale; at 5x gain, +/-0.2% of 700 mV full scale

1x, 5x, variable range 0.25x to >7.5x

SD: Luminance (Y) channel +/-0.5% to 5.75 MHz, Color Difference channels (Pb, Pr) +/-0.5% to 2.75 MHz
HD: Luminance (Y) channel +/-0.5% to 30 MHz, Color Difference channels (Pb, Pr) +/-0.5% to 15 MHz

+/-0.1%

+/-0.1%

0.056 dB steps at 30 dB scale from full scale to -20 dBFS
0.20 dB steps at 70 dB scale for signals above -20 dBFS

True peak, PPM type 1, PPM type 2, BBC PPM

Mute, clip, user-programmable silence, over

-0.5 dB (for analog), -0.2 dB (for digital) from 20 Hz to 20 kHz, 0 to -40 dBFS sine wave, Peak Ballistic mode

1 set of 2 channels, 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz, 24 bit
BNC, 75 Ohm terminated, unbalanced, 0.2 V to 2 Vp-p
Return Loss: >30 dB relative to 75 Ohm from 0.1 to 6 MHz

12-15 V DC nominal
10.75-18 V DC min-max operating

XLR 4-pin male connector
Pin 1 = V(-)
Pin 4 = V(+)
Pin 2, 3 NC

22 W typical
30 W max

6 amps at 12 V

4 amp internal self-resetting fuse

13.20 x 21.33 x 13.97 cm / 5.19 x 8.39 x 5.5"

1.56 kg / 3.43 lbs
