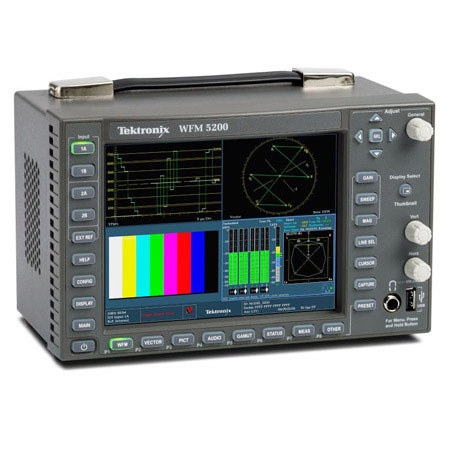

Tektronix WFM5200 Waveform Monitor
See all Tektronix items

Tektronix WFM5200 Waveform Monitor, Auto-detection of HD / SDI Signals, Variable Sweep Rates

SKU: TKWFM5200

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Tektronix WFM5200 Specifications

  • Inputs

    4 inputs
    Auto-detection between 3G, Dual Link, HD and SD signals (Option 3G required for 3G formats)

  • Input Type

    BNC, internally terminated 75 Ohms

  • Input Level

    800 mVpp, +/-10%

  • Input Equalization

    270 Mbps: Up to 215 m of type 1694A cable
    1.5 Gbps: Up to 200 m of type 1694A cable
    3 Gbps: Up to 130 m of type 1694A cable

  • Output

    SDI Switched Output
    Selectable, active input, or test signal

  • Input/Output Return Loss

    15 dB from 1 MHz to 1.5 GHz, power on or off
    10 dB from 1.5 GHz to 3 GHz, power on or off

  • Monitor Output

    Signal format (DVI-I output) - 1024 x 768, 60 Hz vertical rate

  • External Input Type

    Passive loop through BNC, 75 Ohm compensated

  • External Input Impedance

    20 kOhm, nominal (DC)

  • External Return Loss

    >40 dB to 6 MHz35 dB to 30 MHz

  • External Lock Range

    +/-50 ppm

  • Vertical Measurement Accuracy

    At 1x gain, +/-0.5% of 700 mV full scale; at 5x gain, +/-0.2% of 700 mV full scale

  • Gain

    1x, 5x, variable range 0.25x to >7.5x

  • Frequency Response

    SD:
    Luminance (Y) channel +/-0.5% to 5.75 MHz
    Color Difference channels (Pb, Pr) +/-0.5% to 2.75 MHz
    HD:
    Luminance (Y) channel +/-0.5% to 30 MHz
    Difference channels (Pb, Pr) +/-0.5% to 15 MHz

  • Sweep Timing Accuracy

    +/-0.1%

  • Sweep Linearity

    +/-0.1%

  • Level Meter Resolution

    0.056 dB steps at 30 dB scale from full scale to -20 dBFS
    0.20 dB steps at 70 dB scale for signals above -20 dBFS

  • Meter Ballistics

    True peak, PPM type 1, PPM type 2, BBC PPM, extended VU, Loudness

  • Defined / Programmable Level Detection

    Mute, clip, user-programmable silence, over

  • Level Meter Accuracy

    -0.5 dB (for analog), -0.2 dB (for digital) from 20 Hz to 20 kHz, 0 to -40 dBFS sine wave, Peak Ballistic mode

  • Power

    12 VDC In
    Power adapter accepts 100 to 240 VAC +/-10% 50/60 Hz

  • Voltage Range

    12 to 15 VDC nominal
    10.75 to 18 VDC min-max operating

  • Supply Connection

    XLR 4-pin male connector
    Pin 1 = V(-)
    Pin 4 = V(+)
    Pin 2, 3: NC

  • Power Consumption

    27 W typical
    35 W max

  • Surge

    10 A at 12 V

  • Fuse Rating

    4 A, internal self-resetting fuse

  • Dimensions (H x W x D)

    5.3 x 8.4 x 5.5" (13.3 x 21.3 x 14 cm)

  • Weight

    3.3 lbs (1.5 kg)

About Tektronix WFM5200

The Tektronix WFM5200 waveform monitor offers uncompromised monitoring quality with sharp CRT-like traces, SD/HD monitoring, a range of software options and an upgrade path to 3G-SDI. This portable video waveform monitor weighs less than 3 kg. and provides an ideal solution for basic video and audio monitoring needs in a convenient 3RU half-rack short depth form factor, suitable for space-constrained environments. The WFM5200 supports options to accept power from a 12 VDC source, a battery or a 100-240 VAC converter and shares the same accessories with the WFM4000 and 5000 models.

Tektronix WFM5200 Features

  • 4 Tile monitoring: Streamline the camera set up process overlaying the Waveform & Vector or Waveform & Lightning displays, plus Picture Thumbnail, in a single tile display
  • 4-SDI channel simultaneous monitoring (Option CAM): Quick-and-easy setup of multiple cameras during content acquisition
  • Audio Loudness monitoring / measurement capabilities (Option LOUD + Option AUD): Monitor the loudness changes between programs and commercials ATSC A85 and ITU 1770/1771 Recommendations
  • Advanced color gamut displays (Spearhead and Luma Qualified Vector - LQV displays) which work in conjunction with Diamond gamut display (Option PROD): Provides the most comprehensive color gamut monitoring tool for precise color gamut adjustments
  • Multi-rate Color Bar and Pathological Signal Generator (Option GEN): Provides engineers with a simple signal source for quick signal path verification during system and/or equipment setup and troubleshooting
  • 16-channel embedded AES audio monitoring (Option AUD): Monitor levels on 16 channels simultaneously
  • Allows you to perform basic video and audio monitoring of SD / HD signals with sharp CRT like traces
  • Auto-detection of HD / SDI signals
  • 4 SDI inputs with multi-format and multi-standard support
  • Dual link video formats supported 4:2:2, 4:4:4, alpha channel, 10 bit and 12 bit
  • High-brightness display with LED backlight, ideal for indoor and outdoor usage
  • Intuitive menu structure and context-sensitive help
  • 4-tile display
  • Overlays the waveform and vector or waveform and lighting displays with picture thumbnails
  • TandemVu display allows precise luma and chroma adjustments
  • Full screen display mode maximizes display size for precise calibration
  • 32 instruments presets for quick access of regularly used configurations
  • Several sweep rates and easy control of vertical gain / horizontal magnification for easy measurements of video waveform parameters
  • Calibrates facility and interchannel timing via timing and lighting display
  • Measures external reference signals such as Black Burst or Tri-Level Sync
  • Black picture and frozen frame detection alerts the operator to an issue in the transmission chain
  • Extensive alarms, status reporting and error logging for over 10,000 events, simplifying the task of error correction
  • Voltage and timing cursor ensures precise measurement of video signals
  • User-definable safe area graticules and AFD graticule facilitate editing and format conversion tasks
