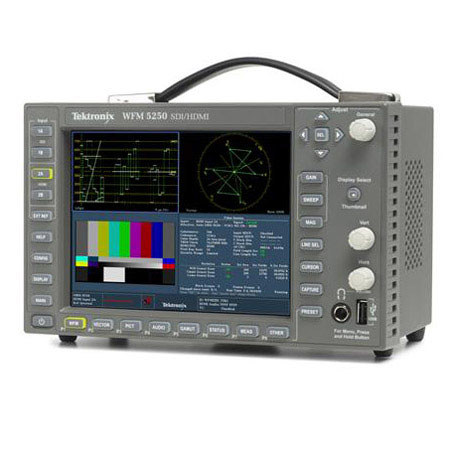

Tektronix WFM5250 SDI/HDMI Waveform Monitor, SD/HD/Dual Link/3G/HDMI
See all Tektronix items

Tektronix WFM5250 SDI/HDMI Waveform Monitor, SD/HD/Dual Link/3G/HDMI

SKU: TKWFM5250

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

John L : Does this model come with any options? If not, are options purchased directly from Tektronix?ANDREW R : From the product overview: "The WFM5250 supports options to accept power from a 12 VDC source, a battery or a 100-240 VAC converter and shares the same accessories with the 5200 series models."

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Tektronix WFM5250 Specifications

  • External DC Input Impedance

    20 kOhm, nominal

  • Return Loss (Inputs and Outputs)

    >15 dB from 1 MHz to 1.5 GHz, power on or off10 dB from 1.5 GHz to 3 GHz, power on or off

  • External Sync Formats

    NTSC and PAL and tri-level sync

  • Input Equalization

    270 Mb/s: Up to 215 m of type 1694A cable
    1.5 Gb/s: Up to 200 m of type 1694A cable
    3 Gb/s: Up to 130 m of type 1694A cable

  • Input Level

    800 mVp-p, +/-10%

  • Monitor Output

    Signal Format (DVI-I Output) - 1024x768, 60 Hz vertical rate
    Picture display will be disabled while monitoring the HDCP encrypted video signal through an HDMI input

  • Input Type

    BNC, internally terminated 75 Ohm

  • Video Interface: Output

    SDI Switched Output. Selectable, active input, or test signal

  • Video Interface: Inputs

    2 inputs
    Auto-detection between 3G, Dual Link, HD and SD signals (Option 3G required for 3G formats)

  • External Input Type

    Passive loop through BNC, 75 Ohm compensated

  • External Return Loss

    >40 dB to 6 MHz35 dB to 30 MHz

  • External Lock Range

    +/-50 ppm

  • HDMI Inputs

    2 inputs
    Auto-format-detection

  • HDMI Output

    HDMI switched output with HDCP

  • HDMI Connector type

    Type A receptacle

  • HDMI HDCP

    HDMI output is encrypted while receiving the HDCP encrypted content on a selected input
    The picture display and the thumb nail display on the DVI output will be disabled while receiving the HDCP encrypted content on a selected input.

  • Vertical Measurement Accuracy

    At 1x gain, +/-0.5% of 700 mV full scale; at 5x gain, +/-0.2% of 700 mV full scale

  • Gain

    1x, 5x, variable range 0.25x to >7.5x

  • Frequency Response

    SD: Luminance (Y) channel +/-0.5% to 5.75 MHz
    Color Difference channels (Pb, Pr) +/-0.5% to 2.75 MHz
    HD: Luminance (Y) channel +/-0.5% to 30 MHz
    Difference channels (Pb, Pr) +/-0.5% to 15 MHz

  • Sweep Timing Accuracy

    +/-0.1%

  • Sweep Linearity

    +/-0.1%

  • Level Meter Resolution

    0.056 dB steps at 30 dB scale from full scale to -20 dBFS
    0.20 dB steps at 70 dB scale for signals above -20 dBFS

  • Meter Ballistics

    True peak, PPM type 1, PPM type 2, BBC PPM, Loudness

  • Defined/Programmable Level Detection

    Mute, clip, user-programmable silence, over

  • Level Meter Accuracy

    -0.5 dB (for analog), -0.2 dB (for digital) from 20 Hz to 20 kHz, 0 to -40 dBFS sine wave, Peak Ballistic mode

  • Power

    12 V DC In
    Power adapter accepts 100 to 240 V AC +/-10% 50/60 Hz

  • Voltage Range

    12 to 15 V DC nominal
    10.75 to 18 V DC min-max operating

  • Supply Connection

    XLR 4-pin male connector
    Pin 1 = V(-)
    Pin 4 = V(+)
    Pin 2, 3: NC

  • Power Consumption

    27 W typical
    35 W max

  • Surge

    10 A at 12 V

  • Fuse Rating

    4 A, internal self-resetting fuse

  • Transient, Over and Reverse Voltage

    Reverse- and over-voltage protected to +/-30 V DC
    The unit may power itself down in the presence of high transient voltages. This prevents damage to the unit and is not a fault

  • Dimension (H x W x D)

    133 x 213 x 140 mm / 5.23 x 8.38 x 5.51"

  • Weight

    1.5 kg / 3.30 lbs

About Tektronix WFM5250

The Tektronix WFM5250 Waveform Monitor offers uncompromised monitoring quality with sharp CRT-like traces, SDI (SD/HD) and HDMI monitoring, with a range of software options and an upgrade path to 3G-SDI.

This portable video waveform monitor weighs less than 3 kg and provides an ideal solution for basic video and audio monitoring needs in a convenient 3RU half-rack short depth form factor, suitable for space-constrained environments. The WFM5250 supports options to accept power from a 12 VDC source, a battery or a 100-240 VAC converter and shares the same accessories with the 5200 series models.

Tektronix WFM5250 Features

  • Two Serial Digital Inputs (SDI) and two High Definition Multimedia Interface (HDMI) inputs with High-bandwidth Digital Content Protection (HDCP)
  • WFM5250 comes standard with auto-detection of 3G/HD/SD-SDI, Dual Link and HDMI video formats (3G-SDI requires Option 3G)
  • HDCP support on HDMI input and HDMI output for connectivity with consumer electronics products such as Set Top Box, DVD/Blu-ray disk player
  • Two-channel Simultaneous Monitoring (Option SIM)
  • 16-channel embedded AES/EBU audio simultaneous monitoring support with Multichannel Surround Sound 1 display and flexible Lissajous display (Option AUD)
  • Audio Loudness monitoring to ITU-R BS.1770-3/1771, EBU R 128 and ATSC A/85 recommendations (Option LOUD and AUD)
  • Tektronix-patented Diamond and Arrowhead Displays for Color Gamut Compliance Monitoring
  • New Tektronix-patented Spearhead Display and Luma Qualified Vector (LQV) Display facilitate precise color adjustment for post production applications (Option PROD)
  • Stereoscopic 3D Video Displays for Camera Alignment and Production/Post-production Applications (Option S3D)
  • Comprehensive Data Monitoring helps to quickly resolve difficult content quality and reliability issues (Option DATA)
  • Simultaneous CEA708/608 Closed Caption monitoring; Teletext and OP47 subtitle monitoring (Option DATA)
  • Detect and decode ANC data including AFD, WSS, Video Index, TSID, V-Chip, Broadcast Flag/CGMS-A, VITC, LTC and ANC TC
  • ARIB STD-B35/B37/B39, TR-B22 and TR-B23 support
  • ANC Data Inspector and SDI Data Analysis display helps troubleshoot ANC data and SDI data problems (Option DATA)
  • HDMI / HDCP status with Extended Display Identification Data (EDID), which is information that helps users troubleshoot connectivity problems
  • Simple 3G/HD/SD Color Bar and Pathological Signal Generator (Option GEN) for Troubleshooting Signal Paths and Equipment (Option 3G required for 3G-SDI test signal generation)
  • Variety of Monitoring Displays
  • Tektronix-patented Timing and Lightning displays makes facility and interchannel timing easy
  • Black Picture and Tektronix-patented Frozen Picture Detection
  • User-definable Safe Area Graticules and AFD Graticule facilitate editing and format conversion tasks
  • 3 RU height, Half-rack Width, Short-depth (5.5 in. or 14 cm) Instrument, Ideal for Space-constrained Environments
  • 4-pin XLR DC Power Input with AC Power Adapter for both AC/DC Operation
  • 32 instrument presets for quick recall of commonly used configurations tailored to colorists, editors, or operators
  • Front-panel USB port enables easy transfer of presets, screenshots and error log
